1999-2001 Chevy/GMC, 2500(non HD) RCD 6″ Lift Kit with Bilstein 5100 10-41899

Description
1999-2001 Chevy/GMC, 2500(non HD) RCD 6″ Lift Kit with Bilstein 5100 10-41899

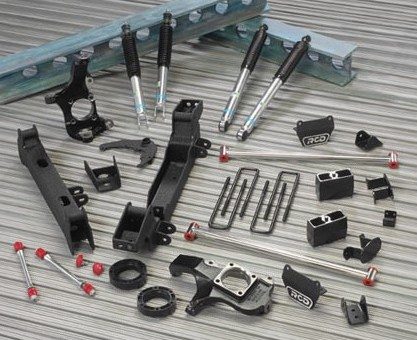

RCD 6″ Lift Kit with Bilstein 5100 and with Standard Torsion Bar Suspension 10-41899

Fits: Chevy / GMC 1500HD 8-lug 1999, 2000, 2001

2500(non HD) 1999, 2000, 2001

2500 Avalanche 1999, 2000, 2001

2500 Yukon 1999, 2000, 2001

2500 Suburban 1999, 2000, 2001

(Non Delphi Auto) (*1500HD 01-06 models only)

Model(s): 1500HD, 2500(Non HD) 2500 Avalanche, 2500 Yukon, 2500 Suburban

Drive Type: 4WD

Lift Height: 4.5″ – 6″

Available Shocks: F4-BE5-6135-T6 (front), F4-BE5-6134-T5 (Rear)

F4-BE5-6135-T6 Ext: 21.45″ and Coll: 13.51″
F4-BE5-6134-T5 Ext: 29″ and Coll: 17.74″

by RCD Race Car Dynamics

PLEASE NOTE

• WARNING: DO NOT USE WHEEL SPACERS.
• Works on vehicles manufactured after 8/2000 with large tie rod ends.
• Vehicles manufactured before 8/01/00 have small out tie rod ends and need
  to be updated with GM# 12471649 or equivalent. Call for details.
• Fits new body style 8-lug only, does not fit “HD” models
•  No special drive shaft is required. Stock drive shafts are retained.
• Vehicles equipped with a 2-piece rear drive shaft may require #20-68747 Drive
• Shaft Support Drop Down Bracket for the factory carrier bearing.
• Some models may require an exhaust modification to clear front drive shaft.
• Clears 33” x 12.50” tires on 16” x 8” wheels, 35” x 12.50” tires with minor
  bumper trimming.
• Requires wheels with a maximum of 4.5” of back spacing.
• Front-end realignment is necessary.
• Speedometer recalibration is necessary if bigger tires (10% more than stock
  diameter) are installed.
