Fabtech 6″ RTS Lift Kit System for 2011-2019 Chevrolet Silverado 2WD/4WD with Dirt Logic Shocks

Fabtech 6 RTS Lift Kit System for 2011-2019 GMC Sierra 2WD-4WD with Dirt Logic Shocks k1046dl
Fabtech 6 RTS Lift Kit System for 2011-2019 GMC Sierra 2WD-4WD with Dirt Logic Shocks k1046dl

Description

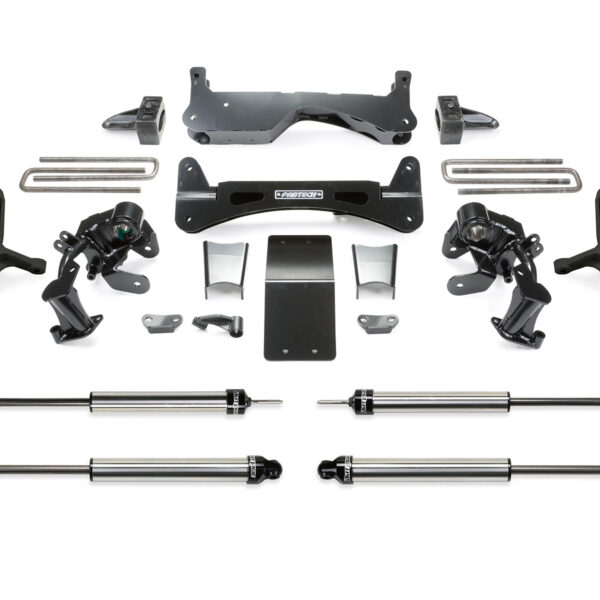

Fabtech 6″ RTS Lift Kit System for 2011-2019 Chevrolet Silverado 2WD/4WD with Dirt Logic Shocks

Fabtech 6″ RTS Lift Kit System for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Chevrolet Silverado 2WD/4WD with Dirt Logic Shocks

Part: K1046DL

Fabtech’s cutting edge RTS® system has now been developed for the all new GM HD platform. The 6” RTS® utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Front Differential Skid Plate
  • Ductile Iron Steering Knuckles
  • RTS® Torsion Bar Brackets
  • Billet Sway Bar End Links
  • Rear Block & U-bolt Kit

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS21092 COMPONENT BOX 1
1 FTS21093 COMPONENT BOX 2
1 FTS21094 COMPONENT BOX 3
2 FTS810882 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810892 REAR DIRT LOGIC 2.25 NON RESI

TIRES & WHEELS

  • Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
  • Tire Size – 35/13.50R20 Wheel Size – 20×10 w/ 5 3/4in BS w/minor trimming
  • Tire Size – 355/65R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming
  • Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5 3/4in BS w/minor trimming

INCLUDED SHOCKS:

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

Additional information

Weight 100 lbs
Dimensions 30 × 12 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$3,822.72

Only 5 left in stock

SKU: K1046DL Category: Brand:
