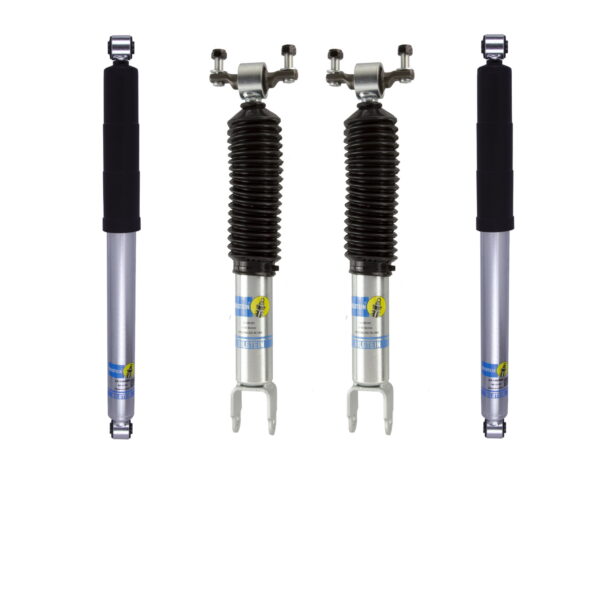

Bilstein 5100 0-1.5″ Front, Rear Shocks 2011-2025 GMC Sierra 2500HD
Original price was: $440.00.$416.73Current price is: $416.73.
In stock
Bilstein B8 5100 Front and Rear Shocks for 2011-2025 Chevy GMC Sierra 2500HD 4WD and 2WD
Designed for heavy-duty daily drivers, work trucks, and leveled HD builds.
Bilstein B8 5100 shocks are a direct-fit performance upgrade for the Chevy and GMC Sierra 2500HD, delivering improved control, stability, and ride consistency on pavement and off-road.
These shocks are ideal for trucks running a mild front leveling setup using torsion keys and a stock or slightly lifted rear suspension.
Target Vehicle Setup
- 2011-2025 Chevy Silverado 2500HD
- 2011-2025 GMC Sierra 2500HD
- 4WD and 2WD models
- Compatible with torsion key front leveling kits
Bilstein 5100 Series Overview
Bilstein B8 5100 shocks feature a high-pressure monotube design with a digressive piston that automatically adapts to changing road and load conditions. Each shock is application-specific valved to maintain ride comfort while improving body control, steering response, and durability under heavy use.
- Monotube gas pressure design for fade-free performance
- Velocity-sensitive digressive piston
- Zinc-plated finish for corrosion resistance
- Non-adjustable damping, factory-tuned by Bilstein
Front Shock Specifications
- Series: Bilstein B8 5100
- Collapsed Length: 14.06 in (357.0 mm)
- Extended Length: 18.41 in (467.5 mm)
- Travel: 4.37 in
- Upper Mount: Crossbar
- Lower Mount: Clevis
- Body Diameter: 2.0 in
- Piston Diameter: 46 mm
- Shaft Diameter: 14 mm
- Finish: Zinc plated
- Boot: Black bellows
- Part Number: 24-253161 (replaces 24-196451)
Front Fitment Note: Designed for trucks using torsion key leveling. These shocks do not create lift on their own.
Need torsion keys?

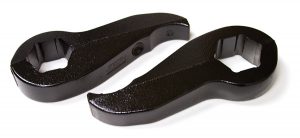

Zone Offroad 2 inch Torsion Bar Keys Leveling Kit
Rear Shock Specifications
- Series: Bilstein B8 5100
- Collapsed Length: 16.42 in (417.0 mm)
- Extended Length: 26.79 in (680.5 mm)
- Travel: 10.37 in
- Upper Mount: Eye 14.4 mm
- Lower Mount: Eye 14.4 mm
- Body Diameter: 2.0 in
- Piston Diameter: 46 mm
- Shaft Diameter: 14 mm
- Finish: Zinc plated
- Boot: Black straight
- Part Number: 24-196468
What Is Included
- 2 Front Bilstein B8 5100 shocks
- 2 Rear Bilstein B8 5100 shocks
Important: Includes all four shocks. These shocks do not include springs, torsion keys, or rear lift components.
Frequently Asked Questions
Do Bilstein 5100 shocks add lift?
No. These shocks are designed to support existing lift or leveling components such as torsion keys. They do not create lift on their own.
Are these shocks adjustable?
No. Damping is factory-tuned by Bilstein for the Sierra 2500HD platform.
Can I run these with a stock rear suspension?
Yes. Rear shocks are compatible with stock ride height or mild rear lift setups.
Are these good for towing and hauling?
Yes. The monotube design and digressive valving provide improved stability under load compared to factory shocks.
