SuperLift 2.5″ Front Leveling Kit for Chevrolet/GMC 2001-2010 2500, 2500HD and 3500 4WD

SuperLift 2.5″ Front Leveling Kit for Chevrolet/GMC 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 2500, 2500HD and 3500 4WD

Part: 40010

Features & Benefits

• Provides 1.5″ to 2.5″ of adjustable lift height
• Allows the use of plus-size wheels / tires
• Easy installation and removal
• Ideal for restoring height lost from heavy front bumper / winch combos
• Enhances appearance by leveling the stance of the vehicle
• 10.9 grade metric hardware included when needed
• Lifetime Warranty
• Satisfaction Guarantee

Tire and Wheel Size(s) Information

Recommended Maximum Tire Diameter: 33″

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing them.

· Actual dimensions of a given tire size can vary considerably from one brand to another

• Manufacturers’ wheel offset and backspacing measurement points are not always consistent.
• Backspacing greatly impacts tire-to-fender clearance when turning
• Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent

Average Install Time

2-3 Hours

Installation Difficulty Rating (1-5)

2

NOTE: Will NOT fit models with Purple marked factory torsion bars.

Installation Notes

Special puller tool is recommended to load / unload torsion bars.

Installation Instructions

• 17729-40010.pdf

Product Overview

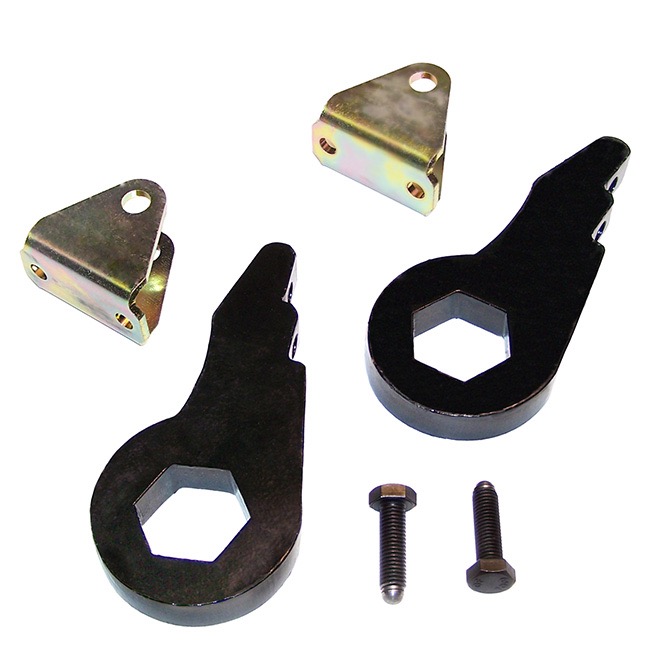

Torsion bar suspensions inherently have some amount of height adjustability. Torsion bar keys have hex-cut (or splined) holes that mate to the rear ends of the torsion bars. As the keys are loaded, they apply torsional load to the bars which, in turn, lift the vehicle. Superlift’s Level-It keys are indexed differently to increase bar rotation and lift.

When necessary, new hardware is supplied to prevent bar over-extension. Extensions for shock absorbers and compression travel bump-stops are also included when required.
