Cognito 10-12 Inch Front Suspension Lift Kit For 01-07 Silverado/Sierra 1500HD-3500HD 2WD 01-13 2500 2WD SUVS Sae Thread OE Brake Lines

Cognito 10-12 Inch Front Suspension Lift Kit For 01-07 Silverado/Sierra 1500HD-3500HD 2WD 01-13 2500 2WD SUVS Sae Thread OE Brake Lines
Cognito 10-12 Inch Front Suspension Lift Kit For 01-07 Silverado/Sierra 1500HD-3500HD 2WD 01-13 2500 2WD SUVS Sae Thread OE Brake Lines

Description
Cognito 10-12 Inch Front Suspension Lift Kit For 01-07 Silverado/Sierra 1500HD-3500HD 2WD 01-13 2500 2WD SUVS Sae Thread OE Brake Lines

Cognito 10-12 Inch Front Suspension Lift Kit For 01-07 Silverado/Sierra 1500HD-3500HD 2WD 01-13 2500 2WD SUVS Sae Thread OE Brake Lines

Part: 110-K0546

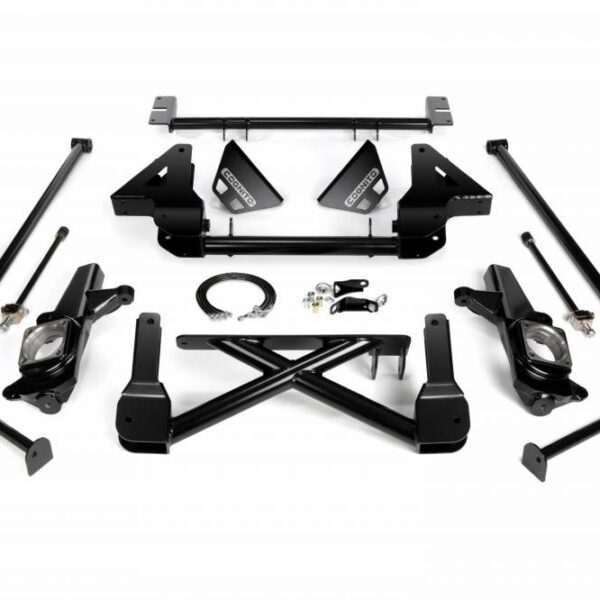

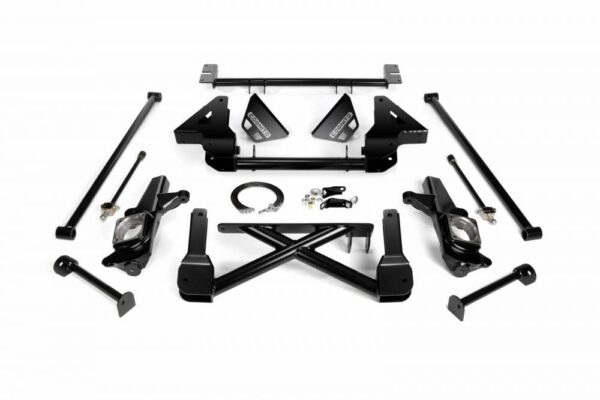

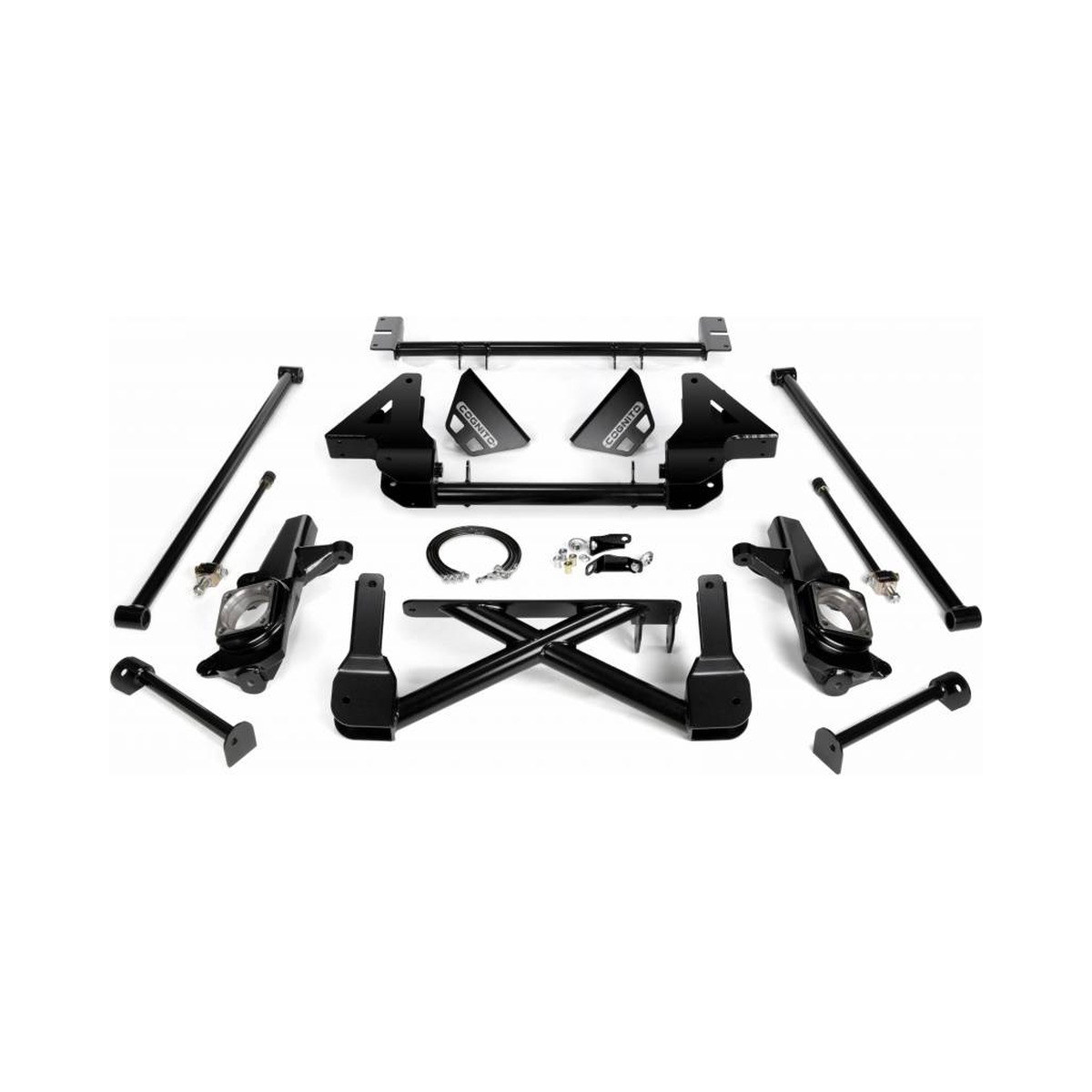

Cognito 10-12 Inch Front Suspension Lift Kit for 01-07 Chevrolet and GMC 1500HD/2500/2500HD/3500/3500HD 2WD trucks, 01-13 2500 2WD SUVs. This kit drops the front differential a full 10 inch, and when set to the 10 Inch height the vehicle will retain the stock (original) tie rod angles.

When adjusted to the 12 Inch height there will be a slight angle increase at the tie rods. Front track width is increased by 1.5 Inch per side in order to retain proper caster settings and functional electronic stabilizing control (if StabiliTrak equipped).

This kit also includes our patented Cognito Pitman and Idler Arm Support Kit-a must-have upgrade that corrects a design flaw in Chevy and GMC truck steering systems. Sway bar end links and all required mounting hardware are included, and all steel bracketry is finished in semi-gloss black powder coating.

Extended stainless steel braided SAE thread brake lines (OE single crimp) are required and included with this kit. This kit is not a complete lift package, so it does not include shocks or rear suspension lift components.

Includes:

  • Cognito Pitman and Idler Arm Support Kit
  • Sway bar end links
  • Extended stainless steel braided SAE thread brake lines (OE single crimp)
  • All required mounting hardware

Details:

  • 10-12 Inch Front Suspension Lift Kit for 01-07 GM 1500HD/2500/2500HD/3500/3500HD 2WD Trucks and 01-13 2500 2WD SUVs (SAE thread OE brake lines)
  • Color: Semi-Gloss Black
  • Finish: Powdercoat
  • Drive: 2WD
  • Location: Front
  • Lift Height: 10-12 Inch
  • Warranty: Limited Lifetime Warranty
  • Fits: 01-07 GM 1500HD/2500/2500HD/3500/3500HD 2WD Trucks and 01-13 2500 2WD SUVs (SAE thread OE brake lines)

Notes:

  • This kit is not a complete lift package, so it does not include shocks or rear suspension lift components.

Additional information

Weight 100 lbs
Dimensions 40 × 15 × 10 in
