Zone Offroad 3″ Torsion Lift Kit 2011-2019 Chevy/GMC 2500HD/3500HD

Description
Zone Offroad 3″ Torsion Lift Kit 2011-2019 Chevy/GMC 2500HD/3500HD

Zone Offroad 3″ Torsion Keys Lift Kit 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Chevy/GMC 2500HD/3500HD

Part: C37N/C38N

Zone Offroad Products 2011-2019 Chevy 2500HD 3″ Adventure Series Lift System.

This new system uses the popular Zone Adventure Series boxed steel upper control arm design along with traditional torsion key technology in order to gain 3″ of lift. By using the new fabricated arms, equipped with factory style ball joints and rubber bushings, the system is able to maintain a better quality ride and suspension travel over standard “leveling kits”. In addition, a front differential drop is included to keep CV angles within the factory operating range.

Rear 2″ blocks bring the rear up to give a very slight tail high stance allowing the truck to be used as it was intended without having a saggy ride. Front and rear Nitro shocks come standard to round out this simple yet advanced suspension system.

Featured Technology & Benefits

• Heavy Duty Boxed Steel Upper Control Arms
• Factory style ball joints and rubber bushings
• Improved ride quality and suspension travel over standard “leveling kits”
• Front and Rear Nitro Gas shocks included
• Front differential drop included to correct CV shaft angles
• Nets a slightly tail high stance with included 2″ rear blocks
• Clear 35×12.50 tires on 18×9 & 20×9 wheels (6″ backspacing required)
• Available for both overload and non-overload equipped trucks
• UCAs utilize a replaceable ball joint that can be found at most local auto parts stores if ever needed
• Limited Lifetime Warranty
• Over 90% Made in the USA

Important Notes!

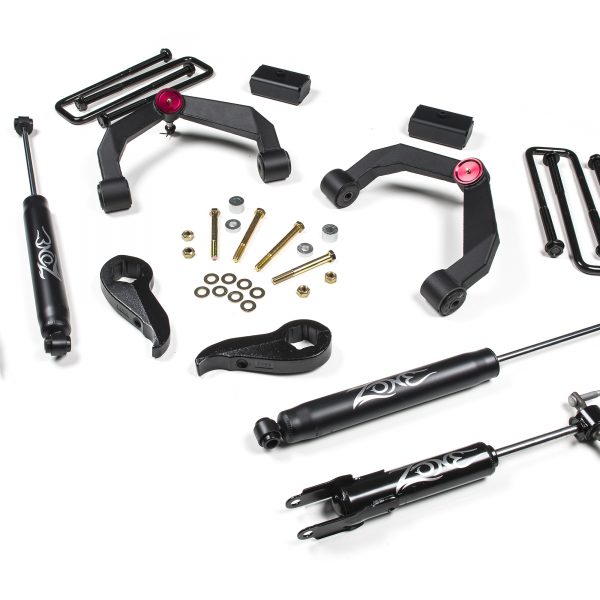

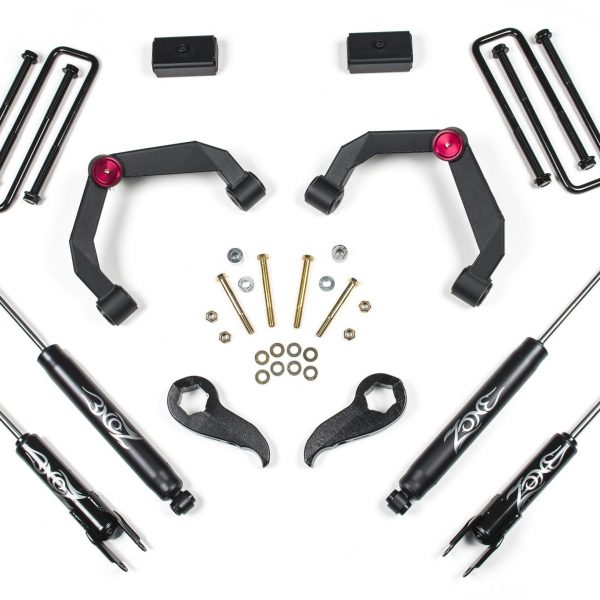

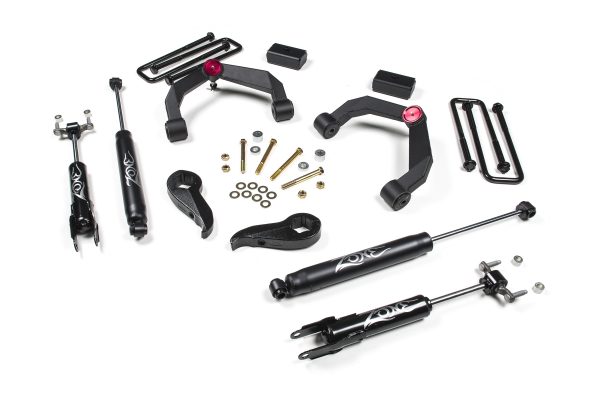

• *Kit images show upgraded Nitro (black) shocks*
• Minor trimming may be required, especially if a wheel backspace of less the specified is used
• Proper torsion bar unloading tool required for installation
• Not designed to work on dually models
• Available for models with and without top mounted rear overload springs – be sure to select correct kit below for your application.
• Optional steering stabilizers (3103/7103) only fit vehicles that came equipped with a steering stabilizer from the factory.

This product fits the following applications:

• 2011 Chevy 2500HD Pickup 4WD
• 2012 Chevy 2500HD Pickup 4WD
• 2013 Chevy 2500HD Pickup 4WD
• 2014 Chevy 2500HD Pickup 4WD
• 2015 Chevy 2500HD Pickup 4WD
• 2016 Chevy 2500HD Pickup 4WD
• 2017 Chevy 2500HD Pickup 4WD
• 2018 Chevy 2500HD Pickup 4WD
• 2019 Chevy 2500HD Pickup 4WD
• 2011 Chevy 3500HD Pickup 4WD
• 2012 Chevy 3500HD Pickup 4WD
• 2013 Chevy 3500HD Pickup 4WD
• 2014 Chevy 3500HD Pickup 4WD
• 2015 Chevy 3500HD Pickup 4WD
• 2016 Chevy 3500HD Pickup 4WD
• 2017 Chevy 3500HD Pickup 4WD
• 2018 Chevy 3500HD Pickup 4WD
• 2019 Chevy 3500HD Pickup 4WD
• 2011 GMC 2500HD Pickup 4WD
• 2012 GMC 2500HD Pickup 4WD
• 2013 GMC 2500HD Pickup 4WD
• 2014 GMC 2500HD Pickup 4WD
• 2015 GMC 2500HD Pickup 4WD
• 2016 GMC 2500HD Pickup 4WD
• 2017 GMC 2500HD Pickup 4WD
• 2018 GMC 2500HD Pickup 4WD
• 2019 GMC 2500HD Pickup 4WD
• 2011 GMC 3500HD Pickup 4WD
• 2012 GMC 3500HD Pickup 4WD
• 2013 GMC 3500HD Pickup 4WD
• 2014 GMC 3500HD Pickup 4WD
• 2015 GMC 3500HD Pickup 4WD
• 2016 GMC 3500HD Pickup 4WD
• 2017 GMC 3500HD Pickup 4WD
• 2018 GMC 3500HD Pickup 4WD
• 2019 GMC 3500HD Pickup 4WD

Quick Specs

• Front Lift Height: 3″
• Front Lift Method: Torsion Keys
• Rear Lift Height: 2″
• Rear Lift Method: Rear Block
• Install Time Hrs: 4-5
• Difficulty Level 1-5: 3
• Wheel Size: 17 x 9
• Back Spacing: 5″ – 5.5″
• Max Tire Size: 34 x 11.50
• Wheel Size: 18 x 9
• Back Spacing: 6″
• Max Tire Size: 35 x 12.50
• Wheel Size: 20 x 9
• Back Spacing: 6″
• Max Tire Size: 35 x 12.50
