Bilstein 5100 4-6″ Front 3-4″ Rear Lift Shocks +Stabilizer 2011-2018 Chevy/GMC Silverado/Sierra 3500HD

Sale!

Description
Bilstein 5100 4-6″ Front 3-4″ Rear Lift Shocks +Stabilizer 2011-2018 Chevy/GMC Silverado/Sierra 3500HD

Bilstein 5100 4-6″ Front and 3-4″ Rear Lift Shocks +Stabilizer for 2011, 2012, 2013, 2014, 2015, 2016, 2017б 2018 Chevy/GMC Silverado/Sierra 3500HD

Important Note: If your truck is 2016 and up year, then you might need this part

Front Shocks:

Notes:

  • Fits Vehicles With 4-6″ Front Lift
  • Stock mounting points only
  • Not compatible with lower control arm torsion bar relocation bracket



  • Series: 5100
  • Front Extended Length(in): 24.23
  • Front Collapsed Length(in): 15.98
  • Part Number: 24-218023

Rear Shocks:

  • Series: 5100
  • Rear Extended Length(in): 29.92
  • Rear Collapsed Length(in): 18.17
  • Part Number: 24-218030

Steering Stabilizer Shock:

  • Series: 5100
  • Extended Length(in):
  • Collapsed Length(in):
  • Part Number: 33-196619

Fitment: Bilstein 5100 4-6″ Front and 3-4″ Rear Lift Shocks +Stabilizer for 11-’18 Chevy/GMC Silverado/Sierra 3500HD

Included:

  • BIL24-218023 x2
  • BIL24-218030 x2
  • BIL33-196619 x1



  • Includes: set of 4 Shocks & One Steering Stabilizer – w/4-6″ Front Lift and w/3-4″ Rear Lift
  • Shock boots included with all shocks except in cases of special fitment.
  • Monotube gas charged for longevity, durability, and performance.
  • All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.
  • Bilstein’s Limited Lifetime manufacturer’s Warranty protects against defects and premature failure.

Due to their larger tires and a heightened stance, lifted vehicles place extra demands on a shock absorbers damping ability. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein’s superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.

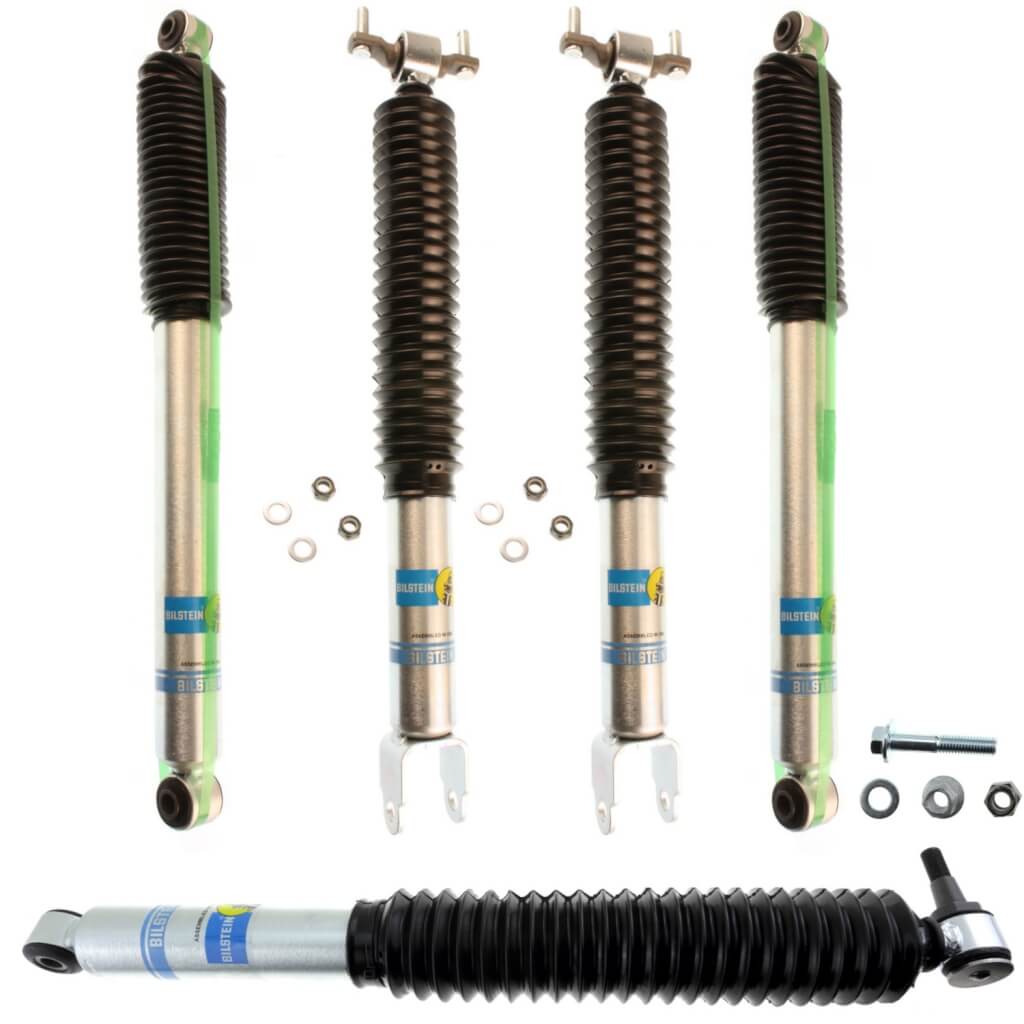

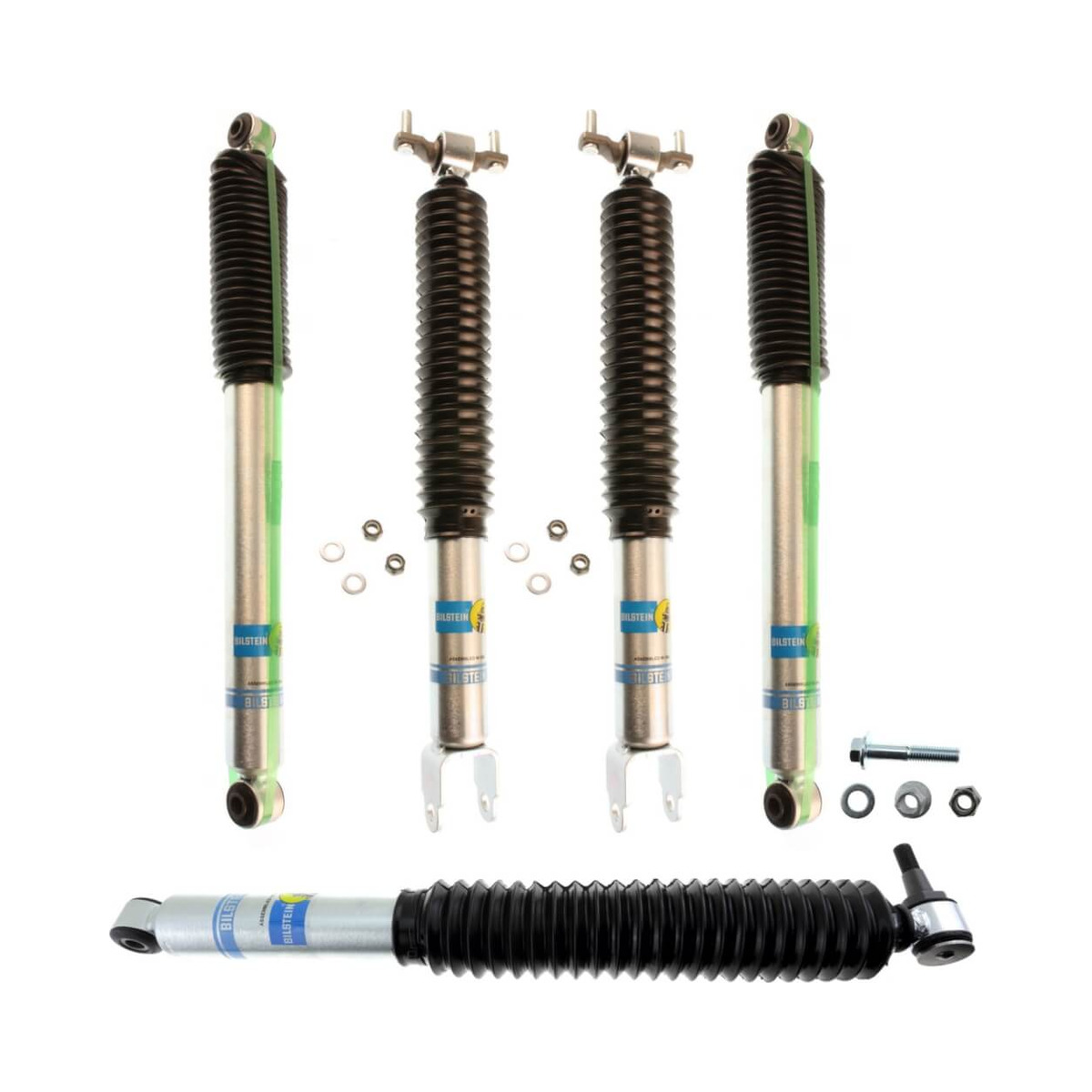

Includes Shocks exactly as pictured

Additional information

Weight 30 lbs
Dimensions 28 × 8 × 8 in
(1 customer review)

Original price was: $548.00.Current price is: $483.72.

In stock

SKU: 24-218023_24-218030_33-196619_n1 Category: Brand:
