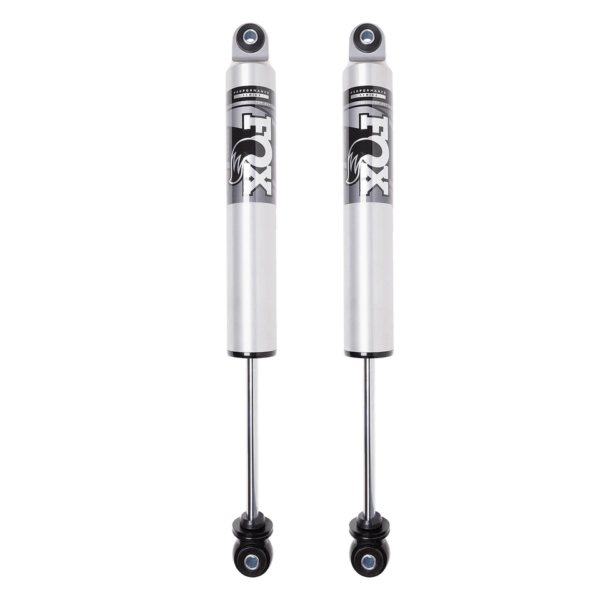

FOX 2.5 Performance Smooth Body HTO 1.5-2.5″ Rear Lift IFP Shocks for 2011-2024 GMC Sierra 3500HD

FOX 2.5 Performance Smooth Body HTO 1.5-2.5 Rear Lift IFP Shocks for 2011-2024 GMC Sierra 3500HD
FOX 2.5 Performance Smooth Body HTO 1.5-2.5 Rear Lift IFP Shocks for 2011-2024 GMC Sierra 3500HD

Description
FOX 2.5 Performance Smooth Body HTO 1.5-2.5″ Rear Lift IFP Shocks for 2011-2024 GMC Sierra 3500HD

FOX 2.5 Performance Smooth Body HTO 1.5-2.5″ Rear Lift IFP Shocks for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 GMC Sierra 3500HD

Part: 987-24-011

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

PART NUMBER 987-24-011
FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
TRAVEL 9.18
REAR LIFT HEIGHT 1.5-2.5
EXTENDED LENGTH 26.72
COMPRESSED LENGTH 17.54
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Lift: 1.5-2.5 inches

Additional information

Weight 15 lbs
Dimensions 10 × 8 × 8 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$659.90

In stock

SKU: 2x987-24-011_n2 Categories: , , , Brand:
