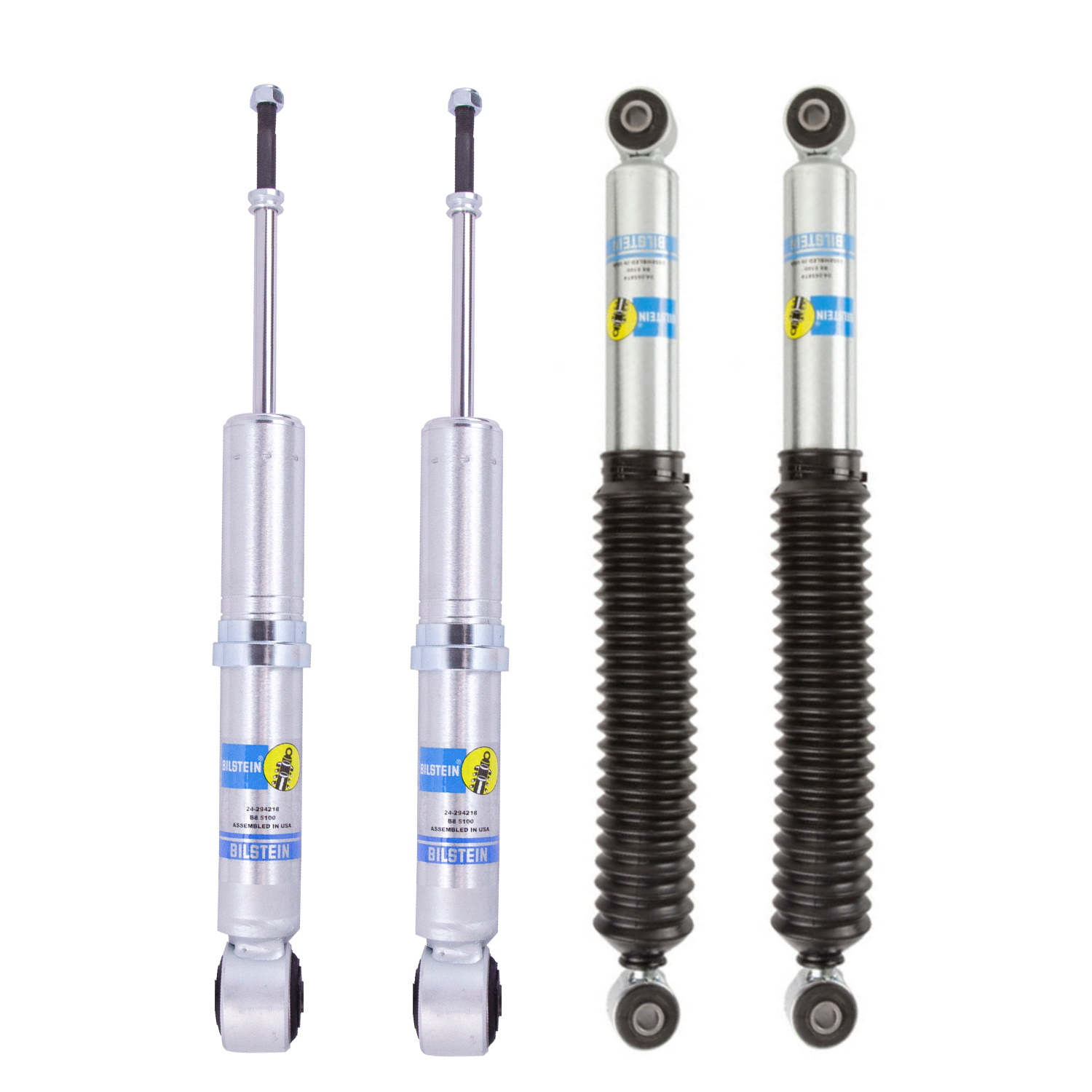

Bilstein B8 5100 0-2.5″ Front and Rear Lift Shocks for GMC Canyon 2015-2022 2WD/4WD

Sale!
Bilstein B8 5100 0-2.5 Front and Rear Lift Shocks for GMC Canyon 2015-2022 2WD-4WD
Bilstein B8 5100 0-2.5 Front and Rear Lift Shocks for GMC Canyon 2015-2022 2WD-4WD

Description
Bilstein B8 5100 0-2.5″ Front and Rear Lift Shocks for GMC Canyon 2015-2022 2WD/4WD

Bilstein B8 5100 0-2.5″ Front and Rear Lift Shocks for GMC Canyon 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 2WD/4WD

Part: 2×24-292702_2x24-265874

Includes 2 Front (0-2.5″) and 2 Rear (0-1″) Shocks

FRONT SHOCKS:

*DOES NOT COME WITH SPRING SEATS* OEM SPRING SEATS NEED TO BE REUSED

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Collapsed Length (IN): 14.76
Extended Length (IN): 19.45
Collapsed Length (MM): 375.0
Extended Length (MM): 494.0
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm

Notes:

-Front Lift Height: 0-2.6″

REAR SHOCKS:

Series: 5100

Rear Extended Length(in): 23.24

Rear Collapsed Length(in): 14.8

Part Number: 24-265874

Fitment: Bilstein 5100 0-1″ Rear Lift Shocks 15-’20 GMC Canyon 4WD
Includes 2 Shocks

Additional information

Weight 60 lbs
Dimensions 26.8 × 5.9 × 5.9 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
