Bilstein 5100 0-2.25″ Front & 0-1″ Rear Lift Shocks For 2002-2009 GMC Envoy

5 out of 5 based on 2 customer ratings
(2 customer reviews)

Original price was: $534.00.Current price is: $470.89.

In stock

SKU: 2x24-267014_2x24-267021_n1 Category:
Description

Bilstein 5100 0-2.25″ Front & 0-1″ Rear Lift Shocks For 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 GMC Envoy

Part: 2×24-267014_2x24-267021

Front:

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Suspension: Front: Coil Rear: Coil
Type: Nitrogen Gas Charged
Internal Design: Monotube
Adjustable: Yes
Rod Finish: Zinc Plated
Body Color: Silver
With Reservoir: No
Includes Boot: Yes
Quantity: Pair
Collapsed Length: (IN)11.26
Extended Length: (IN)16.41
Collapsed Length: (MM)286.1
Extended Length: (MM)416.9
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm


Features:

  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Practical Alternative To Coil Spring Spacers, With The Benefit Of BILSTEIN Monotube Technology
  • Adjustable Spring Perch For Vehicle Lift Up To 2.75 Inch
  • Increases Suspension Travel
  • Utilizes Vehicle’s Stock Front Coil Springs And OEM Mounting Hardware
  • Vehicle Specific Tuning
  • Limited Lifetime Warranty

Rear:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Suspension: Front: Coil Rear: Coil
Collapsed Length: (IN)14.63
Extended Length: (IN)23.3
Collapsed Length: (MM)371.5
Extended Length: (MM)591.7
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Type: Gas Charged
Internal Design: Monotube
Adjustable: No
Upper Mounting Style: Loop
Lower Mounting Style: Loop
Body Color: Silver
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Quantity: Pair



Features:
  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions
  • OEM Certified Mounting Hardware Allows For Easy Installation
  • Zinc Plated For Resistance Against Harsh Elements
  • Durable Vulcanized Neoprene Rubber Bushings
  • Limited Lifetime Warranty

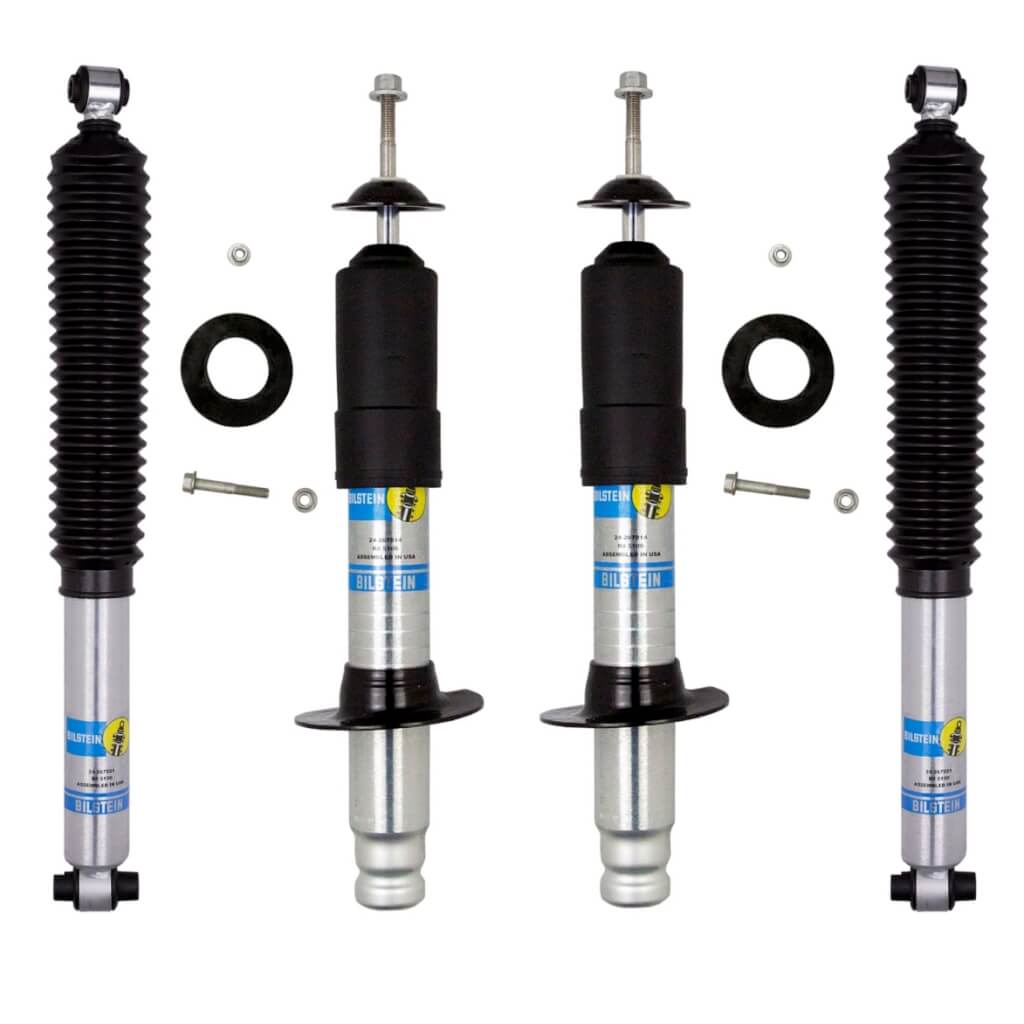

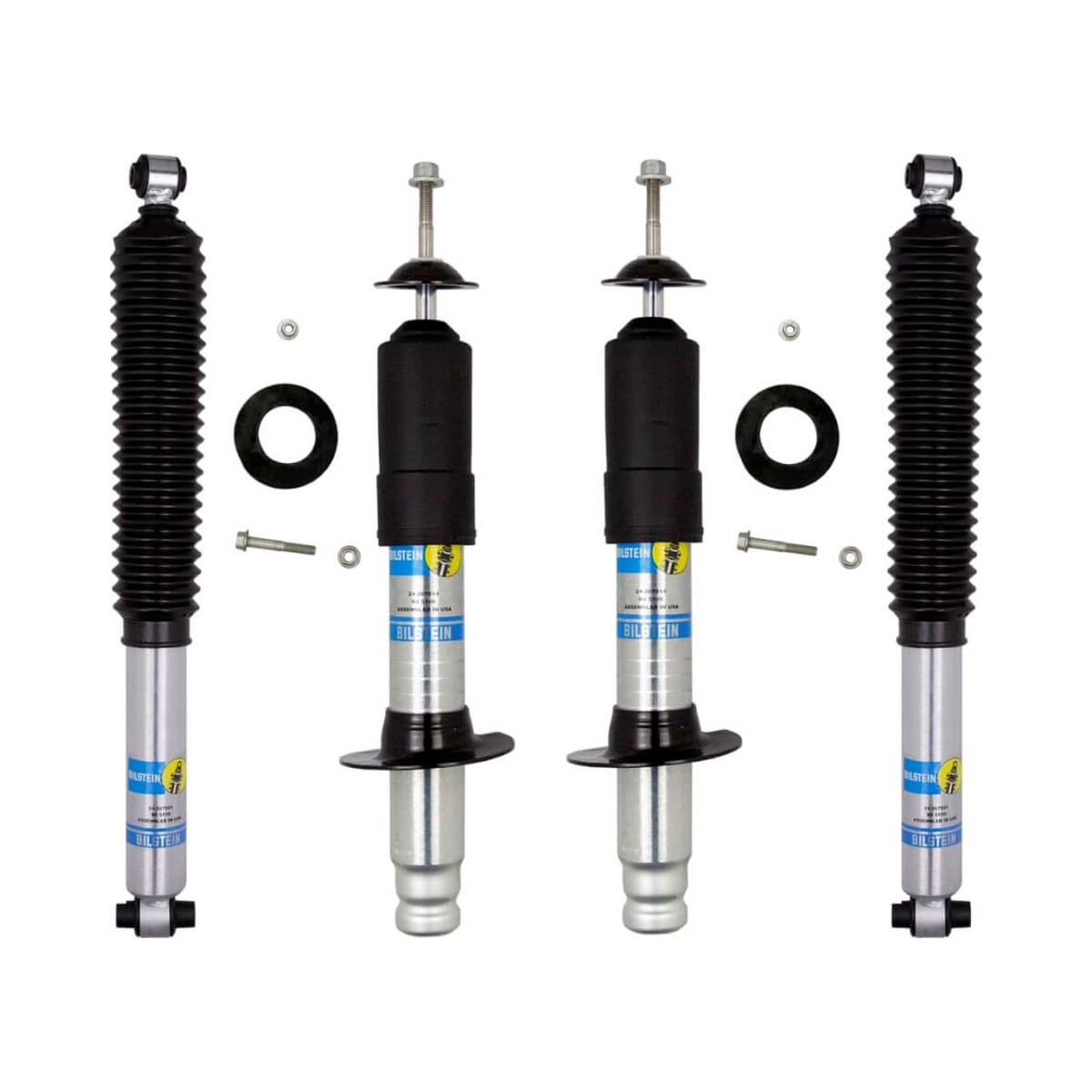

Includes Shocks exactly as pictured
