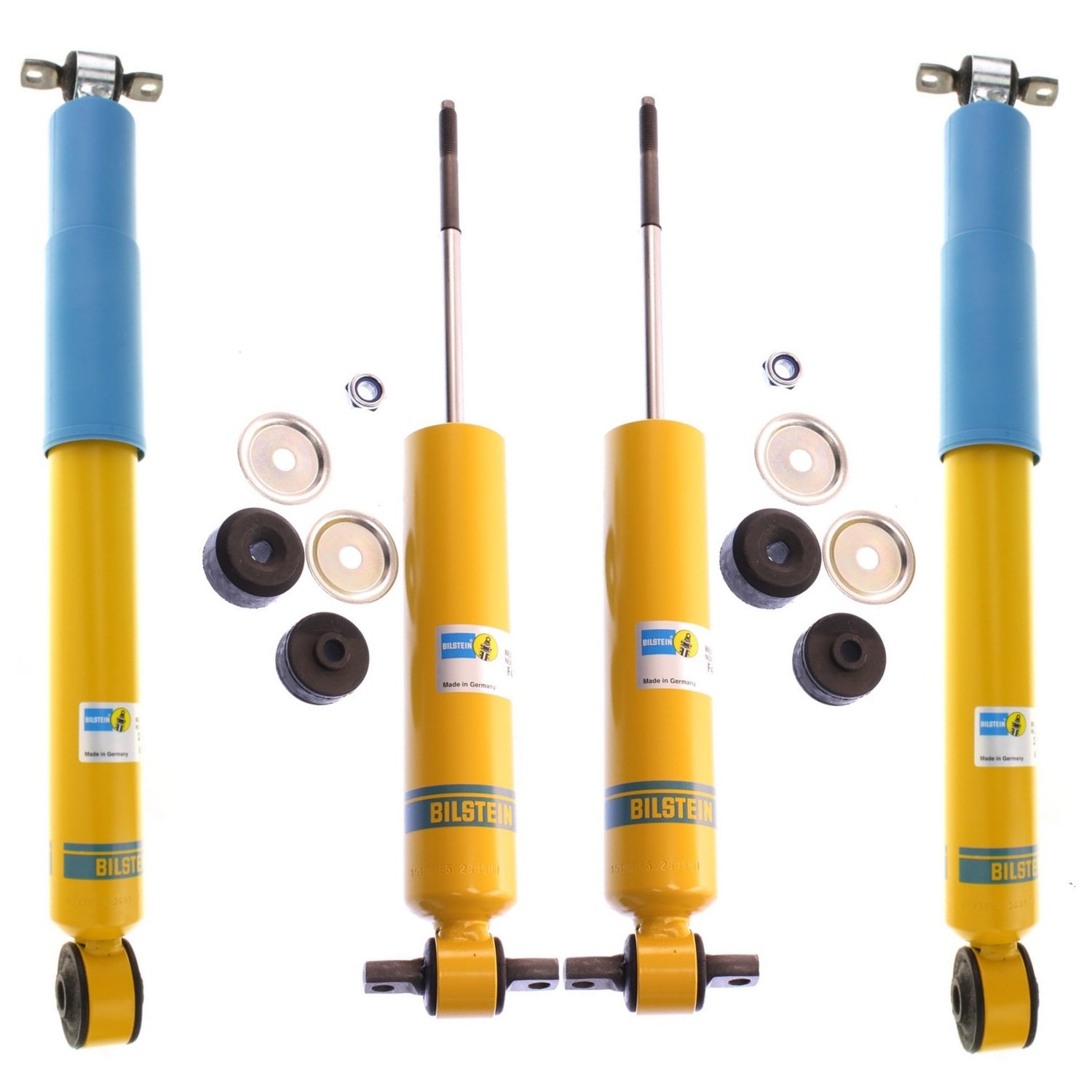

Bilstein 4600 Front and Rear shocks for 1996-2002 Chevrolet Express 1500

Description
Bilstein 4600 Front and Rear shocks for 1996-2002 Chevrolet Express 1500

Bilstein 4600 Front and Rear shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002 Chevrolet Express 1500

Part number: 24-025652_24-024815
Includes: 2 front shocks and 2 rear shocks.

Front

Notes: Over GVWR: 7,300lbs

Part number: 24-025652
Series: 4600
Extended length: 14.11 Inch
Compressed length: 9.61 Inch
Front Upper mounting: Stem
Front Lower mounting: Bar Pin
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield: No
Includes hardware: Yes
Includes boot: No

Body color: Yellow
Body material: —
Body diameter: —
Front Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel

Rear

Notes: To GVWR: 7,300lbs

Part number: 24-024815
Series: 4600
Extended length: 20.89 Inch
Compressed length: 13.29 Inch
Rear Upper mounting: Bar Pin
Rear Lower mounting: Eyelet
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield:—
Includes hardware: No
Includes boot: Yes

Body color: Yellow
Body material: —
Body diameter: —
Rear Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel
