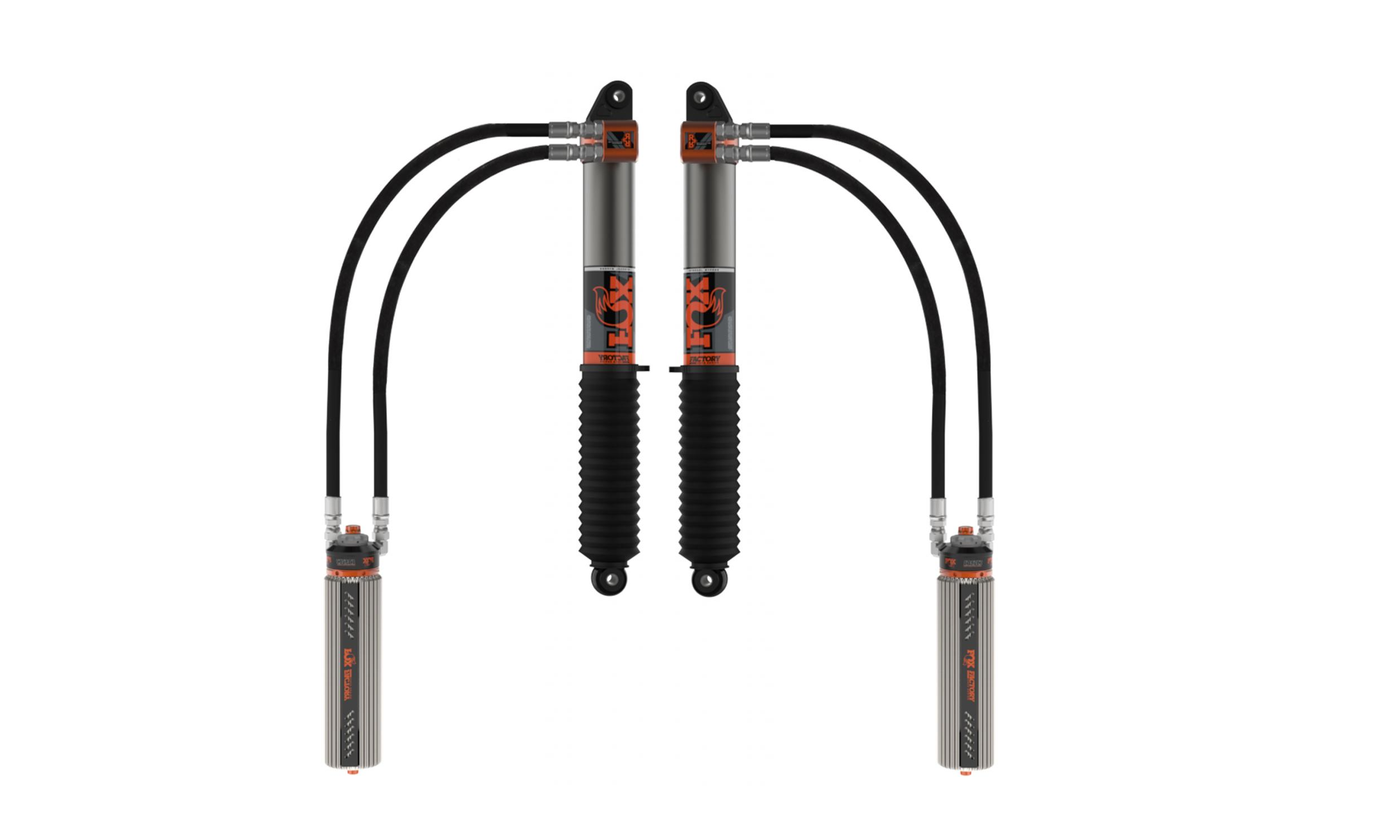

Fox Factory Race Series 3.0 Internal Bypass 2-3″ Rear Lift Adjustable Shocks for 2019-2024 Chevrolet Silverado 1500 2WD/4WD

Fox Factory Race Series 3.0 Internal Bypass 2-3 inches Rear Lift Adjustable Shocks for 2019-2024 Chevrolet Silverado 1500 2WD/4WD

Part Number: 883-26-105

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks provide high-speed ready performance and position-sensitive damping for the Chevrolet Silverado 1500. By utilizing patented Internal Bypass technology, these shocks offer multiple zones of damping control to maintain a comfortable ride while increasing force through rough terrain. This system is designed to handle hard bottom-outs and harsh top-outs, ensuring a confident experience during off-road operation.

Features

• Internal Bypass Technology: Patented internal bleed holes provide multiple zones of damping control to ensure a comfortable ride in the ride zone and progressive force during hard impacts.
• Dual Speed Compression (DSC): External DSC adjusters provide user-tunable damping control to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• Recirculating Reservoir Bridge: A finned external reservoir with checked ports provides continuous fluid exchange to ensure cooler operating temperatures and sustained performance.
• Hard-Anodized Aluminum Body: The 3.0-inch 6061-T6 impact extruded body provides superior heat dissipation and corrosion resistance to ensure long-term durability in harsh conditions.
• High-Flow Piston: Race-developed piston design provides application-specific valving to ensure maximized performance on rugged terrain.

Technical Specifications

Fitment

• 2019-2024 Chevrolet Silverado 1500 (2WD/4WD)
• Note: Fits 2019-2024 Chevrolet Silverado 1500 2WD/4WD models with 2-3 inches of rear lift.

What’s Included

• Sold Individually
• Aluminum finned remote reservoir with Recirculating Reservoir Bridge

Why Choose This Product?

• Engineering Advantage: The Internal Bypass design allows fluid to bypass the main piston through bleed holes in the normal ride zone, only forcing fluid through the piston as the shock extends into deeper compression or rebound.
• Performance Benefit: Drivers gain the ability to manually tune their suspension via the DSC adjusters, allowing for a smooth street ride that can be quickly stiffened for aggressive off-road use or heavy loads.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows for position-sensitive damping, providing a plush ride in the initial travel zone while progressively increasing damping force to prevent bottoming out during hard impacts.

How does the DSC adjuster work?
The Dual Speed Compression (DSC) adjuster allows you to manually dial in the shock’s damping characteristics to account for different driving styles, terrain, or vehicle loads.

Does this shock help with heat management?
Yes, it features a 3.0-inch aluminum body and a recirculating reservoir bridge with a finned remote reservoir designed to dissipate heat rapidly and maintain consistent performance.
