Zone Offroad 6″ IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD

Sale!
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD
Zone Offroad 6" IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD

Description

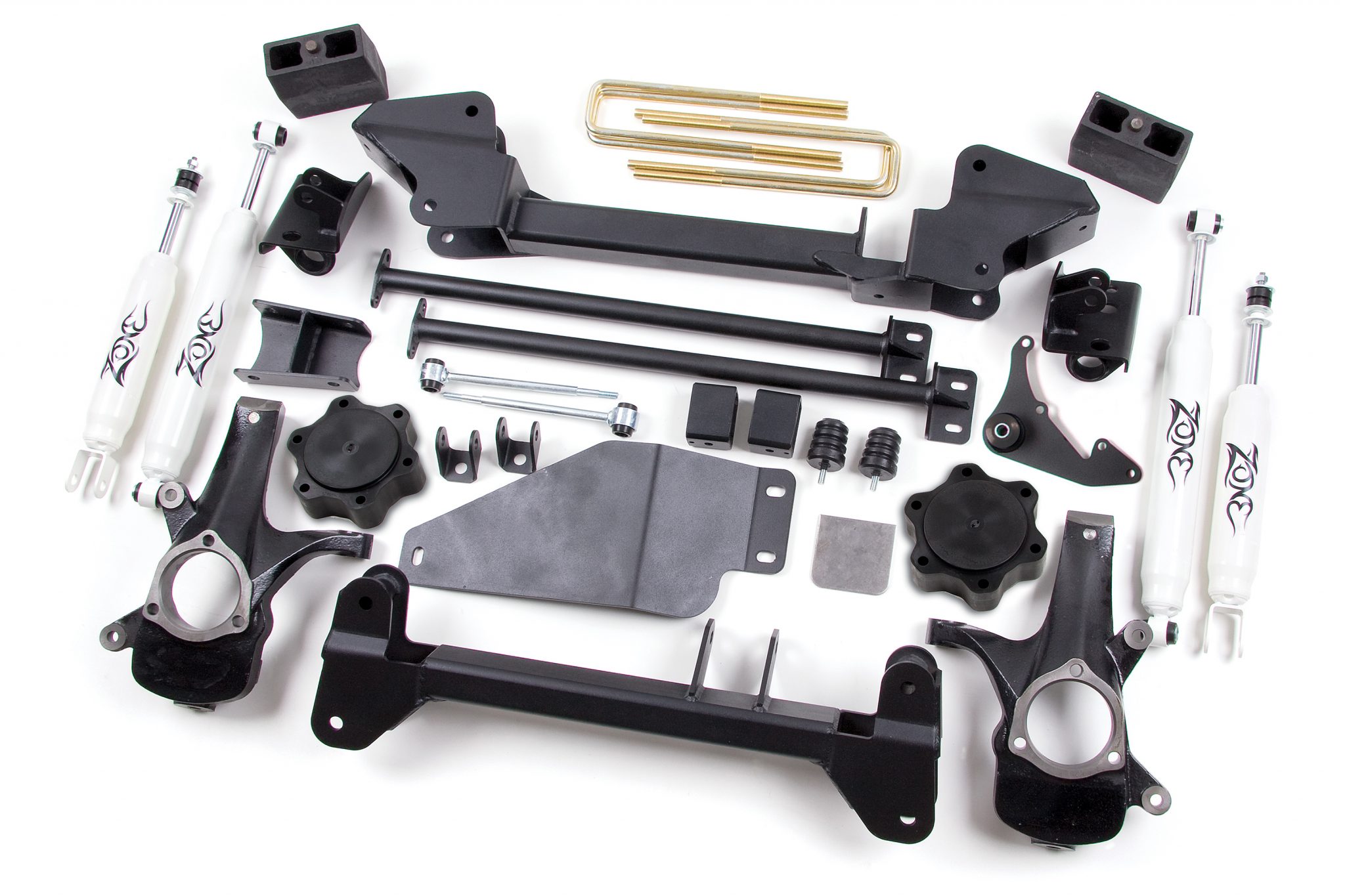

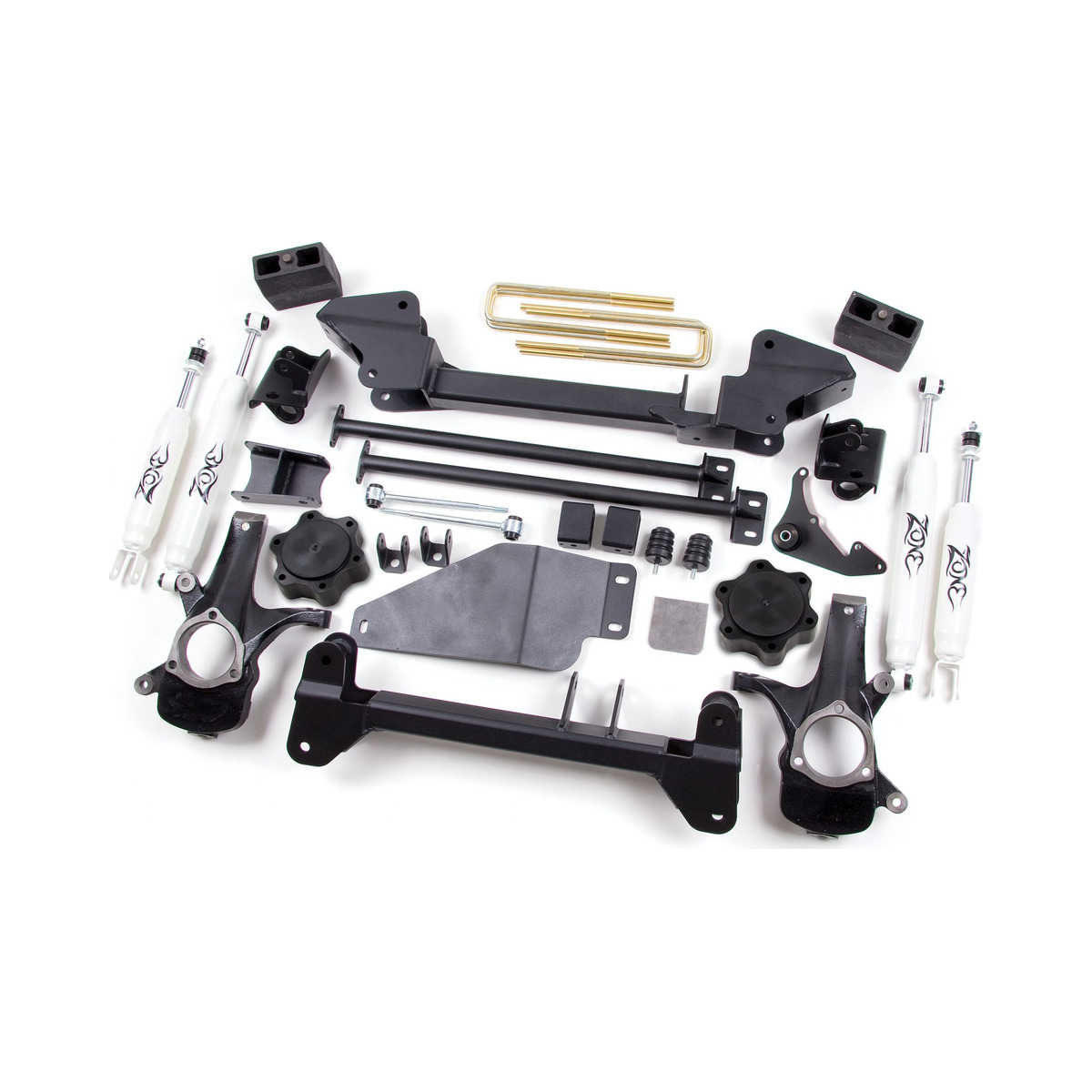

Zone Offroad 6″ IFS System Lift Kit 1999-2006 Silverado/Sierra 1500 4WD

Zone Offroad 6″ IFS System Lift Kit 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 Silverado/Sierra 1500 4WD

Part: C3

Ready for all your friends to be jealous? The Zone Offroad Products 6″ Suspension Lift Kit for 1999-2006 Chevrolet 1500 Silverado & GMC 1500 Sierra pickups is the ultimate in style and performance.

Whether you are just driving to work or playing on the trail, this system was designed to perform. The main crossmembers were designed to match the factory geometry with the new Zone CNC machined steering knuckles creating a true factory quality driving experience. Match this geometry with the heavy duty differential skid plate that locks the main crossemembers together and the compression struts that tie back to the frame and you have a system ready for some serious abuse!

Featured Technology & Benefits

  • CNC Machined ductile iron knuckles
  • Diffential skid plate included to protect the front differential and lock the crossmembers together
  • Compression struts included to support the main crossmembers for serious off roading
  • 1/4″ thick steel used to make indestructable crossmembers
  • 3-point differential mounting system correctly positions the differential so the factory driveshaft can be used

Important Notes!

  • Torsion bar unloading tool required.
  • Requires frame bracket modification and differential mount modification.
  • Will not fit HD models. See kit #C4
  • Compression struts won’t work with early ’99 models with an “S” shaped transmission crossmember.
  • If equipped with 17″ stock wheels, 17″ or larger aftermarket wheels must be used.
  • Minor welding required.
  • Will not fit old body tyle 1999 models.
  • It may be required to order the rear add-a-leaf kit C6159 for a slightly above level to tail high appearance.
  • Optional Add-a-leaf kit is recommended on Crew Cab models to acheive more level stance.

This product fits the following applications:

  • 1999 Chevy 1500 Pickup 4WD Gas
  • 2000 Chevy 1500 Pickup 4WD Gas
  • 2001 Chevy 1500 Pickup 4WD Gas
  • 2002 Chevy 1500 Pickup 4WD Gas
  • 2003 Chevy 1500 Pickup 4WD Gas
  • 2004 Chevy 1500 Pickup 4WD Gas
  • 2005 Chevy 1500 Pickup 4WD Gas
  • 2006 Chevy 1500 Pickup 4WD Gas
  • 1999 GMC 1500 Pickup 4WD Gas
  • 2000 GMC 1500 Pickup 4WD Gas
  • 2001 GMC 1500 Pickup 4WD Gas
  • 2002 GMC 1500 Pickup 4WD Gas
  • 2003 GMC 1500 Pickup 4WD Gas
  • 2004 GMC 1500 Pickup 4WD Gas
  • 2005 GMC 1500 Pickup 4WD Gas
  • 2006 GMC 1500 Pickup 4WD Gas

Quick Specs

  • Front Lift Height: 6″
  • Front Lift Method: IFS System
  • Rear Lift Height: 5″
  • Rear Lift Method: Block Kit
  • Install Time Hrs: 8
  • Difficulty Level 1-5: 4
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 17 x 9
  • Back Spacing: 5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 20 x 8
  • Back Spacing: 5.75″
  • Max Tire Size: 35 x 12.50

Additional information

Weight 100 lbs
Dimensions 35 × 12 × 10 in
