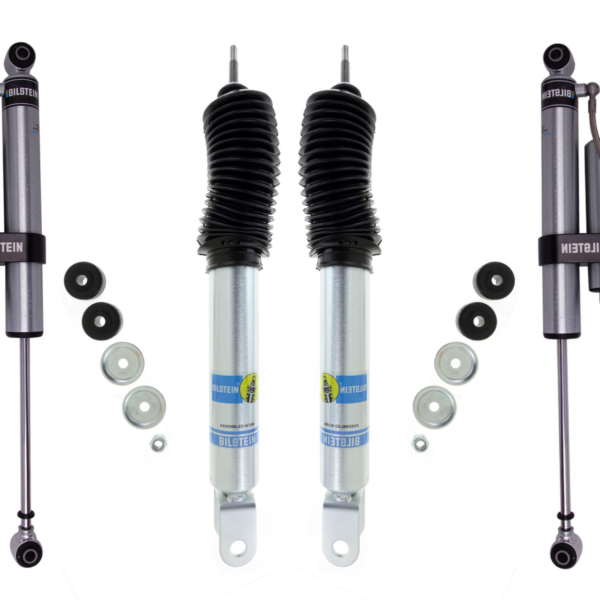

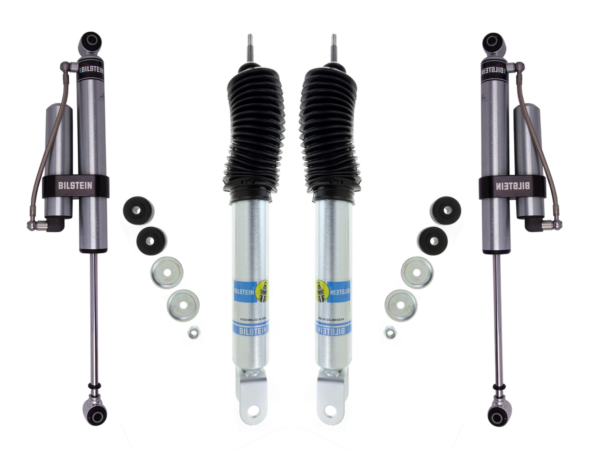

99-’06 Chevy / GMC Sierra 1500 4WD Bilstein 5100 2-2.5″ Front and B8 5160 0-2″ Rear Lift Shocks

Description
99-’06 Chevy / GMC Sierra 1500 4WD Bilstein 5100 2-2.5″ Front and B8 5160 0-2″ Rear Lift Shocks

1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 Chevy / GMC Sierra 1500 4WD Bilstein 5100 2-2.5″ Front and B8 5160 0-2″ Rear Lift Shocks

Front Shocks:

Series: 5100

Extended Length(in): 16.3

Collapsed Length(in): 12.54

Part Number: 2×24-186643

Fitment: 99-’06 Chevy / GMC Sierra 1500 4WD Bilstein 5100 2-2.5″ Front Lift Shocks

Rear Shocks:

Series: B8 5160

Part: 2×25-311297

NOTE: Without ZX3 Electronic Suspension Package

Introducing the Bilstein B8 5160 0-2″ Rear Lift Shocks, designed specifically for the 1999-2018 Chevrolet Silverado 1500 4WD (excluding vehicles with the ZX3 Electronic Suspension Package).

These remote reservoir shock absorbers are an ideal solution for lifted trucks and SUVs, providing increased cooling capacity and wheel travel for optimal performance compared to traditional shock absorbers. Featuring a monotube design, these shock absorbers provide consistent, fade-free performance and utilize velocity-sensitive digressive valve settings that are precisely tuned for each specific application.

For easy installation, each shock absorber is equipped with a unique 360 degree swivel banjo hose fitting and a sleek billet reservoir mount (where applicable), providing a clean, low profile look. With the B8 5160 remote reservoir shock absorbers, you can expect enhanced durability and off-road capability to tackle the most challenging environments.

In terms of specifications, the collapsed length is 16.12 inches (409.5 mm) and the extended length is 26.33 inches (668.7 mm). The finish is zinc-plated, and the body design is a smooth body (non-coilover) with a 46mm diameter. Additionally, the shock absorbers come equipped with a billet reservoir clamp and do not include an adjustable damping feature.
