Bilstein 6112 Front Assembled 0.3-2.5″ Coilovers with rear 5100 Shocks for 2019-2025 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Sale!
Bilstein 6112 Front Assembled 0.3-2.5" Coilovers with rear 5100 Shocks for 2019-2022 Chevy/GMC Sierra Silverado 1500 2WD/4WD
Bilstein 6112 Front 0.3-2.5 inch Lift Kit for 2019-2020 Chevy-GMC Sierra Silverado 1500 2WD-4WD lift information
Bilstein 6112 Front Assembled 0.3-2.5" Coilovers with rear 5100 Shocks for 2019-2022 Chevy/GMC Sierra Silverado 1500 2WD/4WD
Bilstein 6112 Front 0.3-2.5 inch Lift Kit for 2019-2020 Chevy-GMC Sierra Silverado 1500 2WD-4WD lift information

Description

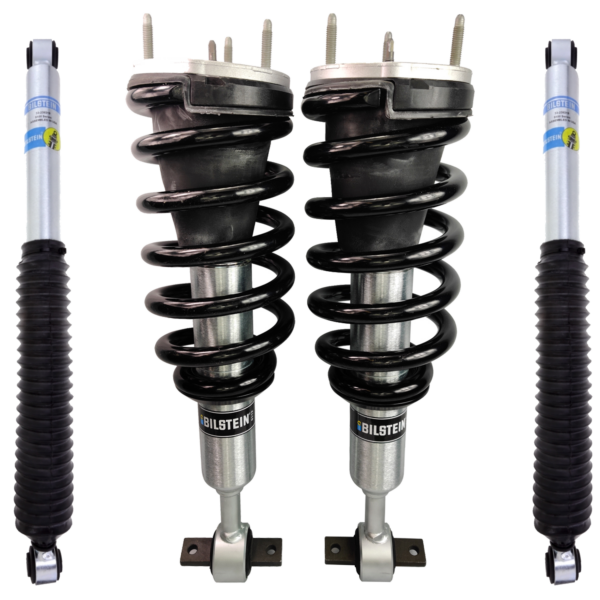

Bilstein 6112 Front Assembled 0.3-2.5″ Coilovers with rear 5100 Shocks for 2019-2025 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Bilstein 6112 Front Assembled 0.3–2.5″ Coilovers with Rear 5100 Shocks for 2019, 2020, 2021, 2022, 2023, 2024, 2025 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Part Number: 47-293557-ASB-S

Important Note: This kit is not compatible with Trail Boss models. For the Trail Boss kit, please click here:

.

Product Overview

Elevate the performance of your 2019–2024 Chevy/GMC Sierra Silverado 1500 2WD/4WD with the Bilstein 6112 Front Assembled Coilovers paired with Rear 5100 Shocks. Designed to enhance ground clearance, accommodate larger tires, and improve wheel travel, this suspension package offers superior handling and off-road capabilities without compromising on-road comfort.

Front Coilover Features

Bilstein B8 6112 Leveling Kit (Part Number: 47-293557)

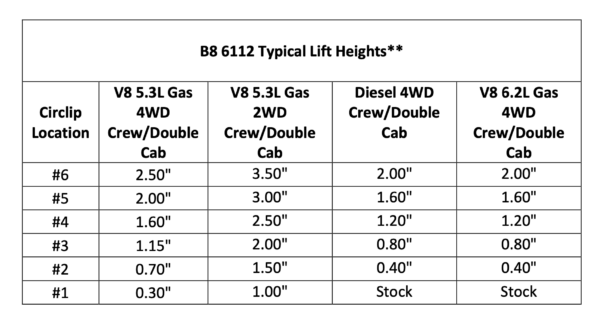

  • Adjustable Lift Height: Multiple snap-ring grooves allow for customizable spring seat positions, providing 0 to 2.75 inches of front lift depending on your application.
  • Premium Construction: Includes two 60mm shock absorbers, custom-matched cold wound coil springs, and billet aluminum spring seats for durability and performance.
  • Enhanced Damping Control: The large 60mm digressive piston delivers optimal damping, ensuring superior handling both on and off the road.
  • Direct Fit Installation: Engineered for a seamless fit, making the installation process straightforward and hassle-free.

Rear Shock Features

Bilstein 5100 Rear Shocks (Part Number: 24-293471)

  • Optimized Performance: Designed for vehicles with 0–1″ of rear lift, these shocks provide consistent ride quality and improved handling.
  • Monotube Design: Ensures fade-free performance with efficient heat dissipation for long-lasting reliability.
  • High-Quality Finish: Zinc-plated coating offers excellent corrosion resistance and durability.
  • Non-Adjustable Damping: Pre-set damping is optimized for your specific vehicle application, eliminating the need for adjustments.

Specifications for Rear Shocks

  • Collapsed Length: 15.71 inches (399.0 mm)
  • Extended Length: 24.93 inches (633.2 mm)
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Spring Seat Included: No
  • Adjustable Damping: Non-Adjustable

Installation Instructions

Vehicle Compatibility

  • Make/Model: Chevrolet Silverado 1500 and GMC Sierra 1500
  • Years: 2019, 2020, 2021, 2022, 2023, 2024, 2025
  • Drive Type: 2WD and 4WD
  • Exclusions: Not compatible with Trail Boss models

Why Choose Bilstein Suspension Upgrades

Experience the legendary performance and quality that Bilstein is known for. This comprehensive suspension kit enhances your vehicle’s handling, comfort, and off-road capabilities. Whether you’re tackling daily commutes or exploring rugged terrains, trust Bilstein to deliver unmatched performance and reliability.

Additional information

Weight 56 lbs
Dimensions 26 × 12 × 7.5 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
