Bilstein B8 5100 0-2.5″ Front, Rear Lift shocks For 2019-2024 Chevrolet Silverado 1500 2WD/4WD

SKU: 2x24-293297_2x24-293471
(9 customer reviews)
Sale!
Bilstein B8 5100 0-2.5" Front, Rear Lift shocks For 2019-2020 Chevrolet Silverado 1500 2WD/4WD
Bilstein B8 5100 0-2.5" Front, Rear Lift shocks For 2019-2020 Chevrolet Silverado 1500 2WD/4WD

Description
Bilstein B8 5100 0-2.5″ Front, Rear Lift shocks For 2019-2024 Chevrolet Silverado 1500 2WD/4WD

Bilstein B8 5100 0-2.5″ Front, Rear Lift shocks For 2019, 2020, 2021, 2022, 2023, 2024 Chevrolet Silverado 1500 2WD/4WD

Part: 2×24-337052_2x24-293471

Need them assembled and preset at desired lift with OE Replacement coils?

Front shocks: 24-337052 (old: 24-293297)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Collapsed Length (IN): 16.28
Extended Length (IN): 21.65
Collapsed Length (MM): 413.6
Extended Length (MM): 550.0
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm

Notes: Front Lift Height: 0-2.5″

Rear shocks: 24-293471

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Collapsed Length (IN):15.71
Extended Length (IN):24.93
Collapsed Length (MM):399.0
Extended Length (MM):633.2
Finish:Zinc Plated
Reservoir:No
Body Design:Smooth Body (Non-Coilover)
Body Diameter:46mm
Notes: For Rear Lifted Height: 0-1″

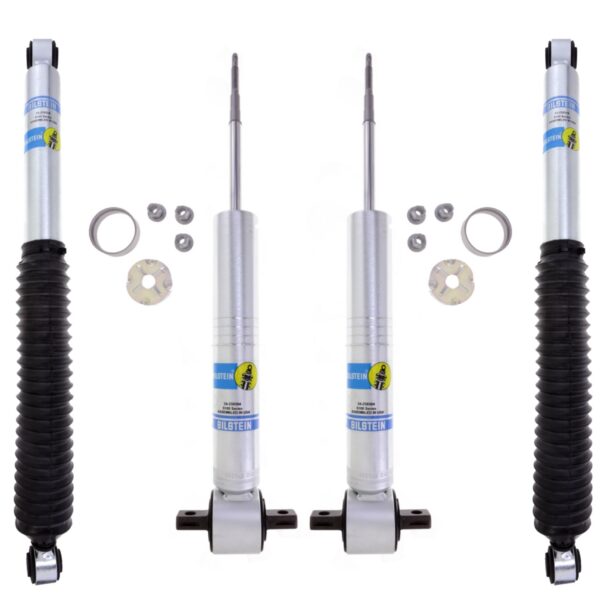

Picture does not show  springs seat, but it is now supplier with the shock by default
