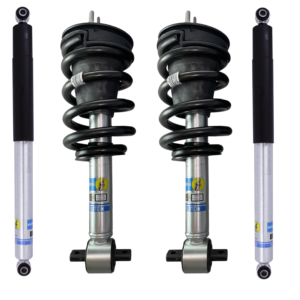

Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2025 Chevrolet Silverado 1500 (Trail Boss only)

SKU: 2x24-309509_2x24-309516
(3 customer reviews)
Sale!
Bilstein B8 5100 RHA 0-1.1" Front, 0-1" Rear Lift Shocks For 2019-2021 Chevrolet Silverado 1500 (Trail Boss only)
Bilstein B8 5100 RHA 0-1.1" Front, 0-1" Rear Lift Shocks For 2019-2021 Chevrolet Silverado 1500 (Trail Boss only)

Description
Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2025 Chevrolet Silverado 1500 (Trail Boss only)

Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019, 2020, 2021, 2022, 2023, 2024, 2025 Chevrolet Silverado 1500 (Trail Boss submodel only)

Part: 2×24-309509_2x24-309516

Need the Front assembled with Rear Shocks?

Front Shocks: 2 of 24-337069 (old: 24-309509)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-1.1 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • Collapsed Length (IN): 17.58
  • Extended Length (IN): 21.97
  • Collapsed Length (MM): 446.6
  • Extended Length (MM): 558.0
  • Finish: Zinc Plated
  • Reservoir: No
  • Aftermarket Upper Arms Required: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 46mm

Rear Shocks: 2 of 24-309516

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

  • Collapsed Length (IN): 17.40
  • Extended Length (IN): 27.61
  • Collapsed Length (MM): 442.0
  • Extended Length (MM): 701.2
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm

Notes: Trail Boss/AT4 only

3 reviews for Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2025 Chevrolet Silverado 1500 (Trail Boss only)

  1. Julio Campos –

    Every truck must have these struts. I love the way the truck feels

    • DesertRat –

      Tell me more about your setup. I see you have the ReadyLift kit installed. Did you max out the struts to 1.1″ and also keep the RL spacers? I’m curious, because I have a similar setup on mine.

    • Desert Rat –

      I have the same setup. What setting did you set your struts to and are you running both spacers?

  2. Jacob –

    These struts are a must-have upgrade for any Trailboss. I kept the stock ride height, but you could easily level the truck with these struts. As with any other set of Bilstein 5100’s, these will firm up the truck and you do feel more of the little bumps, but the large bumps get soaked up. I have a heavy winch on the nose of the truck and keep a few hundred pounds in the bed toolbox at all times, so the OEM shocks quit in 40,000 miles. Even with the extra weight, the truck feels planted on the road more so than it did fresh off the lot. I also tow a large 24′ car hauler occasionally, which is why I opted for the stiffer 5100’s rather than the more OEM feel of other shocks. Would highly recommend these for the Trailboss or really any other truck. Most people report these lasting over 100,000 miles, so we will see how they hold up.

  3. Brenden Bopery –

    This kit made a huge difference in making my truck smooth and firm. Takes larger bumps much better and gets rid of the cab wobble when going over large bumps. Customer service was amazing, had an issue with one of the front struts and they sent out a replacement the very next day without having to jump through hoops.
