SuperLift 8″ Lift Kit for 2014-2017 Chevy Silverado and GMC Sierra 1500 with OE Aluminum or Stamp Steel Control Arms – 4WD

Description
SuperLift 8″ Lift Kit for 2014-2017 Chevy Silverado and GMC Sierra 1500 with OE Aluminum or Stamp Steel Control Arms – 4WD

SuperLift 8″ Lift Kit for 2014, 2015, 2016, 2017 Chevy Silverado and GMC Sierra 1500 with OE Aluminum or Stamp Steel Control Arms – 4WD

Part: K899

Features and Benefits

• Designed using factory CAD data
• Compatible with factory Stabilitrac® and anti-skid control features
• Replacement cast ductile iron steering knuckles
• High clearance, one-piece cross members, and all other load bearing bracketry, is laser cut from .25″ thick plate steel
• Front differential skid plate integrates with cross members for additional system rigidity
• No front differential trimming
• Clears 35″ diameter tires without fender trimming
• Limited Lifetime Warranty
• 100% Satisfaction Guarantee

Tire & Wheel Info

Recommended Tire and Wheel

Wheel Diameter – 20″

Wheel Width – 9-10″

Back Spacing – 4.5 – 5.”

Max Tire Height – 35.0″

Tire Width – 12.5″

Installation Notes

Minor cutting required

This product is for 2014-2017 Chevy / GMC 1500 Pick-ups with factory Stamp Steel or Aluminum Control Arms

Does Not fit trucks equipped with MagnaRide

Installation Instructions

• 3571.pdf

Product Overview

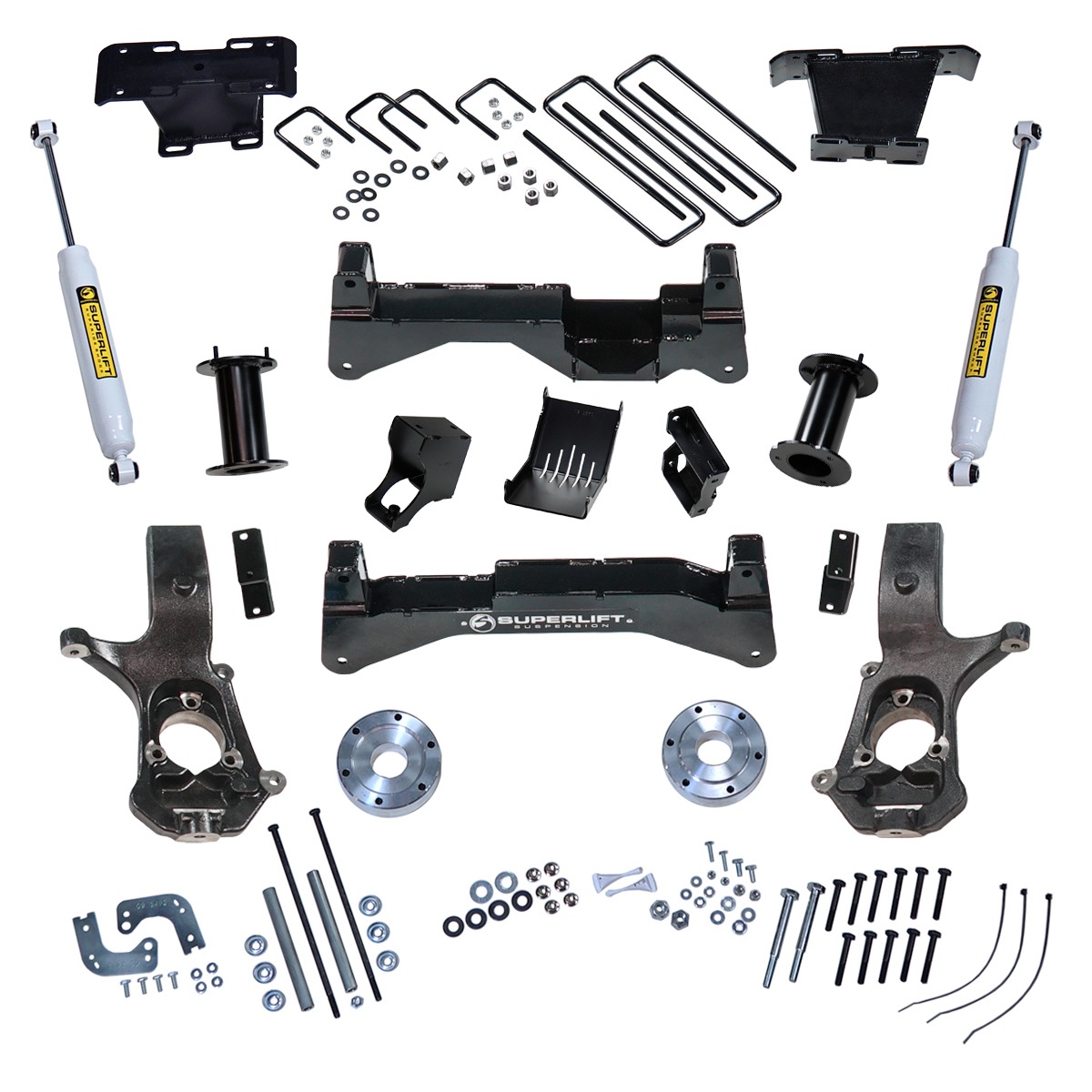

Superlift’s 8″ lift for the 2014-2017 Chevy / GMC 1500 series platform easily runs 35″ tall tires and is the kit to have if you want to avoid trimming the fenders on your new high dollar 4×4.  Our 8″ kit is a replacement knuckle system and was designed using factory dimensional data. Using OE data files allows us to design lift kits that mimic the original factory designed components.  This aids in installment and compatibility.  It also allows our engineers to design a kit that once installed not only retains your truck truck’s excellent ride and handling characteristics, but one that is also compatible with GM’s Stabilitrac® anti-skid system.

As with all of Superlift’s products, the lift is backed by our Lifetime Warranty and Satisfaction Guarantee.
