Do these Bilstein 4600 front assembled coilovers lift my 2002–2009 GMC Envoy?

No. These Bilstein 4600 front assembled coilovers are designed as a stock-height replacement for the 2002–2009 GMC Envoy. They are tuned to match factory ride height and geometry, not to provide a suspension lift or lowering.

Do I need a spring compressor to install these Bilstein 4600 front coilovers?

No. The front Bilstein 4600 shocks are pre-assembled with OE replacement coil springs, new top mounts, and hardware. They arrive as complete coilover assemblies, so you do not need a spring compressor to install them.

Will these Bilstein 4600 front coilovers fit the GMC Envoy SS?

No. This part number BIL460GE02 is designed for 2002–2009 GMC Envoy models with front coil spring suspension and will not fit the Envoy SS submodel.

What coils are used with these Bilstein 4600 front assemblies?

These front assemblies use high-quality OE replacement coil springs, such as Moog or an equivalent aftermarket option, matched to the correct rate and height for the 2002–2009 GMC Envoy. They are not Bilstein-branded coils but are selected to work properly with the Bilstein 4600 shocks.

Do I need an alignment after installing these front coilovers on my Envoy?

Yes. Any time you replace front coilovers or major suspension components, a professional alignment is strongly recommended. This helps ensure proper tire wear, straight tracking, and correct steering feel on your GMC Envoy.

Are these Bilstein 4600 front coilovers good for daily driving and highway use?

Yes. The Bilstein B6 4600 shocks are specifically tuned for stock-height SUVs and light trucks like the GMC Envoy. The monotube, gas-charged design with digressive valving improves control, stability, and comfort, making them an excellent upgrade for daily driving, highway trips, and general use.

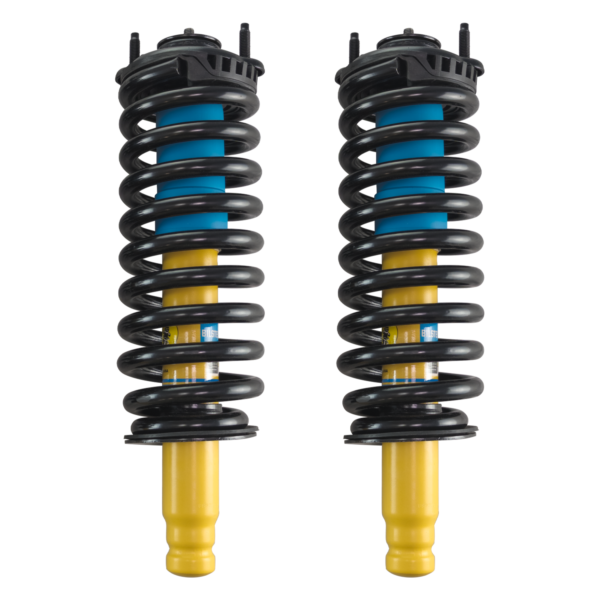

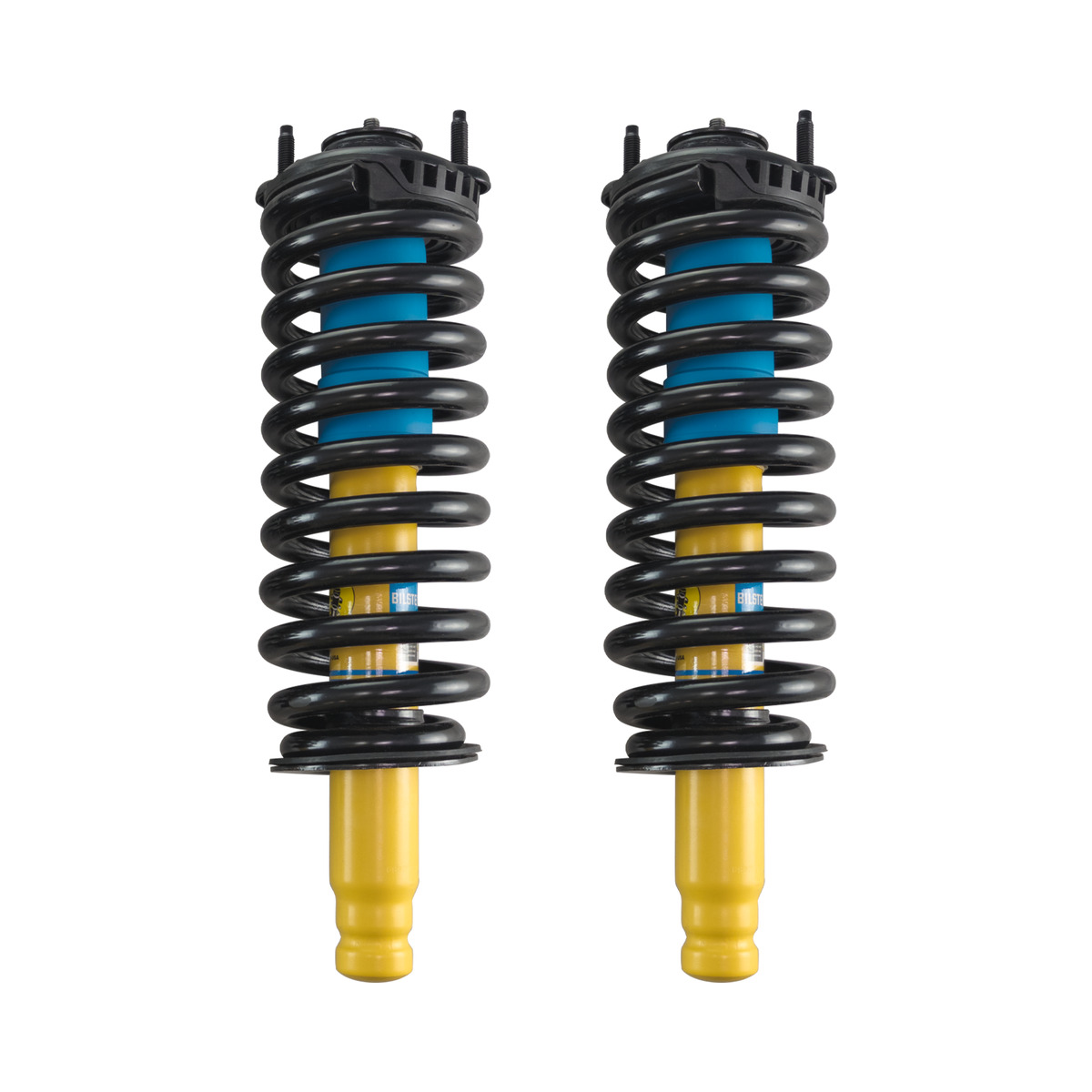

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002-2009 GMC Envoy

Click to enlarge

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002-2009 GMC Envoy

$559.46

In stock

( ! ) Deprecated: Creation of dynamic property woocommerce_gravityforms_product_form::$previous_page is deprecated in /var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce-gravityforms-product-addons/gravityforms-product-addons-form.php on line 79
Call Stack
#	Time	Memory	Function	Location
1	0.0000	402192	{main}( )	.../index.php:0
2	0.0001	403688	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-blog-header.php )	.../index.php:17
3	1.3132	165594920	require_once( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-includes/template-loader.php )	.../wp-blog-header.php:19
4	1.4101	165867640	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/single-product.php )	.../template-loader.php:132
5	1.8607	190494776	wc_get_template_part( $slug = 'content', $name = 'single-product' )	.../single-product.php:41
6	1.8608	190495344	load_template( $_template_file = '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php', $load_once = FALSE, $args = ??? )	.../wc-core-functions.php:285
7	1.8610	190524680	require( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/themes/woodmart/woocommerce/content-single-product.php )	.../template.php:816
8	1.9090	190948024	do_action( $hook_name = 'woocommerce_single_product_summary' )	.../content-single-product.php:220
9	1.9090	190948240	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
10	1.9090	190948240	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
11	1.9186	191062424	woocommerce_template_single_add_to_cart( '' )	.../class-wp-hook.php:341
12	1.9186	191062480	do_action( $hook_name = 'woocommerce_simple_add_to_cart' )	.../wc-template-functions.php:1923
13	1.9186	191062696	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
14	1.9186	191062696	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
15	1.9186	191063128	woocommerce_simple_add_to_cart( '' )	.../class-wp-hook.php:341
16	1.9186	191063128	wc_get_template( $template_name = 'single-product/add-to-cart/simple.php', $args = ???, $template_path = ???, $default_path = ??? )	.../wc-template-functions.php:1933
17	1.9187	191073384	include( '/var/www/html/suspensionlifts/staging.suspensionlifts.com/wp-content/plugins/woocommerce/templates/single-product/add-to-cart/simple.php )	.../wc-core-functions.php:346
18	1.9215	191080016	do_action( $hook_name = 'woocommerce_before_add_to_cart_button' )	.../simple.php:33
19	1.9215	191080232	WP_Hook->do_action( $args = [0 => ''] )	.../plugin.php:522
20	1.9215	191080232	WP_Hook->apply_filters( $value = '', $args = [0 => ''] )	.../class-wp-hook.php:365
21	1.9215	191080664	WC_GFPA_Main->woocommerce_gravityform( '' )	.../class-wp-hook.php:341
22	1.9249	191135720	woocommerce_gravityforms_product_form->get_form( $options = ['reorder_processing' => 'resubmit', 'reorder_hydrate_defaults' => 'yes', 'use_ajax' => 'no', 'is_ajax' => FALSE, 'show_wc_notices' => 'yes', 'validation_message' => 'There was a problem with your submission. Please review the fields below.', 'id' => '2426', 'bulk_id' => 0, 'display_title' => FALSE, 'display_description' => FALSE, 'disable_woocommerce_price' => 'no', 'price_before' => '', 'price_after' => '', 'disable_calculations' => 'no', 'disable_label_subtotal' => 'yes', 'disable_label_options' => 'yes', 'disable_label_total' => 'no', 'disable_anchor' => 'no', 'label_subtotal' => 'Subtotal', 'label_options' => 'Options', 'label_total' => 'Total', 'enable_cart_edit' => 'no', 'enable_cart_edit_remove' => 'yes', 'keep_cart_entries' => 'no', 'send_notifications' => 'no', 'enable_cart_quantity_management' => 'no', 'cart_quantity_field' => '', 'update_payment_details' => 'no', 'display_totals_location' => 'after', 'structured_data_override' => 'no', 'structured_data_low_price' => '', 'structured_data_high_price' => '', 'structured_data_override_type' => 'append'] )	.../gravityforms-product-addons-main.php:178

Subtotal
Options
Total

Add to compare

Add to wishlist

SKU: BIL460GE02 Category: Shocks

Description

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils for 2002–2009 GMC Envoy (Non-SS)

Part: BIL460GE02

Need a complete front & rear shock kit?

Bilstein 4600 Front Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2002–2009 GMC Envoy

Need a full kit with front and rear coils?

Bilstein 4600 Front Assembled Coilovers, OE Replacement Coils with Rear Shocks and Rear Coils for 2002–2009 GMC Envoy

Complete Front Coilover Upgrade for Your GMC Envoy

These Bilstein 4600 front assembled coilovers are a direct-fit, stock-height upgrade for your 2002–2009 GMC Envoy.
Each assembly pairs a Bilstein 4600 front shock with a high-quality OE replacement coil spring (such as Moog or equivalent), pre-assembled with new top mounts and hardware.
The result is a tighter, more controlled ride with better stability and comfort compared to tired factory struts.

What’s Included

(2) Front Bilstein 4600 shocks – 24-103336 (left & right)
Pre-assembled with OE replacement coil springs (such as Moog or equivalent)
New top mounts, bushings, spring seats, and hardware installed
Dust boots included – bolt-on assemblies, no spring compressor required

Why Choose Bilstein 4600 for Your Envoy

Direct replacement at stock height: Designed specifically for 2002–2009 GMC Envoy front coil suspension (no lift, no drop).
Monotube performance: High-pressure gas monotube design keeps damping consistent and fade-free, even on rough roads.
Digressive piston valving: Velocity-sensitive, digressive valving reacts quickly to bumps and potholes for a controlled, confident feel.
Improved ride & handling: Reduces front-end float, nose dive, and body roll while maintaining everyday comfort.
Great for daily driving & highway use: Ideal for high-mileage Envoys that need a real upgrade over generic replacement struts.
Time-saving assemblies: Coils and mounts are already installed – swap out your old units and bolt these in.

Fitment notes: WILL NOT FIT Envoy SS submodel

Suspension type: Front: Coil Rear: Coil

Front Coilover / Shock Specifications – 24-103336

Position: Front (driver & passenger)
Type: Nitrogen gas charged
Internal design: Monotube
Adjustable: No
Extended length: 16.96″
Compressed length: 12.13″
Rod diameter: 1.81″
Upper mounting style: Stem
Lower mounting style: Base cup
Valving type: Deflective disc valving (digressive)
Rod finish: Polished
Rod material: Steel
Body color: Yellow
With reservoir: No
Includes dust shield: No
Includes hardware: Yes
Includes boot: Yes
Quantity: Pair (2 front assemblies)

Ride & Installation Notes

Designed for stock-height GMC Envoy – does not provide lift.
Front assemblies arrive fully built – no need to disassemble springs or rent a compressor.
An alignment is strongly recommended after replacing front coilovers to ensure proper tire wear and handling.
OE replacement coils are high-quality aftermarket springs (e.g., Moog or equivalent), matched to stock ride height and load rating.

If your Envoy feels bouncy, loose, or unstable in the front, this Bilstein 4600 assembled coilover set is a proven way to restore control and comfort with a simple, bolt-on upgrade.

Additional information

Weight	45 lbs
Dimensions	27 × 10.01 × 5.51 in
4WD-2WD	2WD , 4WD
Brand	Bilstein
Front-Rear	Front
Lift	0
Make	GMC
Model	Envoy
Product Type	Coilovers , Shocks
Year	2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009
