SuperLift 5″ Lift Kit 2000-2002 Dodge Ram 2500/3500 4WD Diesel/V-10 FOX Shocks
SuperLift 5″ Lift Kit 2000, 2001, 2002 Dodge Ram 2500/3500 4WD Diesel/V-10 FOX Shocks
Part: K336F
What is this?

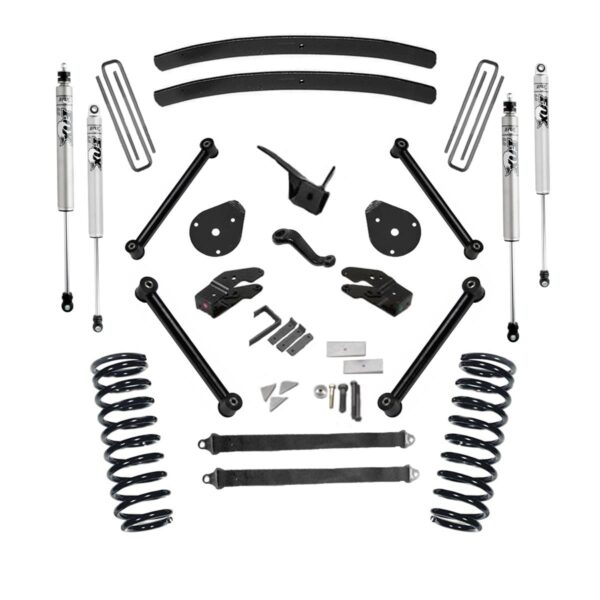

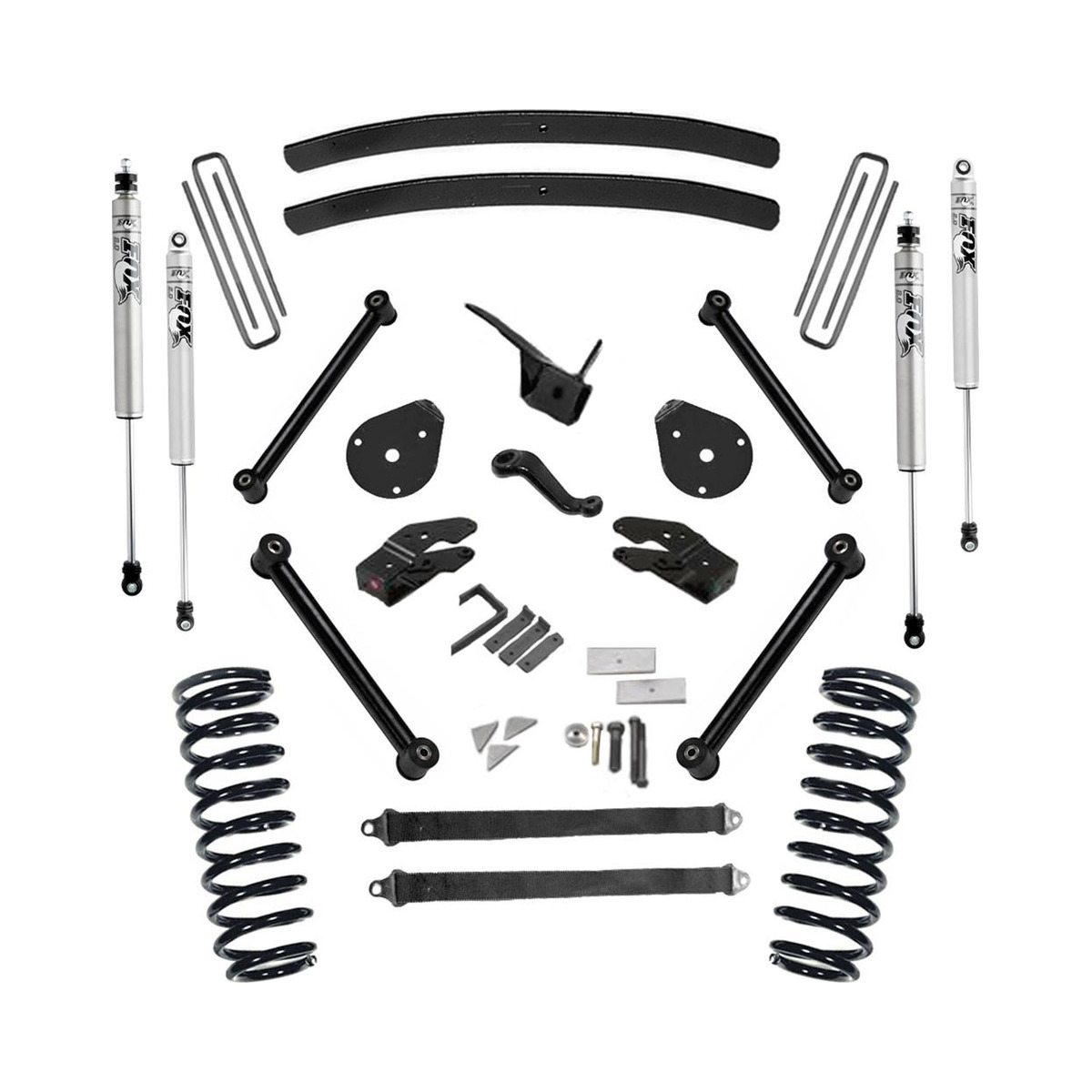

- This is a complete coil spring style suspension lift kit for the 2000-2002 Dodge Ram 2500/3500 4WD pickup
- Provides 5” lift height
- Includes replacement front link arms
- Includes rear add-a-leafs and front and rear Superlift shock absorbers
What does it include?
- Front components: All brackets, shocks, coil springs, control arms, front track bar bracket, drop pitman arm, and all hardware required specific to the 2000-2002 Dodge Ram 2500/3500
- Rear components: Shocks, add-a-leafs, degree shim and u-bolt kit
- Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
KEY DETAILS:
Superlift Suspension Systems now available with Superlift Shocks OR Fox® Shocks:
This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 2000-2002 Ram 2500 | 3500 that provides 5 inches of lift height. This kit is available with either Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks.
Front lift is via new, pre-set coil springs for Ram 2500 |3500. A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing. New Upper | Lower front axle-to-frame link arms restore factory alignment specifications. Front and rear suspension compression travel control is also addressed.
For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox® Performance series 2.0 IFP Shocks.
Features | benefits:
- Track bar relocation bracket prevents the steering wheel kick and stud bind
- Fabricated Brackets constructed from .25” thick plate steel
- Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
- Front | Rear Compression travel stop brackets eliminate over-compression
- Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
- Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
- Add-a-leafs for rear
- Aligns to OEM specifications
- Backed by our Limited Lifetime Warranty
NOTES: (Additional Info)
- Minor cutting and/or welding required
- Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed. Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application
TIRE & WHEEL INFO:
| Tire | Wheel | Backspacing | Offset |
| 35x 12.5 | – | 4.5 | – |
IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
INSTALLATION & NOTES:
- Installation time: 7 hours
- Difficulty level: 4 of 5
Additional Info:
Pitman arm included in kit box.
Fits:
- 2000-2002 Dodge Ram 2500 DIESEL
- 2000-2002 Dodge Ram 3500 DIESEL
Important fitment notes from manufacturer:
Additional information
| Weight | 100 lbs |
|---|---|
| Dimensions | 40 × 15 × 10 in |
