Zone Offroad 1″ Leveling Kit for 2021-2023 Ford Bronco
Original price was: $78.21.$71.10Current price is: $71.10.
In stock
Zone Offroad 1″ Leveling Kit For 2021, 2022, 2023 Ford Bronco
Part: F1102
Right out of the gate the 2021, 2022, 2023 Ford Bronco is an impressive machine offering cool retro styling and off-road pedigree that rivals anything on the road these days. Available with the standard IFS suspension or upgraded Sasquatch package providing 1.1″ taller ride height, the Bronco has clearance for up to 35″ tires from the factory. Building on the 4-corner coilover design Zone Offroad offers a 1″ leveling kit designed to level out the stance and eliminate the factory nose-low rake. This improves the appearance with clearance for larger aftermarket wheel/tire packages without sacrificing vehicle driveability. The leveling kit uses a 2-piece design with upper and lower strut mount spacers that install easily to provide the desired level stance on all Bronco models. These spacers are built from high-strength American steel laser cut for a precision fit and finished in a durable black e-coating. These paired with the longer replacement hardware and step-by-step instructions allow you to bolt-on this 1″ leveling kit within a few hours.
QUICK SPECS:
- Front Lift Height: 1″
- Material: Steel
- Front Lift Method: Strut Spacers
- Lift Type: Leveling Kit
- Wheel Size: 20 x 9
- Back Spacing: 5″-6″
- Max Tire Size: 35″ x 11.2″
- Wheel Size 2: 20 x 9
- Back Spacing 2: 5-5.5″
- Max Tire Size 2: 35 x 12.5
- Is Adjustable: No
- Finish: e-Coat
- Metal Cutting Required: No
- Welding Required: No
FEATURES:
- Levels stance without affecting ride quality or drive-ability
- Allows clearance for aftermarket wheel/tire packages

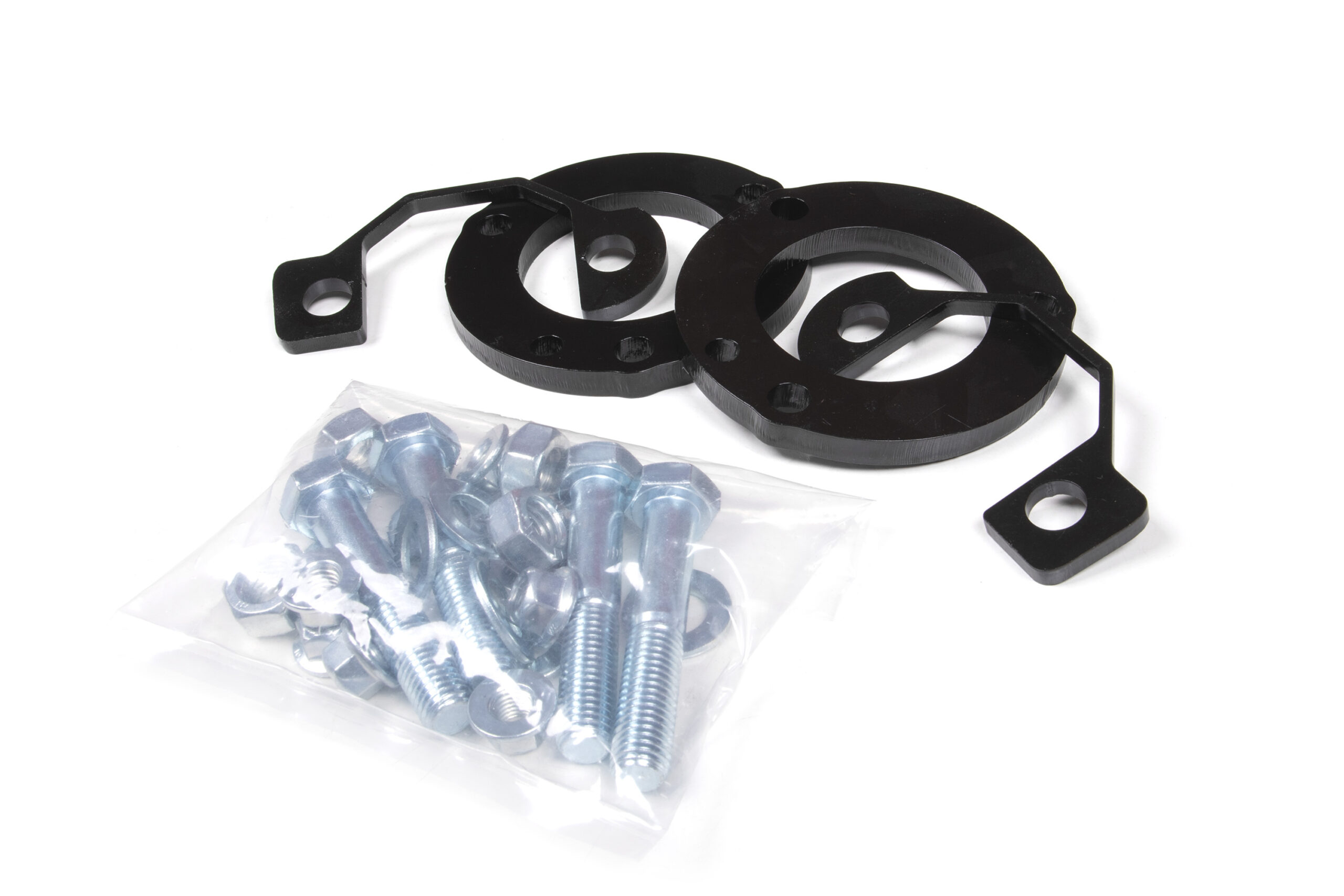

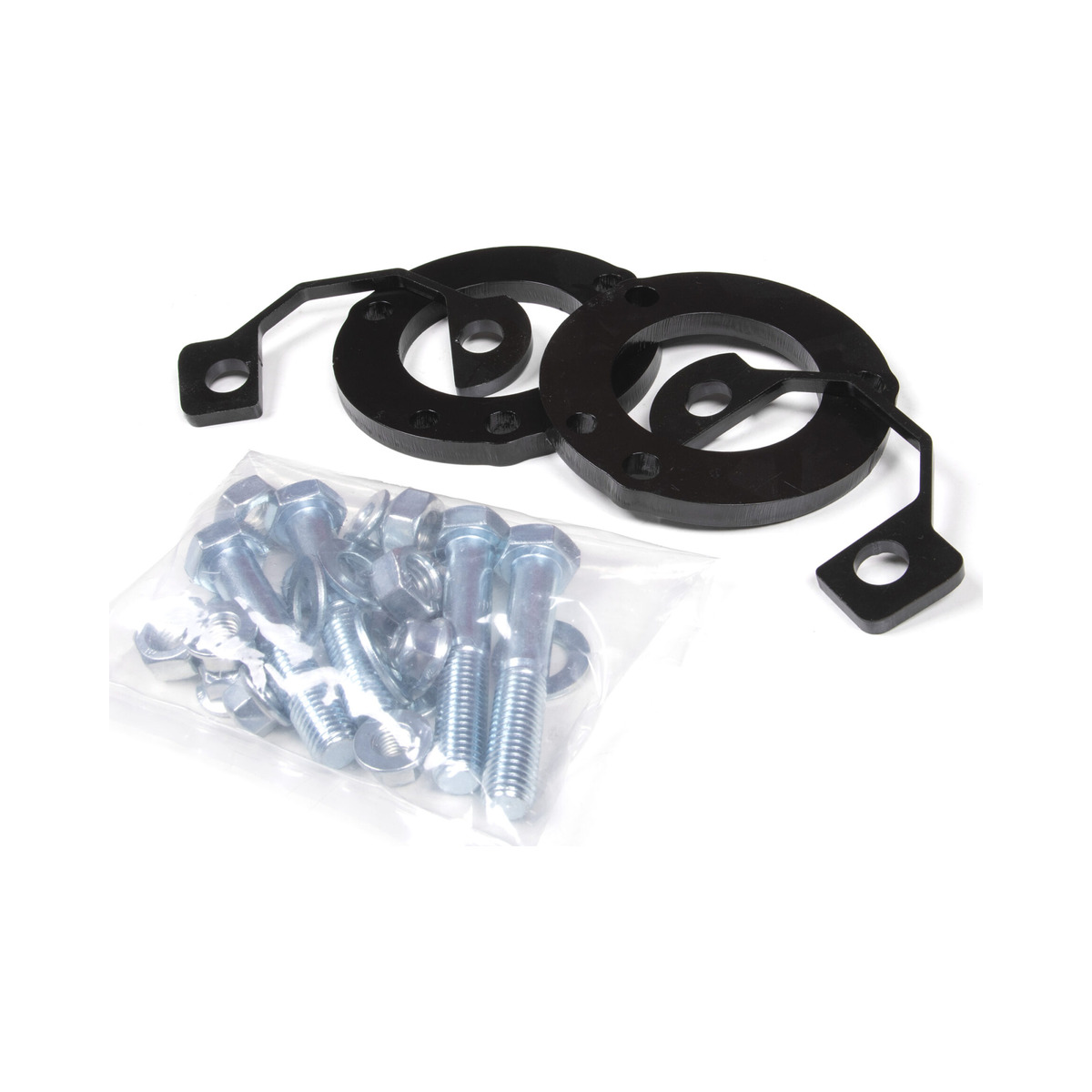

2-piece design for simple bolt-on installation (2 piece design is used so that the top spacer does not require cutting or disassembly of the strut). When the top spacer height is optimized around the simplicity of not cutting or rotating of the top hat then a lower spacer is used to net the rest of the lift needed to get to a level stance. - No cutting required
- Does not require strut disassembly or rotating the top strut hat.
IN THE BOX:
- Coil Spring Spacers – Front
IMPORTANT NOTES:
- Will fit all Bronco models
- Will fit Sasquatch Bronco models
- Will NOT fit Bronco Sport models
- Will fit Badlands models
SPECIFICATIONS:
- Install Time Hours: 2-3 hrs
- Difficulty Level: 2 out of 5
REQUIRED TOOLS:
- Air Hammer (Recommended)
- Basic Hand Tools
- 35mm Axle Nut Socket
- 204-592 Ball Joint Separator (Recommended)
- Tie Rod End Separator (Recommended)
FITMENT:
- 2021, 2022, 2023 Ford Bronco
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 11.25 × 7.25 × 2.25 in |
| 4WD-2WD | |
| Brand | |
| Front-Rear | |
| Lift | |
| Make | |
| Model | |
| Product Type | |
| Year | , , |
