Fox Perf 2.5 Elite Series 2.5-4.5″ Front and Rear Lift Coilovers for 2021-2023 Ford Bronco 2WD/4WD

Sale!
Fox Perf 2.5 Elite Series 2.5-4.5 Front and Rear Coilovers for 2021-2022 Ford Bronco 2WD-4WD
Fox Perf 2.5 Elite Series 2.5-4.5 Front and Rear Coilovers for 2021-2022 Ford Bronco 2WD-4WD

Description
Fox Perf 2.5 Elite Series 2.5-4.5″ Front and Rear Lift Coilovers for 2021-2023 Ford Bronco 2WD/4WD

Fox Perf 2.5 Elite Series 2.5-4.5″ Front and Rear Lift Coilovers for 2021-2022, 2023 Ford Bronco 2WD/4WD with Reservoir Compression Adjustable

Part: 883-06-209

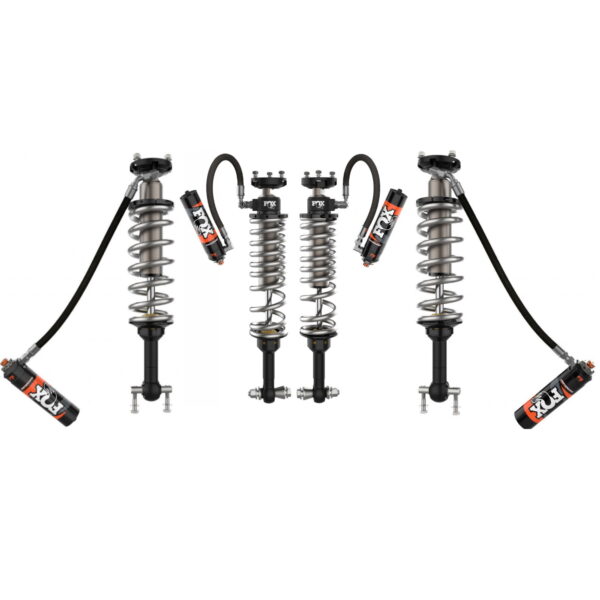

Includes (2) 3.5-4.5″ Front and (2) 2.5-3.5″ Rear Coilovers

FOX Performance Elite 2.5 Series shocks for the new full-size Ford Bronco are designed and engineered by off-road enthusiasts to enhance comfort, maximize articulation, and increase compliance in the dirt.

FOX’s progressively wound springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions. These springs were specifically chosen to compliment the Bronco’s IFS design to offer a uniquely soft ride and better control through rough terrain.

The shocks’ 2.5-inch aluminum bodies and external reservoirs efficiently dissipate heat by increasing internal oil capacity, while the remote reservoirs with Dual Speed Compression (DSC) adjusters are strategically mounted to clear aggressive mud tires and leave space for aftermarket skid plates and bumpers.

Easily adapt your shocks for load, environment, and driving style using the DSC adjusters as the large capacity dampers manage stability through all types of terrain. Additionally, you have a generous amount of preload adjustment to maintain your Bronco’s ideal ride height while supporting a wide range of essential added gear.

FOX Performance Elite 2.5 Series shocks provide the versatility required to navigate backcountry terrain on the weekend and tackle your daily commute while you remain comfortable and in control.

FRONT COILOVER FEATURES AND SPECIFICATIONS:

Body 2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir 2.5″ Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring Application specific, custom progressive springs
Shaft 7/8″ hard chrome plated steel shafts
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjustments Ride height preload ring
Adjuster Type DSC – Dual Speed Compression
Top Mount OEM
Bottom Mount Bar Pin
Replaces Part Number 883-06-192
Fitment notes 2 Door Only | With Sasquatch Package | Requires Upper Control Arm
Extended (in) 23.4100
Compressed (in) 17.9400
Travel (in) 5.47



REAR COILOVER FEATURES AND SPECIFICATIONS:

Body 2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir 2.5″ Smooth bore and honed seamless alloy reservoir
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring Application specific, custom progressive springs
Shaft 7/8″ hard chrome plated steel shafts
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjustments Ride height preload ring
Adjuster Type DSC – Dual Speed Compression
Top Mount OEM
Bottom Mount Eyelet
Replaces Part Number 883-06-193
Fitment notes 2 Door Only | Without Sasquatch Package
Extended (in) 26.4100
Compressed (in) 18.4400
Travel (in) 7.97

Additional information

Weight 65 lbs
Dimensions 15 × 5 × 4 in
