AirLift Front Helper Spring Kit for 2009-2009 Ford F-53 Motorhome Chassis
$521.99
In stock
AirLift Helper Spring Kit for 2009-2009 Ford F-53 Motorhome Chassis
Part Number: 88240
Summary:
The LoadLifter 5000 Ultimate is an adjustable air spring kit designed to provide up to 5,000 pounds of front load leveling capacity. This system features air springs with an internal closed-cell urethane foam jounce bumper, allowing the springs to be safely used with zero air pressure. The kit is intended to support heavy loads and fits vehicles equipped with in-bed hitches.
This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.
Features

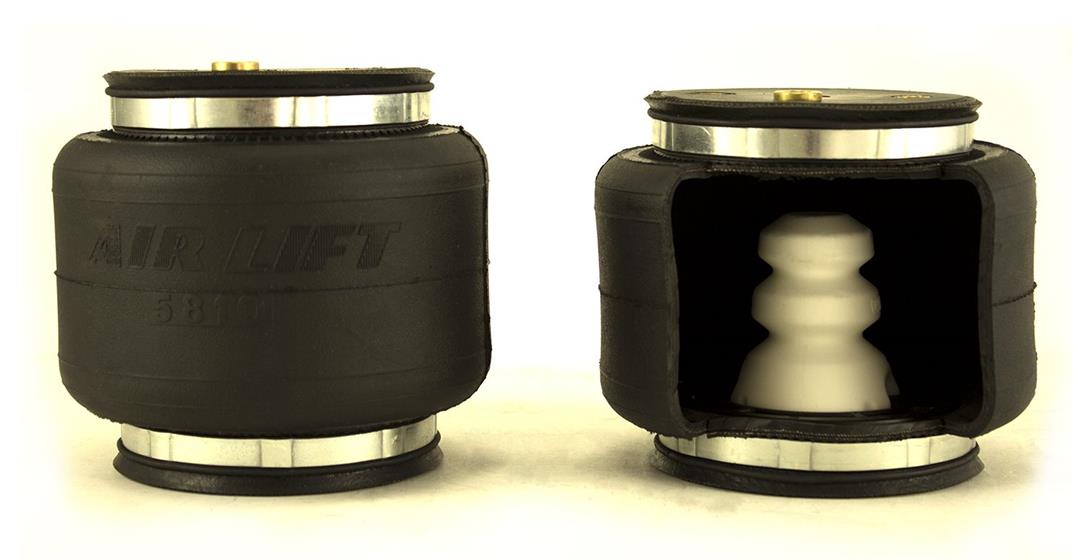

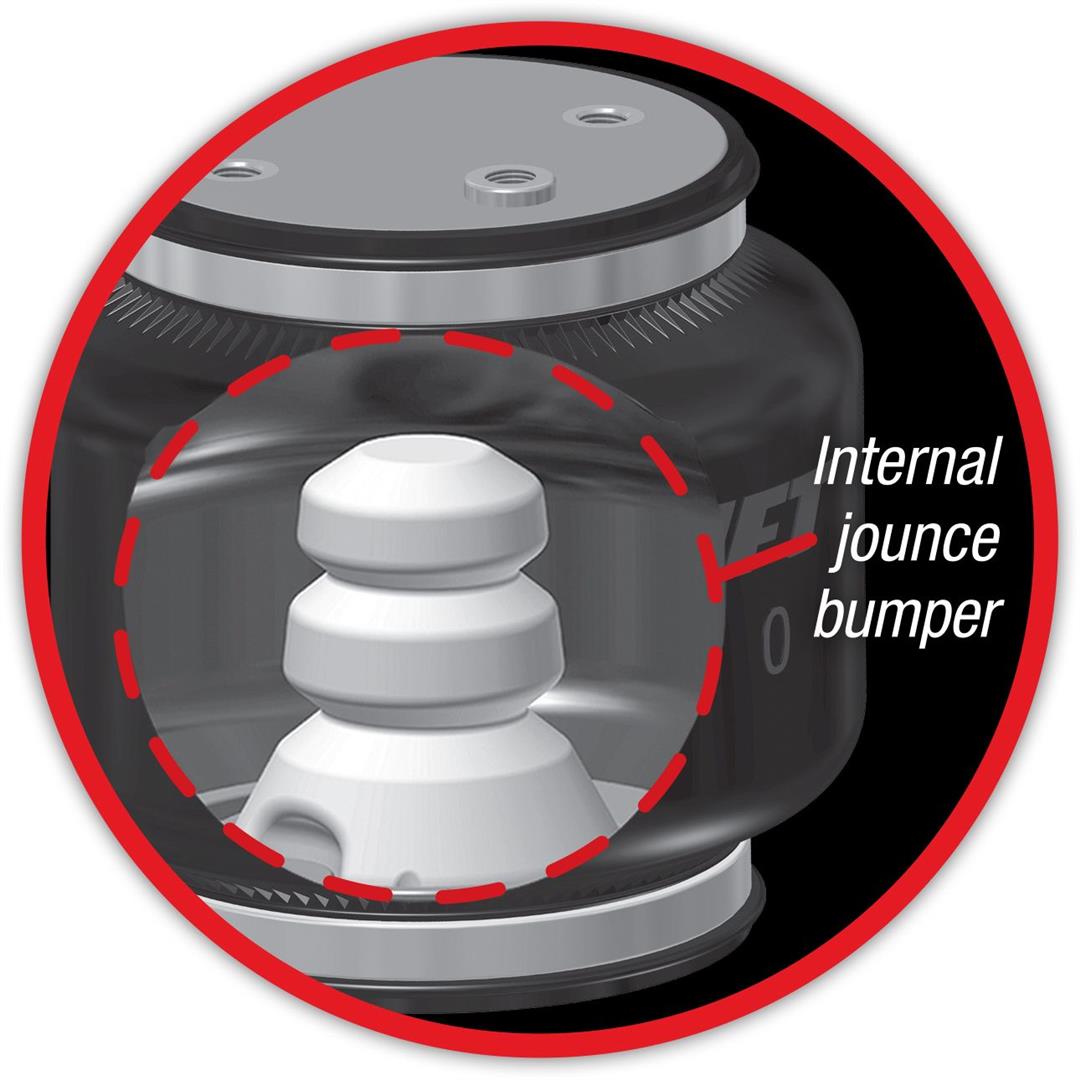

- Internal Jounce Bumper: Integrated closed-cell urethane foam provides a cushion that absorbs shock and allows the spring to run with zero air pressure.
- Load Leveling Capacity: Provides up to 5,000 pounds of leveling capacity to keep the vehicle stable while towing or hauling.
- Adjustable Pressure: Air adjustable from 5 to 100 PSI to accommodate varying load requirements.
- High-Strength Construction: Features 2-ply reinforced fabric air springs and end caps made of ultra high-strength nylon composite.
- Roll Plates: Includes upper and lower roll plates to protect the springs from sharp edges and increase load capacity by up to 10 percent.
Technical Specifications
| Specification | Value |
|---|---|
| Series | LoadLifter 5000 Ultimate |
| System Type | Air Spring / Helper Spring |
| Position | Front |
| Material | Rubber / Nylon Composite End Caps |
| Maximum Pressure | 100 PSI |
| Load Capacity | 5000 Pounds |
| Mounting Type | Frame Mount |
Fitment
- 2009 Ford F-53 Motorhome Chassis

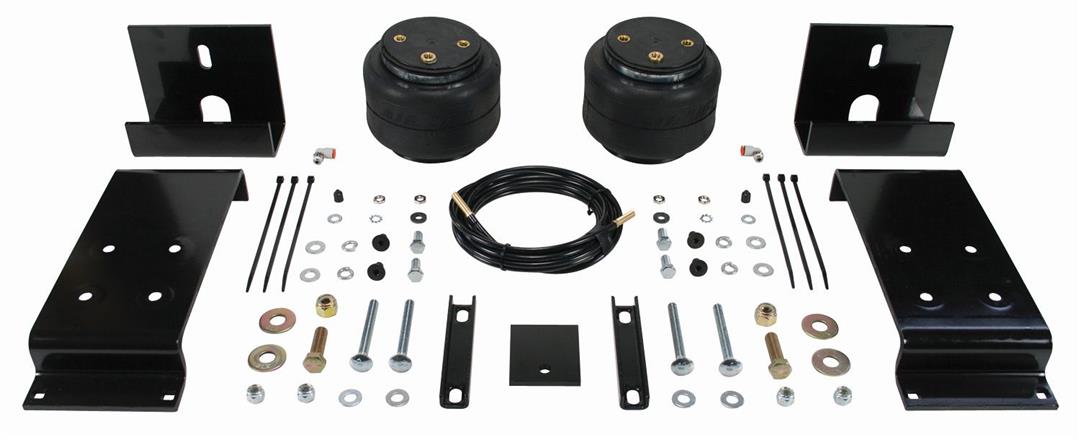

What’s Included
- 2 Air Springs with Internal Jounce Bumpers
- Mounting Brackets
- Air Lines
- Schrader Valves
- Roll Plates
- Installation Hardware
- Illustrated Instruction Manual
Why This Product Exists
- Purpose: This kit addresses vehicle sagging and instability when carrying heavy loads by providing supplemental air support.
- Application: It is used on the 2009 Ford F-53 Motorhome Chassis to assist the factory leaf springs during towing or hauling operations.
Frequently Asked Questions
Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.
Is this product intended for towing?
Yes. This product is designed to provide load leveling capacity for towing and hauling heavy loads as stated in the manufacturer description.
Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
