AirLift Rear Helper Spring Bellows for 2009-2009 Ford F-53 Motorhome Chassis
$216.17
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
AirLift Helper Spring Bellows for 2009-2009 Ford F-53 Motorhome Chassis
Part Number: 84251
Summary:

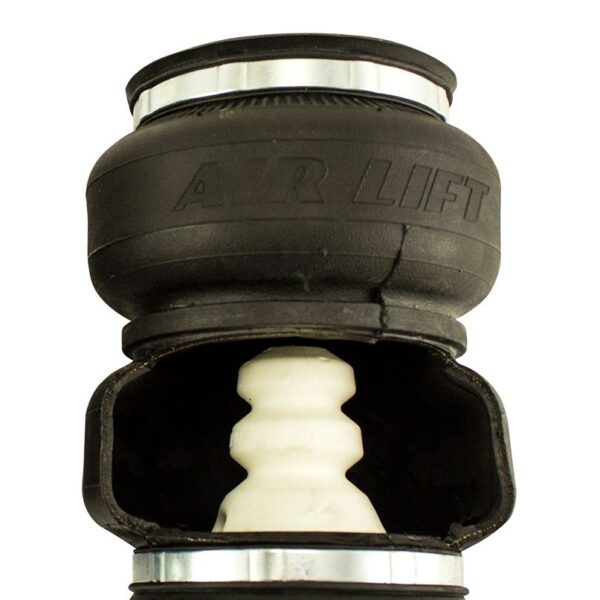

This is a single LoadLifter 5000 Ultimate replacement air spring bellows designed for use when an existing air spring is heavily damaged. The component features a double bellows design with an internal jounce bumper and is constructed from rubber with synthetic fabric reinforcement. It is intended for load support on specific Ford F-53 Motorhome Chassis applications.
This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.
Features

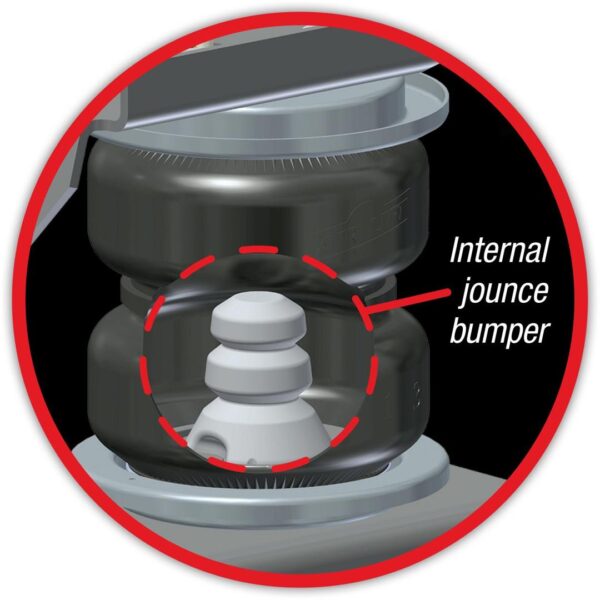

- Internal Jounce Bumper: Integrated internal jounce bumper within the double bellows structure.
- Reinforced Construction: Made from rubber with synthetic fabric reinforcement and a steel girdle ring.
- Composite End Caps: Features high-strength rustproof composite end caps.
Technical Specifications
| Specification | Value |
|---|---|
| Series | LoadLifter 5000 Ultimate |
| System Type | Double Bellows With Jounce Bumper |
| Load Capacity | 2025 Pounds at 100 PSI |
| Material | Rubber |
| Extended Height | 7.0 Inch |
| Compressed Height | 2.3 Inch |
| Diameter | 6.5 Inch |
| Inflation Port Size | 1/8 Inch NPT |
Fitment
- 2009 Ford F-53 Motorhome Chassis
What’s Included
- One (1) Replacement Air Spring Bellows
- Installation Hardware
Why This Product Exists
- Purpose: This product serves as a direct replacement for a LoadLifter 5000 Ultimate air spring that has been heavily damaged.
- Application: It is used in load support systems to provide a 2025-pound load capacity at 100 PSI.
Frequently Asked Questions
Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.
Is this product intended for towing?
This product is a replacement component for a load support system; refer to the original system documentation for towing applications.
Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
