Description

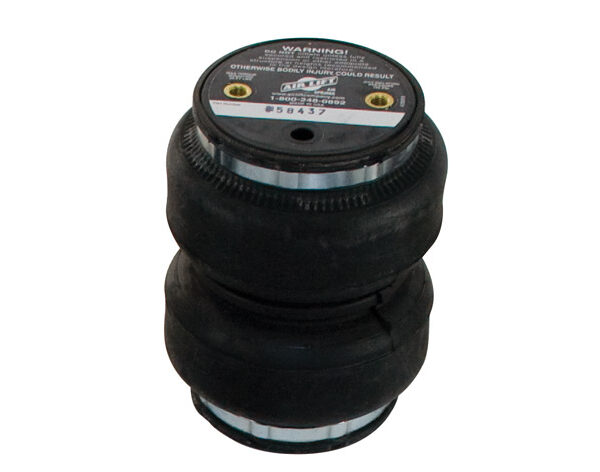

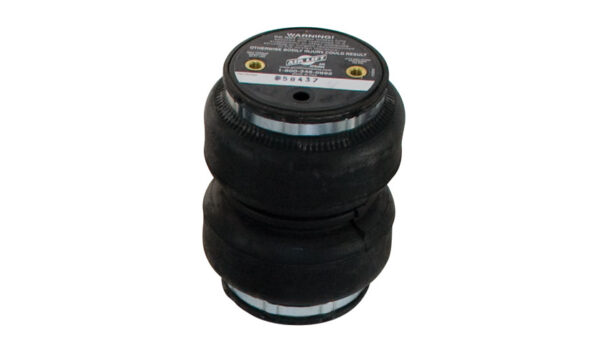

AirLift Rear Helper Spring Bellows for 2015-2018 Chevrolet Silverado 1500

AirLift Rear Helper Spring Bellows for 2015, 2016, 2017, 2018 Chevrolet Silverado 1500

Part: 50297

50297 AirLift Helper Spring Bellows

Helper Spring Bellows; Double Bellows; 9.1 Inch Extended Height; 2.8 Inch Compressed Height; 7 Inch Diameter; 2500 Pound Load Capacity at 100 PSI; 1/8 Inch Port Size; Rubber; Black; Single; With Hardware

Attributes Type: Air Double Bellows Extended Height (IN): 9.1 Inch Compressed Height (IN): 2.8 Inch Diameter (IN): 7 Inch Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch Inflation Port Size: 1/8 Inch NPT Color: Black Material: Rubber Includes Hardware: Yes
LoadLifter 5000 replacement air spring. Includes one (1) air spring
fitting and hardware to re-attach the spring to brackets. Covered by Air Lift’s Lifetime Warranty. This replacement air spring is designed to replace air spring when it is heavily damaged. It is made from rubber with synthetic fabric reinforcement which ensures extreme durability. It consists of steel girdle ring and has high burst pressure
Features & Benefits Includes One Air Spring
Fitting
And Hardware To Re-Attach The Spring To The Brackets Designed To Replace Air Spring When It Is Heavily Damaged Made From Rubber With Synthetic Fabric Reinforcement Which Ensures Extreme Durability Consists Of Steel Girdle Ring And Has High Burst Pressure Refer To The Document Tab For The New Authorized Installer Program Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/AIR/TechnicalBulletins/Air Lift Installer Program.pdf

[Type: Air Double Bellows
Extended Height (IN): 9.1 Inch
Compressed Height (IN): 2.8 Inch
Diameter (IN): 7 Inch
Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch
Inflation Port Size: 1/8 Inch NPT
Color: Black
Material: Rubber
Includes Hardware: Yes
]

Attributes

• Type: Air Double Bellows
• Extended Height (IN): 9.1 Inch
• Compressed Height (IN): 2.8 Inch
• Diameter (IN): 7 Inch
• Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch
• Inflation Port Size: 1/8 Inch NPT
• Color: Black
• Material: Rubber
• Includes Hardware: Yes

Compatibility Notes: LoadLifter 5000 replacement air spring. Includes one (1) air spring
fitting and hardware to re-attach the spring to brackets. Covered by Air Lift’s Lifetime Warranty. This replacement air spring is designed to replace air spring when it is heavily damaged. It is made from rubber with synthetic fabric reinforcement which ensures extreme durability. It consists of steel girdle ring and has high burst pressure
Features & Benefits Includes One Air Spring
Fitting
And Hardware To Re-Attach The Spring To The Brackets Designed To Replace Air Spring When It Is Heavily Damaged Made From Rubber With Synthetic Fabric Reinforcement Which Ensures Extreme Durability Consists Of Steel Girdle Ring And Has High Burst Pressure Refer To The Document Tab For The New Authorized Installer Program Limited Lifetime Warranty

Fitment Notes:

Will Fit Most Side Mount Fifth Wheel Hitch Applications

Position On Vehicle: Rear

[Rear]
