SuperLift 5″ Lift Kit For 2000-2005 Ford Excursion 4WD – Diesel and V-10 – with Bilstein Shocks

Description
SuperLift 5″ Lift Kit For 2000-2005 Ford Excursion 4WD – Diesel and V-10 – with Bilstein Shocks

SuperLift 5″ Lift Kit For 2000, 2001, 2002, 2003, 2004, 2005 Ford Excursion 4WD – Diesel and V-10 – with Bilstein Shocks

Part: K648B

• This is a complete front Superide leaf spring lift kit for the 2000-2005 Ford Excursion 4wd V-10 and diesel engine; providing 5” lift height
• Includes track bar bracket, rear blocks, front and rear 5100 Series Bilstein shocks
• Covered by our Limited Lifetime Warranty
• This kit also comes in a Superlift Superide shock option

Include:

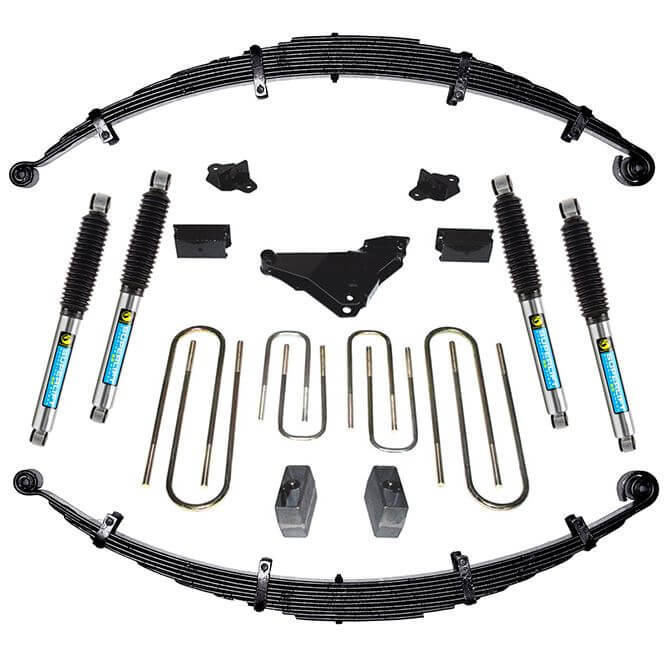

• Front leaf springs, track bar bracket, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2000-2005 4wd Ford Excursion.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

• Track bar relocation bracket prevents steering wheel “kick”
• Rear lift via 4″ blocks
• Front and rear Bilstein shocks included
• Lifetime Warranty
• Satisfaction Guarantee

Note: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option’s list or call our technical support line for additional details.

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 6 hours
• Difficulty level: 3 of 5

Additional Info:

Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2″ of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.

Rear lift based on vehicles with 2.5″ tall factory. If vehicle equipped with 3.5″ tall factory block expect slight rear to front rake.

Includes Shocks exactly as pictured
