SuperLift 5″ Lift Kit 2000-2005 Ford Excursion 4WD Diesel/V-10 Bilstein Shocks

Description
SuperLift 5″ Lift Kit 2000-2005 Ford Excursion 4WD Diesel/V-10 Bilstein Shocks

SuperLift 5″ Lift Kit 2000, 2001, 2002, 2003, 2004, 2005 Ford Excursion 4WD Diesel/V-10 Bilstein Shocks

Part: K648B

What is this?

• This is a complete front Superlift leaf spring lift kit for the 2000-2005 Ford Excursion 4WD V-10 and diesel engine
• Provides 5” lift height
• Includes track bar bracket, rear blocks, front and rear Superlift shocks or rear 5100 Series Bilstein shocks

What does it include?

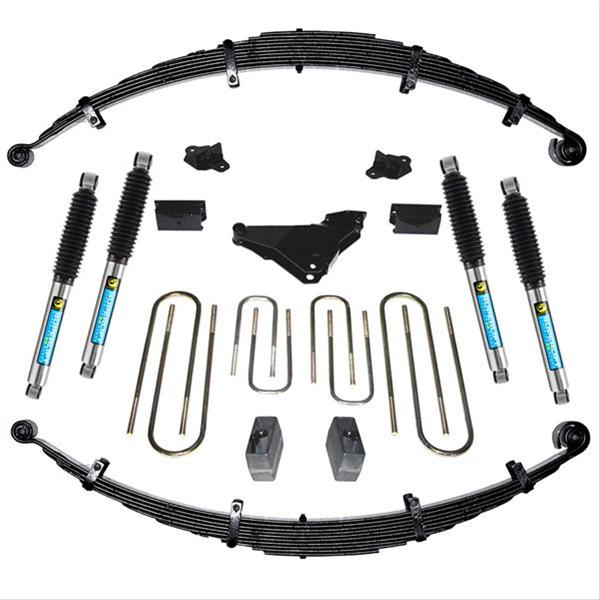

• Front leaf springs, track bar bracket, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2000-2005 4WD Ford Excursion.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

KEY DETAILS:

Superlift’s complete front Superlife leaf spring lift kit for the 2000-2005 Ford Excursion 4wd V-10 and diesel engine, providing 5” of lift height.

Replacement Superlift springs provide front lift, while 4″blocks raise the rear. The lift kit also includes a track bar relocation bracket, to align the body with the front axle, front suspension compression bump-stops, hardware to prevent front sway bar preload, a complete U-bolt kit and choice of front/rear Superide shocks or rear 5100 Series Bilstein shocks.

Options include a factory replacement steering stabilizer cylinder, and a dual stabilizer kit.

• Track bar relocation bracket prevents steering wheel “kick”
• Rear lift via 4″ blocks
• Front and rear Superlift shocks OR Bilstein shocks included

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

• Installation time: 6 hours
• Difficulty level: 3 of 5

Additional Info:

• Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2″ of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.
• Rear lift based on vehicles with 2.5″ tall factory. If vehicle equipped with 3.5″ tall factory block expect slight rear to front rake.

NOTE:

• This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us.

Fits:

• 2000-2005 Ford Excursion DIESEL

Important fitment notes from manufacturer:

Additional information
