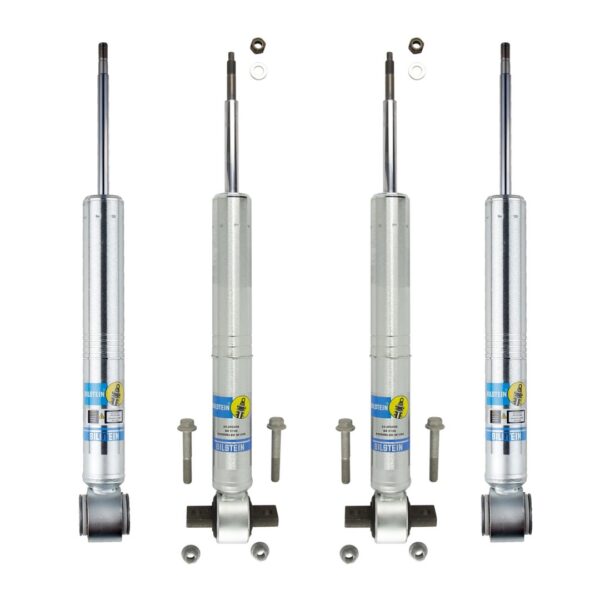

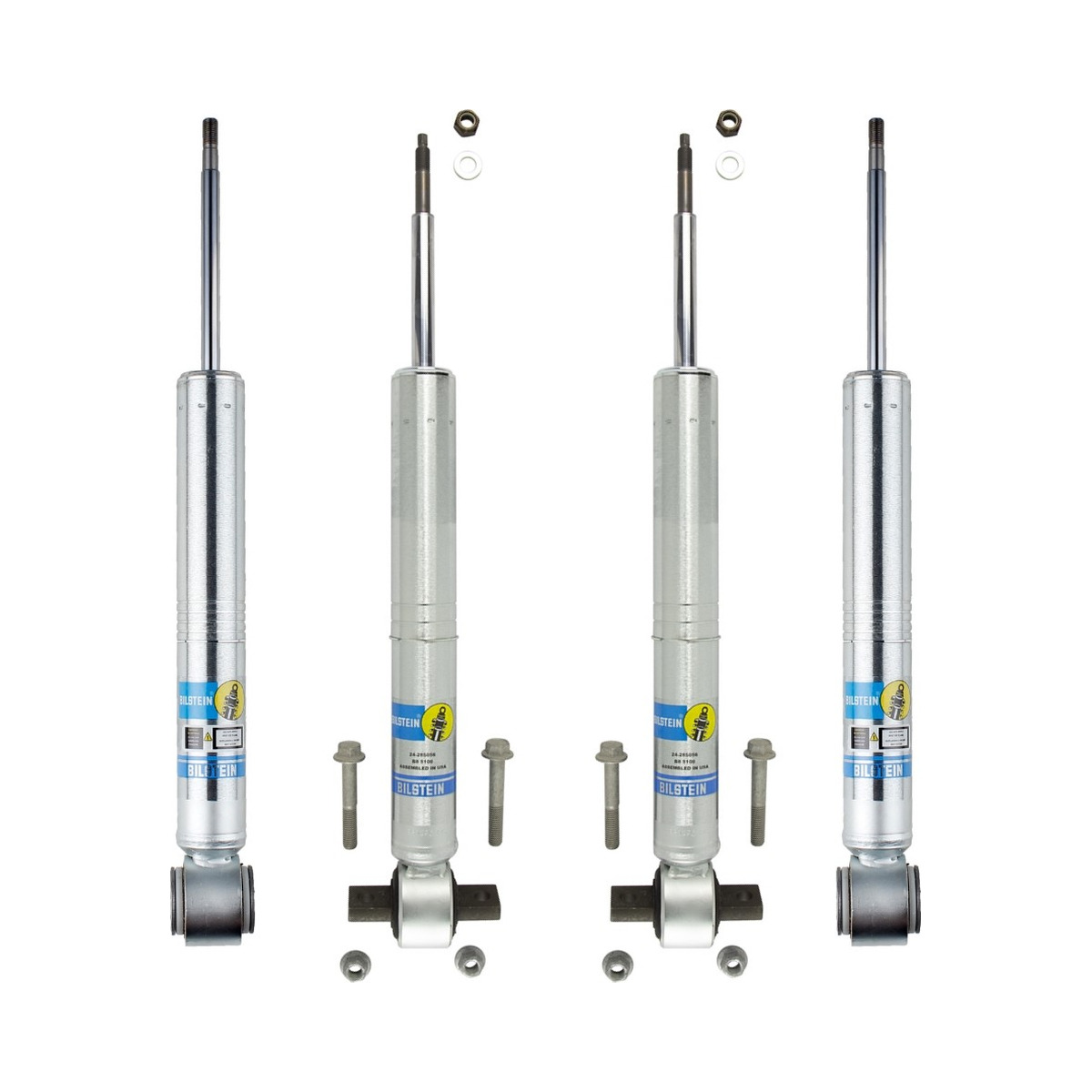

Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014-2025 Ford Expedition 2WD/4WD

Sale!
Bilstein B8 5100 RHA 0-1.6" Front, 0-1.5" Rear Lift Shocks For 2014-2020 Ford Expedition 2WD/4WD
Bilstein B8 5100 RHA 0-1.6" Front, 0-1.5" Rear Lift Shocks For 2014-2020 Ford Expedition 2WD/4WD

Description
Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014-2025 Ford Expedition 2WD/4WD

Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford Expedition 2WD/4WD

Part: 2×24-285056_2x24-285063

Need them assembled into coilovers with OE Replacement coils?

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front Shocks: 24-285056

  • Collapsed Length (IN): 16.1
  • Extended Length (IN): 20.95
  • Collapsed Length (MM): 409.0
  • Extended Length (MM): 532.0
  • Finish: Zinc Plated
  • Reservoir: No
  • Aftermarket Upper Arms Required: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 46mm

Front Shocks Notes:

  • Without Electronic Controlled Suspension (CCD)

Rear Shocks: 24-285063

  • Collapsed Length (IN): 15.00
  • Extended Length (IN): 20.95
  • Collapsed Length (MM): 381.0
  • Extended Length (MM): 531.5
  • Finish: Zinc Plated
  • Reservoir: No
  • Aftermarket Upper Arms Required: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 46mm
  • Replacement Mounting Kit: B4-KT1-Z293A00

Rear Shocks Notes:

  • Without Load Leveling Suspension
  • Without Electronic Controlled Suspension (CCD)

Additional information

Weight 46.2 lbs
Dimensions 26.8 × 8.3 × 7.1 in
