Description
SuperLift 6″ Lift Kit w/ Bilstein Shocks for 2004-2008 Ford F-150 4WD

SuperLift 6″ Lift Kit w/ Bilstein Shocks for 2004, 2005, 2006, 2007, 2008 Ford F-150 4WD

Part: K174B

  • This is a complete replacement knuckle style suspension Lift Kit for the 04-08 Ford F-150 4WD
  • Provides 6” lift height
  • Includes fabricated rear lift blocks and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers.

Include:

  • All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 04 – 08 4wd Ford F-150.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

PRODUCT DETAILS:

Features:

  • Direct bolt-on (No Weld Design)
  • Allows the use of 18″ or larger factory wheels
  • Makes room for up to 35″ tires
  • Maintains awesome ride quality and handling characteristics
  • Aligns to OEM specifications
  • Corrects front to rear factory rake
  • Retains OEM track width

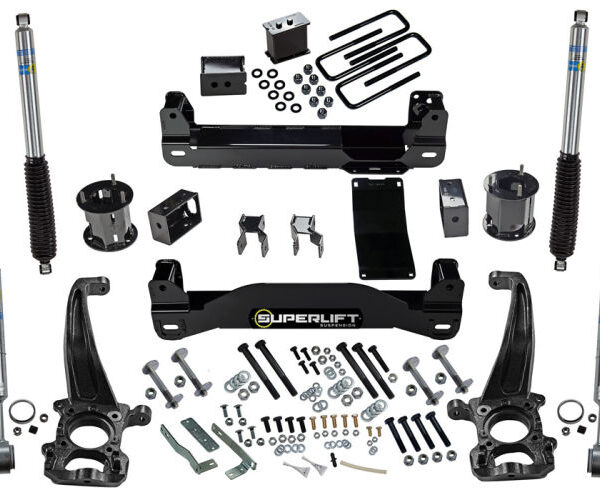

Includes:

Front

  • CNC machined extended ductile iron steering knuckles
  • CNC machined billet aluminum driveshaft spacer
  • All fabricated steel components are laser cut, CNC formed finished with a durable black powder coat
  • Front top mount strut spacers
  • One-piece front and rear cross members
  • Front differential skid plate
  • Sway-bar relocation brackets
  • Differential relocation brackets
  • Brake line relocation brackets
  • Eccentric cam-bolts

Rear

  • Fabricated lift blocks
  • Brake line relocation bracket
  • U-bolts and hardware
  • Compression stop extensions
  • Superlift Shocks (2) OR Bilstein Shocks (2)

TIRE & WHEEL INFO:

Tire Wheel Backspacing Offset
35 x 12.5 18 x 9 4.5 -5.7 inch –
35 x 12.5 20 x 9 4.5 -5.7 inch –
35 x 12.5 22 x 9 4.5 -5.7 inch –


IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

  • Installation time: 8 hours
  • Difficulty level: 3 of 5

Additional information

Weight 100 lbs
Dimensions 40 × 15 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
