Bilstein 6112 0-1.75″ Assembled Front Lift Coilovers with 5160 Reservoir Shocks for Ford F-150 2009-2013 4WD

Bilstein 6112 0-1.75" Assembled Front Lift Coilovers with 5160 Reservoir Shocks for Ford F-150 2009-2013 4WD

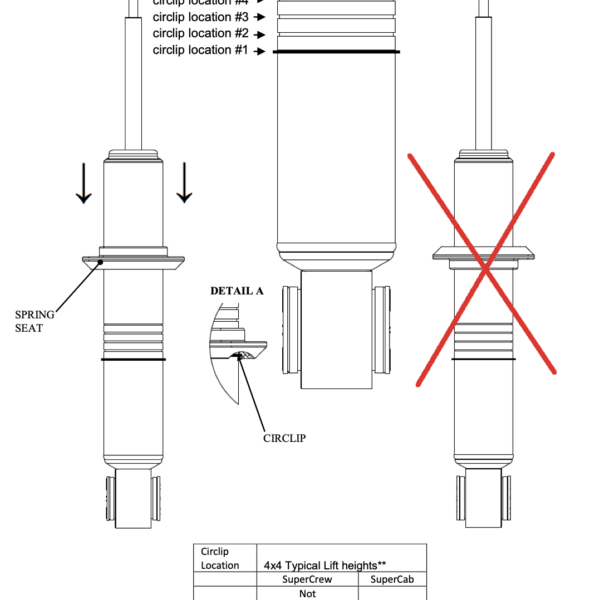

47-244634 clip settings
Bilstein 6112 0-1.75" Assembled Front Lift Coilovers with 5160 Reservoir Shocks for Ford F-150 2009-2013 4WD
47-244634 clip settings

Description

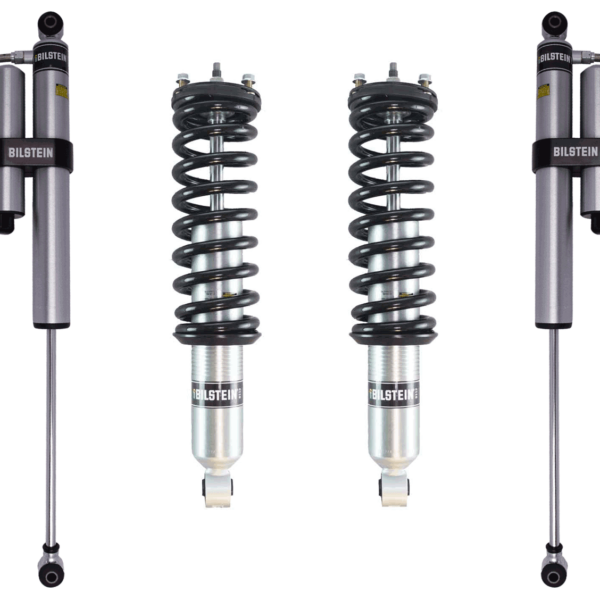

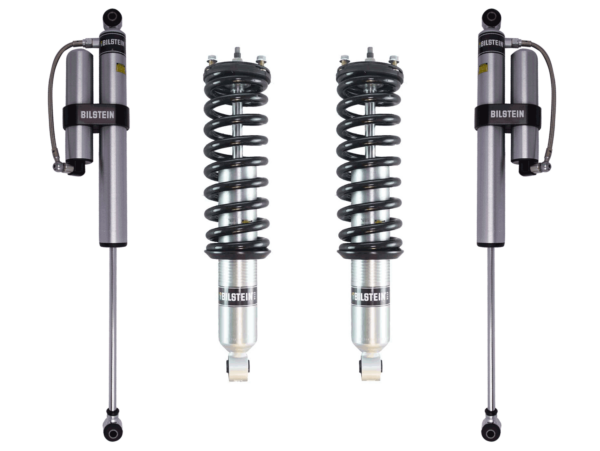

Bilstein 6112 0-1.75″ Assembled Front Lift Coilovers with 5160 Reservoir Shocks for Ford F-150 2009-2013 4WD

Bilstein 6112 0-1.75″ Front Coilovers with 5160 Reservoir Shocks for Ford F-150 2009, 2010, 2011, 2012, 2013 4WD

47-310698-ASBRSR

Front Shocks:

  • Series: 6112
  • Front Extended Length(in):
  • Front Collapsed Length(in):
  • Part Number: 47-310698 (previous 47-244634)

Rear Shocks (25-311280):

Introducing the Bilstein B8 New Version 5160 0-1 Rear Lift Reservoir Shocks, specially designed for 2009-2013 Ford F150 4WD trucks. If you’re looking to enhance your vehicle’s overall performance, these remote reservoir shock absorbers are the perfect solution for lifted trucks and SUVs.

Featuring a monotube design, the Bilstein B8 5160 remote reservoir shock absorbers offer consistent fade-free performance and utilize velocity sensitive digressive valve settings, specially tuned for each application. The remote reservoir provides increased cooling capacity and wheel travel, allowing you to conquer the harshest off-road environments with ease.

These shock absorbers are fitted with a unique 360-degree swivel banjo hose fitting and an attractive billet reservoir mount, where applicable, providing a clean, low-profile installation. The Bilstein B8 5160 remote reservoir shock absorbers are made to increase the overall durability of your vehicle, making them the perfect addition to your Ford F150 4WD.

Specifications:

  • Collapsed Length (IN): 17.34
  • Extended Length (IN): 28.93
  • Collapsed Length (MM): 440.5
  • Extended Length (MM): 734.7
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Billet Reservoir Clamp Included: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Spring Seat Included: No
  • Adjustable Damping: Non-Adjustable

Fitment: Bilstein 6112 0-1.75″ Front Lift Kit for Ford F-150 2009-2013 4WD

Comes Assembled with new top mounts, bushings, hardware

Additional information

Weight 63 lbs
Dimensions 28.01 × 10.01 × 7.51 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
