SuperLift 6″ Lift Kit For 2009-2014 Ford F-150 4WD – w/ Bilstein Rear Shocks

SuperLift 6″ Lift Kit For 2009, 2010, 2011, 2012, 2013, 2014 Ford F-150 4WD – w/ Bilstein Rear Shocks

Part: K179B (old: K105B)

  • This is a complete replacement knuckle style suspension Lift Kit for the 2009-2014 Ford F-150 4WD; providing 6” of lift height.
  • Includes fabricated rear lift blocks and rear 5100 Series Bilstein shock absorbers.
  • Covered by our Limited Lifetime Warranty.
  • This kit also comes in a Superlift Superide rear shock option.

Include:

  • All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 2009-2014 4wd Ford F-150.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
  • The best customer service and technical help in the industry.

PRODUCT DETAILS:

  • Direct bolt-on (No Weld Design)
  • Allows the use of 18″ or larger factory wheels
  • Makes room for up to 35″ tires
  • Maintains awesome ride quality and handling characteristics
  • Aligns to OEM specifications
  • Corrects front to rear factory rake
  • Retains OEM track width
  • Simple to follow DIY friendly instructions
  • Lifetime Warranty
  • 60-Day Satisfaction Guarantee

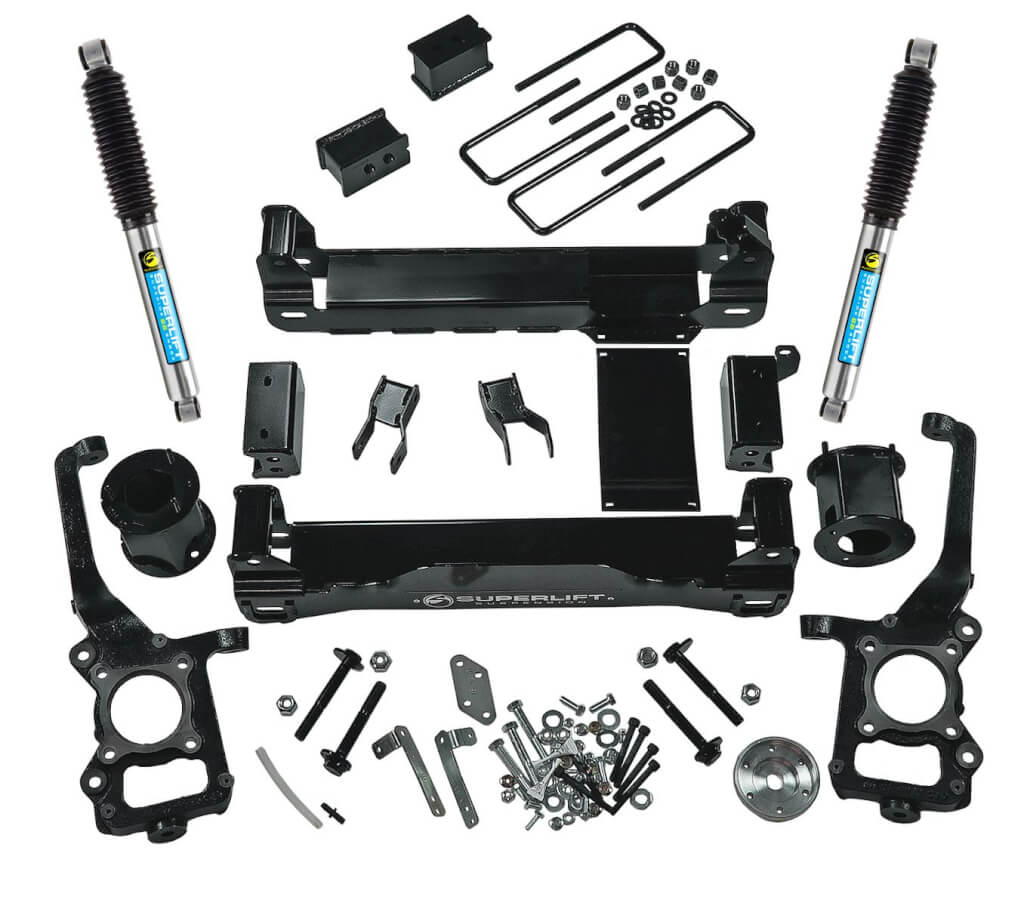

Includes:

Front

  • CNC machined extended ductile iron steering knuckles
  • CNC machined billet aluminum drive shaft spacer
  • All fabricated steel components are laser cut, CNC formed finished with a durable black powder coat
  • Front top mount strut spacers
  • One-piece front and rear cross members
  • Front differential skid plate
  • Sway-bar relocation brackets
  • Differential relocation brackets
  • Brake line relocation brackets
  • Eccentric cam-bolts

Rear

  • Fabricated lift blocks
  • Brake line relocation bracket
  • U-bolts and hardware
  • Compression stop extensions
  • Bilstein Shocks (2)

Notes:

  • Does not fit Single Cab Truck models
  • Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims

FITMENT TABLE:

YEARS DRIVE MAKE MODEL
2009-2014 4WD Ford F-150

TIRE & WHEEL INFO:

TIRE WHEEL BACKSPACING OFFSET
35 x 12.5 18 x 9 5.3 +19
35 x 13.5 18 x 9 5 +13
35 x 13.5 18 x 9 4.5 –
35 x 12.5 20 x 9 5.5 +25
35 x 13.5 20 x 9 5 +13
35 x 13.5 20 x 9 4.5 –
35 x 12.5 20 x 10 4.3 -19

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

  • Installation time: 8 hours
  • Difficulty level: 3 of 5

Includes Shocks exactly as pictured

Additional information

Weight 100 lbs
Dimensions 40 × 15 × 10 in
