Zone Offroad 4″ Strut Spacer 2014 Ford F150 4WD

Sale!
Zone Offroad 4" Strut Spacer 2014 Ford F150 4WD
Zone Offroad 4" Strut Spacer 2014 Ford F150 4WD
Zone Offroad 4" Strut Spacer 2014 Ford F150 4WD
Zone Offroad 4" Strut Spacer 2014 Ford F150 4WD

Description
Zone Offroad 4″ Strut Spacer 2014 Ford F150 4WD

Zone Offroad 4″ Strut Spacer 2014 Ford F150 4WD

Part: F41

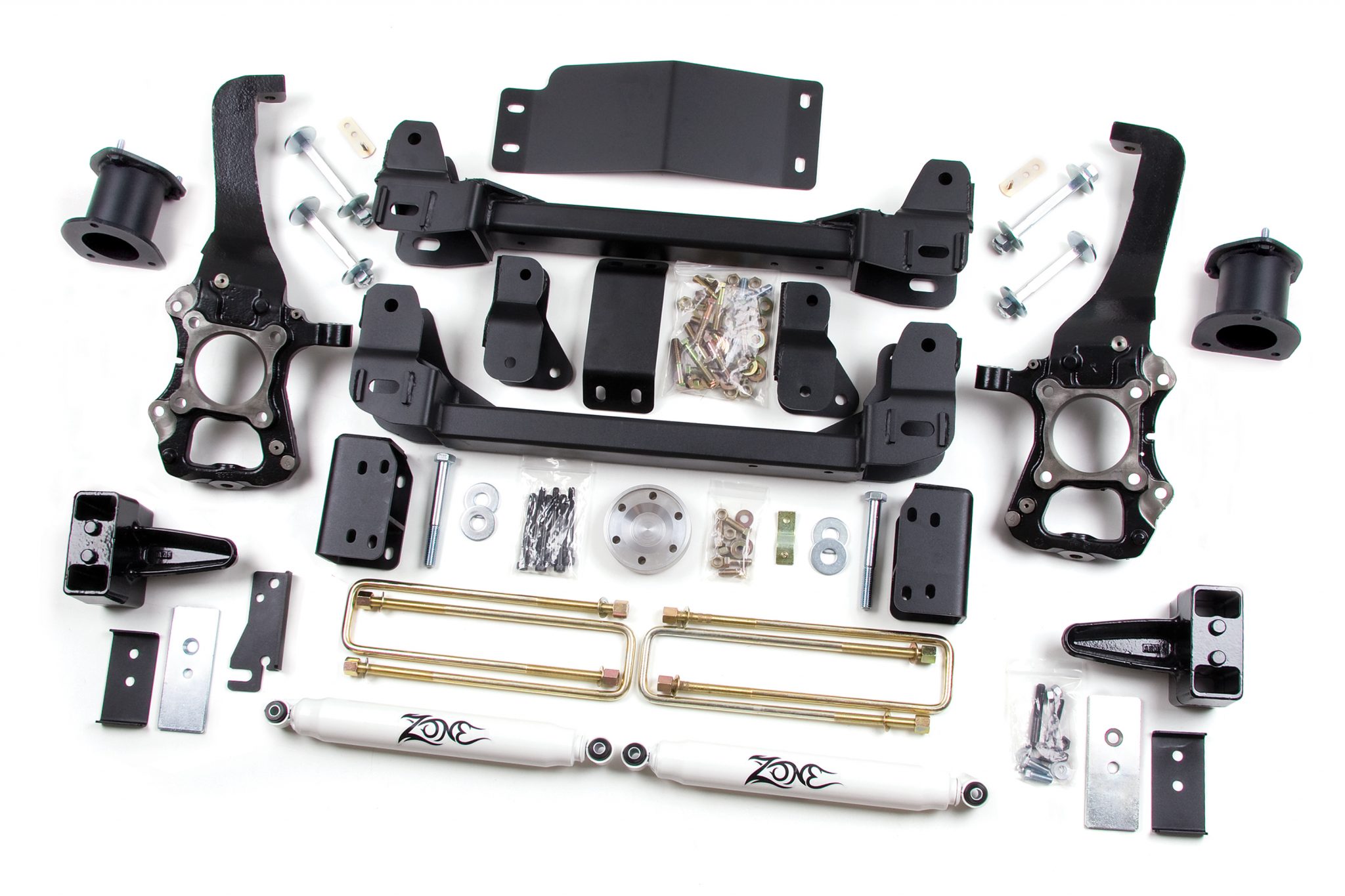

Zone Offroad 2014 Ford F150 4″ Suspension System.

This 4″ lift uses many of the heavy duty components from our 6″ lift. Full width crossmembers and beefy steering knuckles as well as proper differential drop brackets and a differential skid plate make this one tough kit. Like the 6″ kit, this 4″ kit uses new bolt-on upper strut spacers that work with the new 2014 strut configuration. The bolt-on spacer does not require disassembly of the strut (no strut compressor). In the rear a 4″ lift block is used after removing the factory block and nets a level-to-slightly tail high stance.

The kit is available with standard or Nitro rear shocks.

Featured Technology & Benefits

  • CNC Machined Steering Knuckles correctly drilled for the application
  • Heavy 1/4″ thick crossmembers
  • No Track Width Change
  • Differential Skid Plate Included

Important Notes!

  • AWD models will require front driveshaft modification
  • Will not work with 17″ wheels
  • If using 18×9 wheels with 5.5″ backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
  • Vehicles equipped with factory powersteps will require E-Brake Relocation Bracket F5608.
  • Vehicles equipped with a 2 piece rear driveshaft and carrier bearing may require carrier bearing drop kit # D5405.

This product fits the following applications:

  • 2014 Ford F150 4WD

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Strut Spacer
  • Rear Lift Height: 4″
  • Rear Lift Method: Block & U-Bolt Kit
  • Install Time Hrs: 6-8
  • Difficulty Level 1-5: 3
  • Wheel Size: 18×9
  • Back Spacing: 5″
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 20×9
  • Back Spacing: 5-5.5″
  • Max Tire Size: 35 x 12.50

Additional information

Weight 100 lbs
Dimensions 35 × 12 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

Original price was: $1,444.95.Current price is: $1,300.46.

Only 3 left in stock

SKU: F41 Categories: , , Brand:
