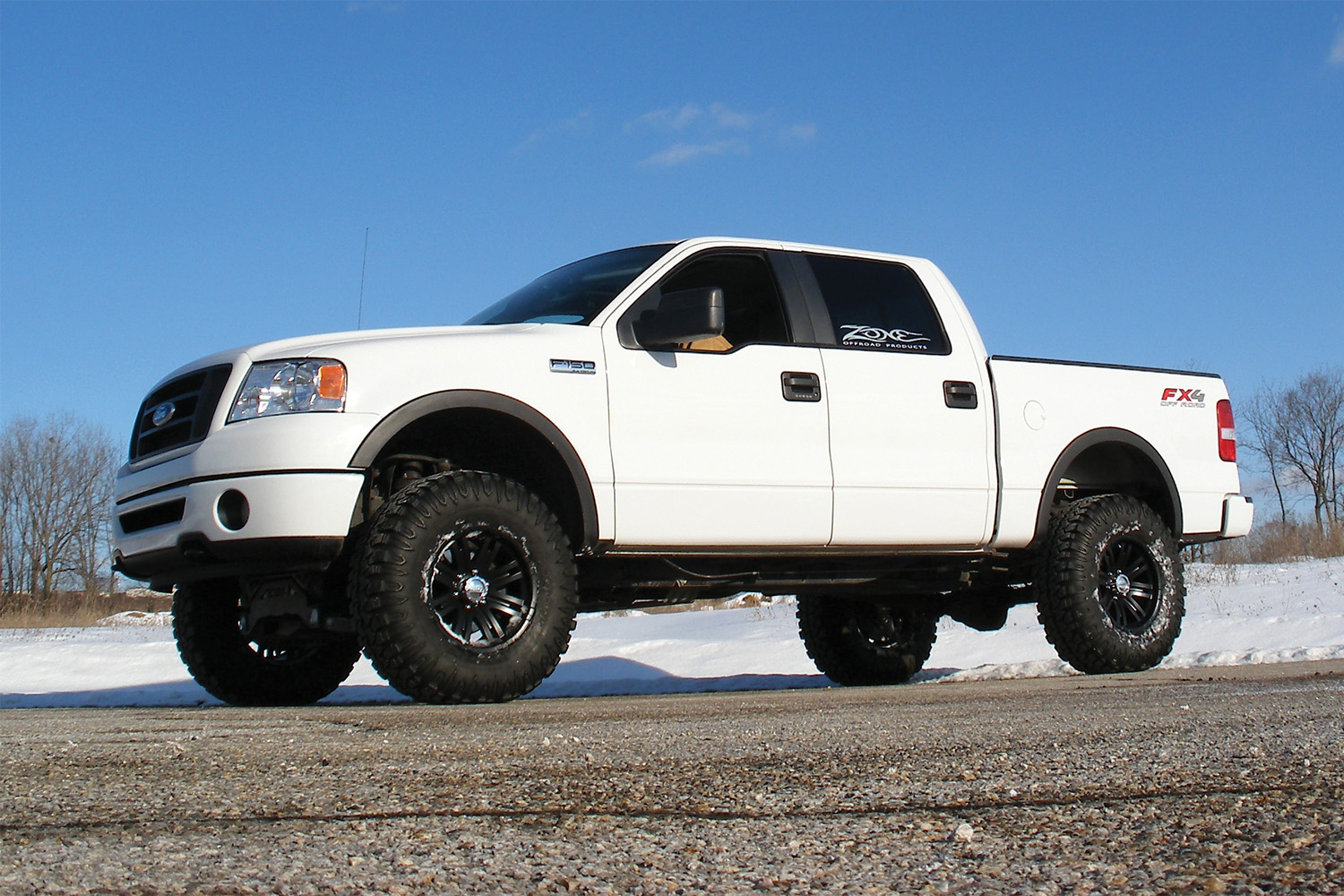

Zone Offroad 6″ IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Sale!
Zone Offroad 6" IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD
Zone Offroad 6" IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD
Zone Offroad 6" IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD
Zone Offroad 6" IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Description
Zone Offroad 6″ IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Zone Offroad 6″ IFS System w/Upper Strut Mounts Lift Kit 2004, 2005, 2006, 2007, 2008 Ford F150 4WD

Part: F7N

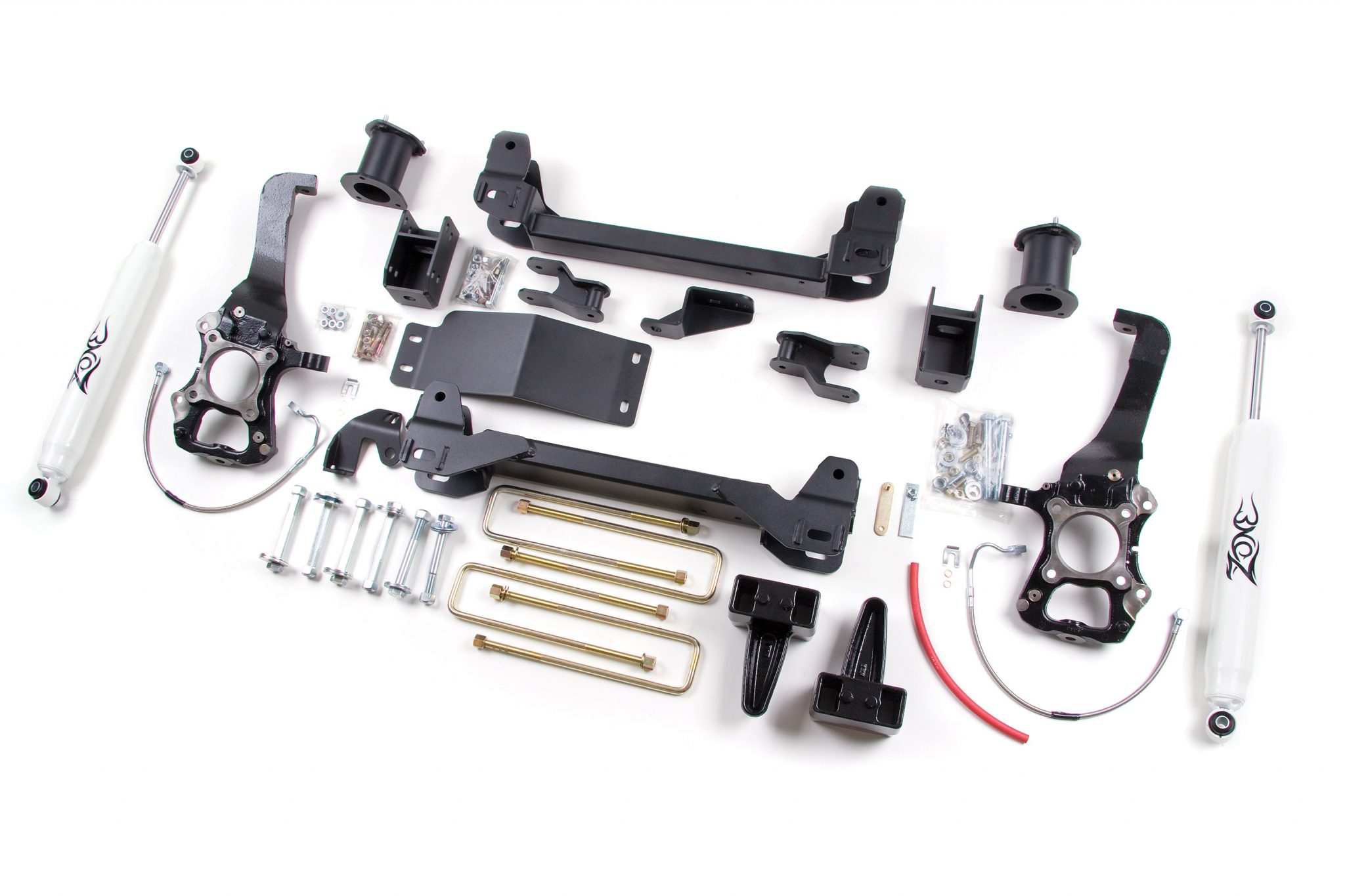

Finally, performance and quality at a price you can afford! The upper strut spacer, and the rear block kit, not only make for an easy install, but ensure factory ride quality. Combine these factors with the massive crossmembers, CNC machined steering knuckles and differential skid plate and you have a suspension system that can’t be beat. A rear add-a-leaf is available for a tail high stance.

Featured Technology & Benefits

  • No track width change
  • Factory like ride and handling
  • CNC Machined knuckles for reduced installation time

Important Notes!

  • AWD models will require front driveshaft modification.
  • Will not fit HD models with 7 Lug wheels.
  • Although rare, some models may require rear driveshaft spacer (F5601) with the 6″ system.

This product fits the following applications:

  • 2004 Ford F150 4WD
  • 2005 Ford F150 4WD
  • 2006 Ford F150 4WD
  • 2007 Ford F150 4WD
  • 2008 Ford F150 4WD

Quick Specs

  • Front Lift Height: 6″
  • Front Lift Method: IFS System w/Upper Strut Mounts
  • Rear Lift Height: 5″
  • Rear Lift Method: Block & U-bolt Kit
  • Install Time Hrs: 8
  • Difficulty Level 1-5: 3
  • Wheel Size: 17 X 9
  • Back Spacing: 4.5
  • Max Tire Size: 35 X 12.50
  • Wheel Size: 18 X9
  • Back Spacing: 4.5-5
  • Max Tire Size: 35 x 12.50
  • Wheel Size: 20 X 9
  • Back Spacing: 4.5-5.5
  • Max Tire Size: 35 X 12.50

Additional information

Weight 100 lbs
Dimensions 32 × 12 × 10 in
