SuperLift 4″ Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

Description
SuperLift 4″ Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

SuperLift 4″ Lift Kit 2000, 2001, 2002, 2003, 2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

Part: K632B

What is this?

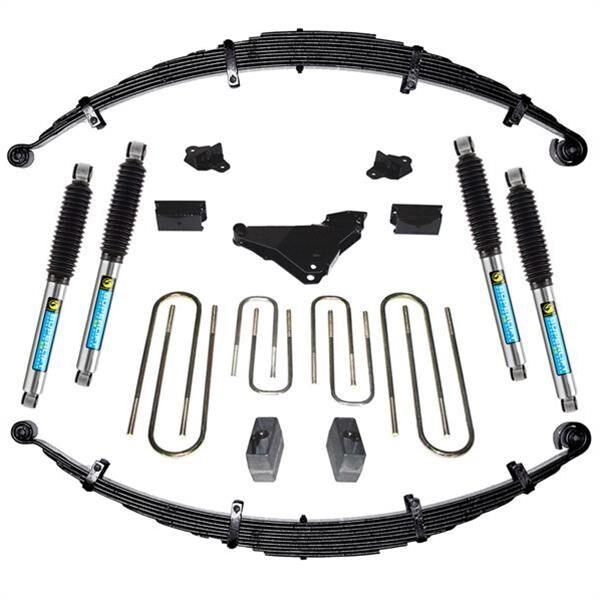

• This is a complete front Superlift leaf spring lift kit for the Ford F-250/F-350 4WD V-10 and diesel engine
• Provides 4” lift height
• Includes rear blocks, track bar bracket, front and rear Superlift shocks or rear 5100 Series Bilstein shocks

What does it include?

• Front leaf springs, track bar bracket, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the Ford F-250
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

KEY DETAILS:

Superlift’s complete front Superide leaf spring lift kit for your Ford F-250/F-350 4WD V-10 and diesel engine.

Features:

• Springs incorporate military-wrapped spring eyes and anti friction pads between leafs
• Track bar relocation bracket prevents steering wheel “kick”
• New front anti-sway bar hardware maintain factory bar geometry
• Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated
• Rear lift via 3″ blocks
• Front and rear Superlift shocks or Superlift SS series shocks by Bilstein included

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

• Installation time: 6 hours
• Difficulty level: 3 of 5

Additional Info:
Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approx. 2″ of excess U-bolt length (that can be trimmed). Or for shorter U-bolts, refer to block chart and replace listed block kit with the non-overload application.

Rear lift based on vehicles with 2.5″ tall factory. If vehicle equipped with 3.5″ tall factory block expect slight rear to front rake.

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option’s list or call our technical support line for additional details.

Fits:

• 2000-2004 Ford F-250 Super Duty DIESEL
• 2000-2004 Ford F-350 Super Duty DIESEL

Important fitment notes from manufacturer:
