SuperLift 6″ Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

SuperLift 6" Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks
SuperLift 6" Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

Description
SuperLift 6″ Lift Kit 2000-2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

SuperLift 6″ Lift Kit 2000, 2001, 2002, 2003, 2004 Ford F-250/F-350 Super Duty 4WD Diesel/V-10 Bilstein Shocks

Part: K638B

What is this?

  • This is a complete front Superlift leaf spring Lift Kit for the 2000-2004 and 1999 Ford F-250/F-350 4WD V-10 and diesel engine – made on or after 3/1/99
  • Provides 6” lift height
  • Includes rear blocks, track bar bracket, front and rear Superlift shocks or front and rear 5100 Series Bilstein shocks.

What does it include?

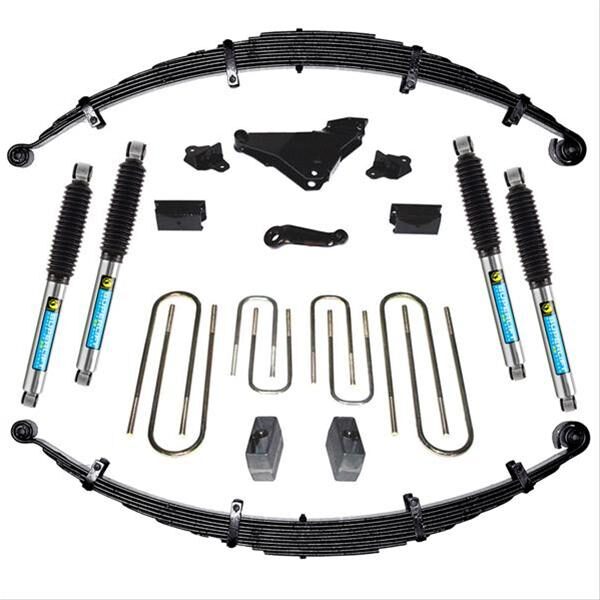

  • Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all hardware required specific to the 2000-2004 or 1999 4WD Ford F-250 Made on or after 3-1-99
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Features:

  • Springs incorporate military-wrapped spring eyes and anti-friction pads between leafs
  • Track bar relocation bracket prevents steering wheel “kick”
  • New front anti-sway bar hardware maintain factory bar geometry
  • Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated
  • Rear lift via 5″ blocks Front and rear shocks included

TIRE & WHEEL INFO:

Tire Wheel Backspacing Offset
37 x 12.5 17 x 9 4.5 –

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

  • Installation time: 6 hours
  • Difficulty level: 3 of 5

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us.

Fits:

  • 2000-2004 Ford F-250 Super Duty DIESEL
  • 2000-2004 Ford F-350 Super Duty DIESEL

Important fitment notes from manufacturer:



Additional information

Weight 100 lbs
Dimensions 40 × 15 × 10 in
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

Related products

$1,819.99

Only 2 left in stock

SKU: K638B Categories: , Brand: ,
