SuperLift 4″ Spacer Lift Kit For 2017-2025 Ford F-250 and F-350 Super Duty 4WD – Gas and Diesel

Description
SuperLift 4″ Spacer Lift Kit For 2017-2025 Ford F-250 and F-350 Super Duty 4WD – Gas and Diesel

SuperLift 4″ Spacer Lift Kit For 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford F-250 and F-350 Super Duty 4WD – Gas and Diesel

Part: K163

• This is a complete bracket style suspension Lift Kit for the 2017-2017 and newer Ford F-250 / F-350 Super Duty 4WD – all engine; providing 4” of lift height.
• Includes coil spacers, rear block and u-bolt kit, track bar bracket and related brackets.
• Covered by our Limited Lifetime Warranty.

NOTE: GAS Engine equipped trucks will require exhaust modifications.

Include:

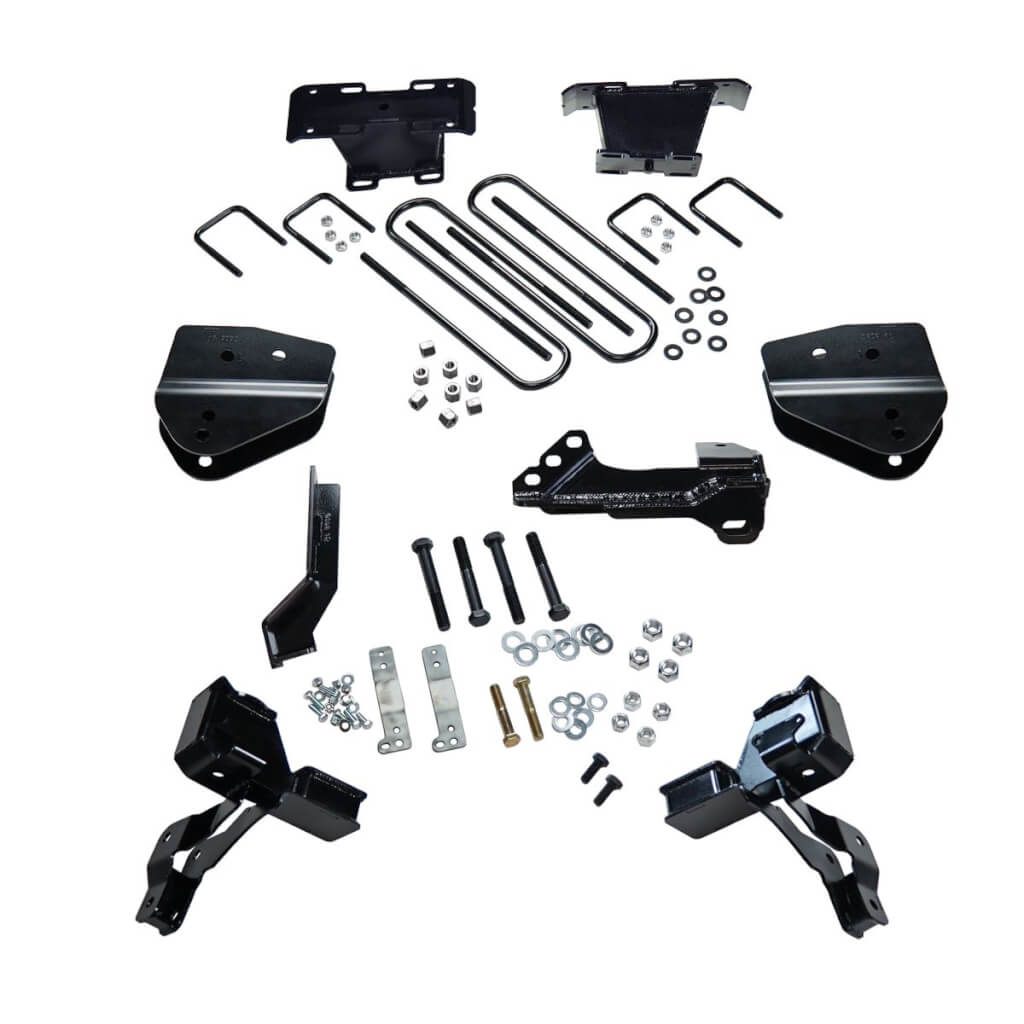

• Front coil spring spacers, shock brackets, track bar bracket, radius arm drops, brake line brackets, steering stabilizer bracket and all hardware needed for installation.
• Rear fabricated blocks with ubolts.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

Superlift’s engineers set out to design a complete, bolt on system for the 2017-2018 Ford F-250 and F-350 Super Duty 4WD’s that can be purchased on a budget. This Super Duty lift kit integrates the coil spacer, shock relocation, and the bump stop spacer all into one bracket for a super easy install. The other front components also included are a track bar relocation bracket to keep the axle centered, radius arm drop brackets to maintain the proper caster specifications, and brake line relocation brackets.  The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block.

NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9649

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724

NOTE: GAS Engine equipped trucks will require exhaust modifications.

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 4 hours
• Difficulty level: 2 of 5

DOES IT WORK ON A DUALLY?

The kit work for the front on a dually. The primary issue with dually trucks is the rear u-bolts. We have to confirm axle tube diameter and length required and see if we have a u-bolt available, or, if they will have to be made at a shop near you.
