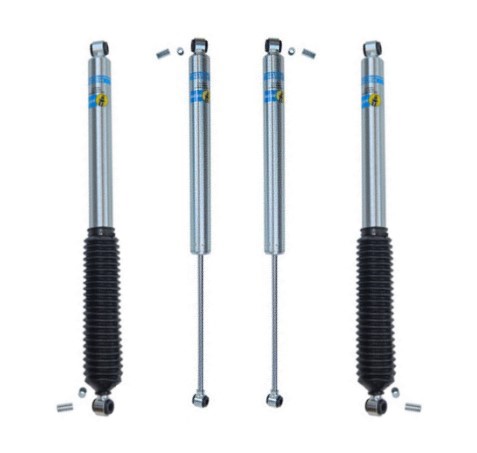

Bilstein 5125 8″ Front, Rear Shocks For 2000-2004 Ford F-350 Super Duty 4WD Diesel

Sale!
Bilstein 5100 8" Front, Rear Shocks For 2000-2004 Ford F-350 Super Duty 4WD Diesel
Bilstein 5100 8" Front, Rear Shocks For 2000-2004 Ford F-350 Super Duty 4WD Diesel

Description
Bilstein 5125 8″ Front, Rear Shocks For 2000-2004 Ford F-350 Super Duty 4WD Diesel

Bilstein 5125 8″ Front, Rear Shocks For 2000, 2001, 2002, 2003, 2004 Ford F-350 Super Duty 4WD Diesel

Part: 84056

Front Shock Specifications:

Collapsed Length (IN)17.91
Extended Length (IN)29.70
Collapsed Length (MM)455.0
Extended Length (MM)754.5
Compression @0.52m/s700
Rebound @0.52m/s2550
Finish Zinc Plated
Reservoir No
Body Design Smooth Body (Non-Coilover)
Body Diameter 46mm
Spring Seat Included No
Adjustable Damping Non-Adjustable
Replacement Mounting KitB4-KT1-Z236A00

made by Bilstein USA for SuperLift lift kits

  • Bilstein 5125 Series Shock Pack
  • 46mm monotube design ensures consistent, fade-free performance in all conditions
Include:
  • Front and Rear Shock Pack
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

BILSTEIN 5125, FOR THE ROCKY ROAD AHEAD.

The BILSTEIN 5125 series is perfect for lifted trucks and SUVs.

Due to their larger tires and heightened stance, lifted vehicles place extra demands on a shock absorber‘s damping ability. The 5125‘s monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the BILSTEIN 5125 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Patented digressive valving instantly reacts to changing surface conditions
  • OEM certified mounting hardware allows for easy installation
  • Zinc plated for resistance against harsh elements
  • Durable vulcanized neoprene rubber bushings
  • Made in the USA or Germany

Rear Shock Specifications:

Collapsed Length (IN)20.77
Extended Length (IN)34.92
Collapsed Length (MM)527.5
Extended Length (MM)887.0
Compression @0.52m/s700
Rebound @0.52m/s2550
FinishZinc Plated
ReservoirNo
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring Seat IncludedNo
Adjustable DampingNon-Adjustable
Replacement Mounting KitB4-KT1-Z236A00

INSTALLATION:

  • Installation time: 1-3 hours
  • Difficulty level: 2 of 5

Additional information

Weight 26 lbs
Dimensions 22.5 × 7 × 5.5 in
