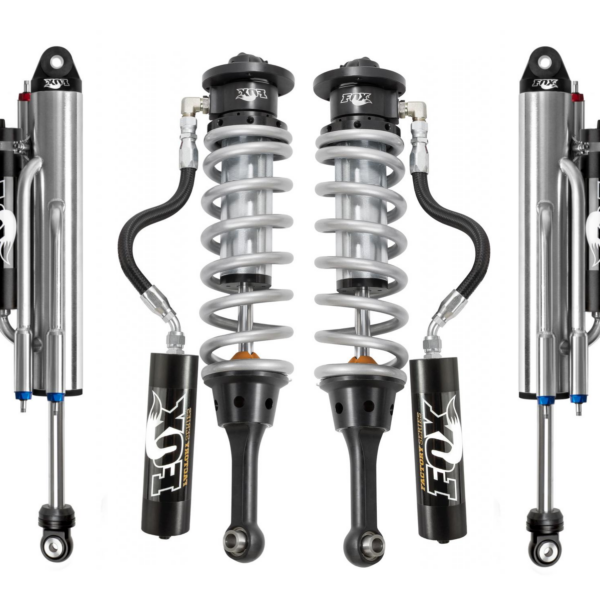

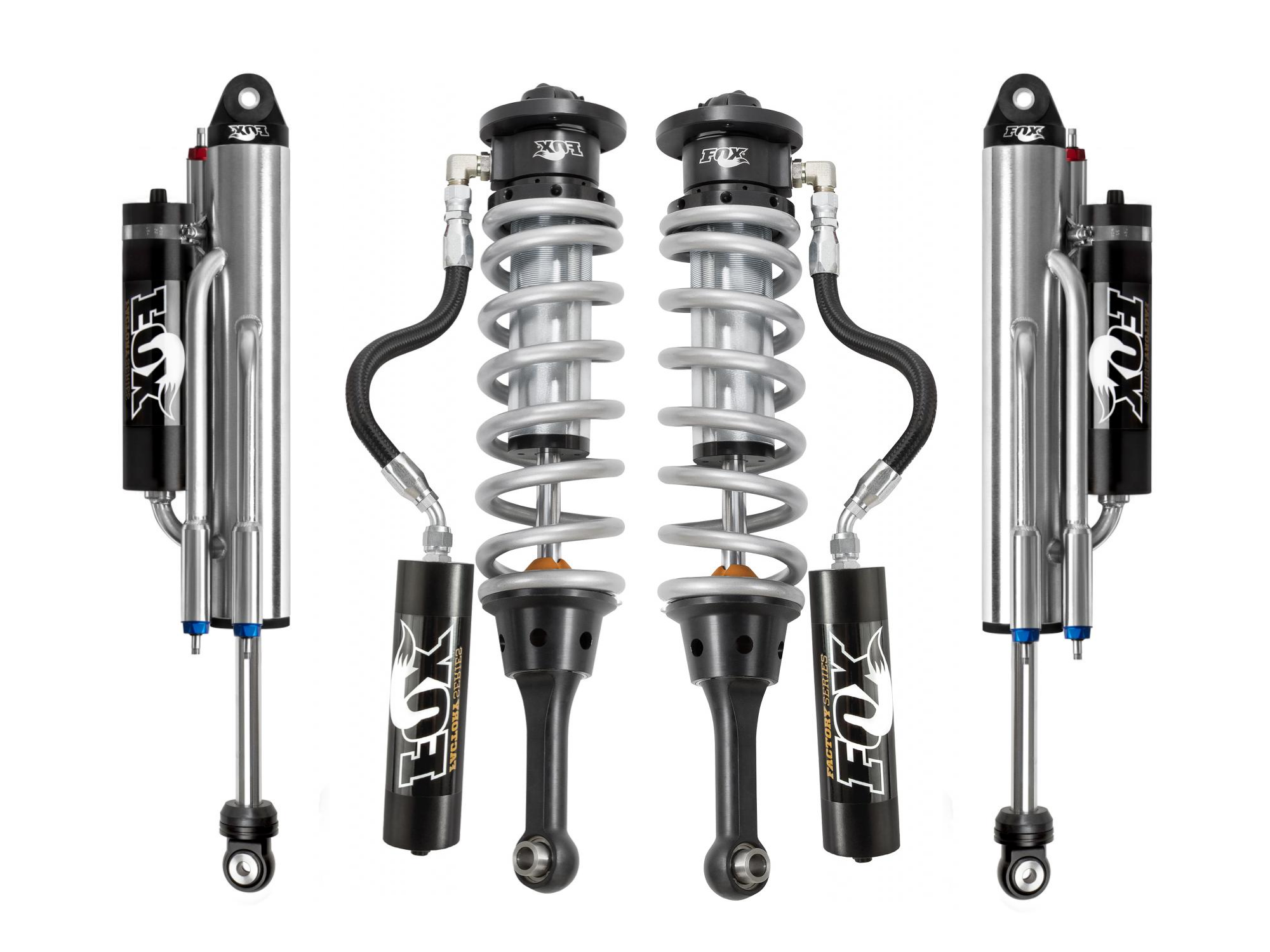

FOX 3.0 Factory Bypass Res 0-2 Lift Shocks 2010-2014 Ford SVT Raptor

FOX 3.0 Factory Bypass Res 0-2 Lift Shocks 2010-2014 Ford SVT Raptor

Part Number: 883-02-046

Summary: The FOX 3.0 Factory Series Internal Bypass Reservoir shocks are designed specifically for the 2010-2014 Ford SVT Raptor to maximize wheel travel and damping performance. Utilizing position-sensitive Internal Bypass technology, these shocks provide a plush, predictable ride during normal conditions while significantly ramping up damping force for extreme off-road use. By increasing oil capacity and providing 60 percent more damping area over stock SVT shocks, this system ensures superior heat management and fade resistance during sustained high-speed operation.

Features

• Internal Bypass: Position-sensitive damping technology provides a plush ride in the ride zone while increasing force at the end of the stroke to ensure controlled performance during extreme impacts.
• Remote Reservoir: Large 2.5-inch remote reservoirs with -10 hoses provide increased cooling capabilities to ensure consistent damping during high-speed, repeated cycling.
• Internal Valving: Race-bred valving and high-flow 6061-T6 aluminum pistons provide application-specific tuning to ensure maximized off-road performance.
• Adjustable Ride Height: Integrated coil springs allow for preload and ride height adjustments to ensure the vehicle is leveled and properly cleared for 0-2 inches of lift.
• Heavy-Duty Construction: Zinc-plated, honed seamless alloy bodies paired with 7/8-inch hard chrome-plated heat-treated alloy steel shafts provide maximum durability to ensure long-term reliability in harsh environments.

Technical Specifications

Fitment

• 2010-2014 Ford SVT Raptor
• Note: Designed to bolt right on to factory mounts.

What’s Included

• Includes Full Set (See Below)
• 2 Front Shocks (883-02-046)
• 2 Rear Shocks (883-02-047)
• Remote reservoir hoses and hardware

Why Choose This Product?

• Engineering Advantage: These shocks utilize the same Internal Bypass components found in race-winning Trophy Trucks, featuring Eibach springs, PTFE-lined spherical bearings, and high-temp Viton seals for professional-grade durability.
• Performance Benefit: Drivers experience a 60 percent increase in damping area compared to stock shocks, resulting in a vehicle that is more capable of handling aggressive terrain without sacrificing street comfort.

Frequently Asked Questions

Will these shocks lift my Ford Raptor?
The front shocks are designed for 0-2 inches of lift and include an adjustable coil spring to help level your vehicle right out of the box.

What is the benefit of the Internal Bypass technology?
Internal Bypass allows for position-sensitive damping, which means the shock is plush during normal driving but becomes significantly stiffer near the end of its travel to prevent bottoming out.

Are these shocks a direct fit?
Yes, these 3.0 Factory Series shocks are engineered to bolt directly onto the factory mounts of a 2010-2014 Ford SVT Raptor.
