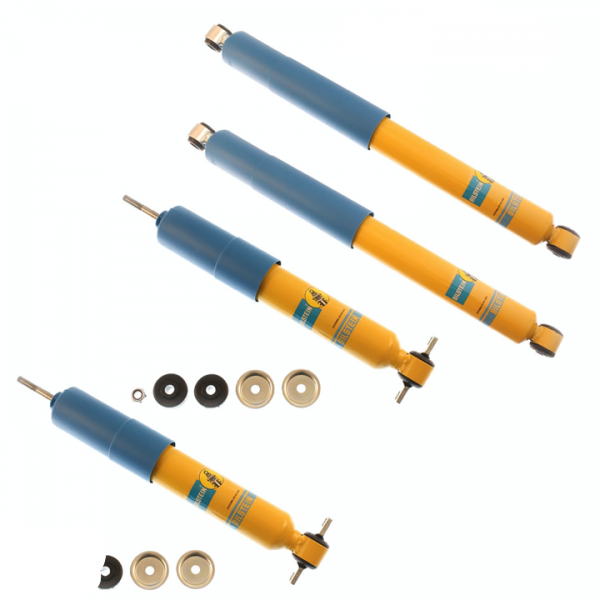

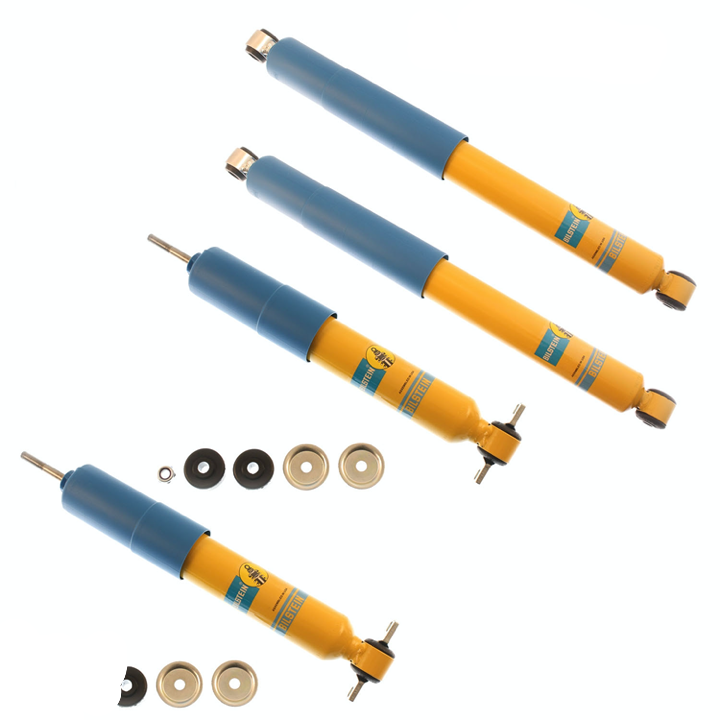

Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

Description
Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

98-’11 Ford Ranger RWD Bilstein 4600 0-3″ Front & 0-1″ Rear Lift Shocks

Important Front Shocks Fitment Notes:

• For Stock Height Vehicle or Vehicle with 0-3″ Spindle Lift
• Fits Ford Ranger RWD with front COIL Suspension Only

Will not fit 2011 Ranger Sport RWD

Lower control arm bolt spacing is 62 mm. The existing Motorcraft front shocks have two 8 mm threaded studs that are pressed into the lower shock bar.

Front Shocks:

Series: 4600

FRONT:
Extended Length (IN): 14.02 Inch
Compressed Length (IN): 9.8 Inch
Rod Diameter (IN): 1.81 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Bar Pin

Part Number: 24-196260

Front Shocks Fitment Notes:

• Fits Ford Ranger RWD with front COIL suspension only

Rear Shocks:

Series: 4600

REAR:
Extended Length (IN): 22.68 Inch
Compressed Length (IN): 14.21 Inch
Rod Diameter (IN): 1.81 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet

Part Number: 24-196277

Rear Shocks Fitment Notes:

• Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber

Fitment: 98-’11 Ford Ranger RWD

Includes 4 Shocks
