AirLift Rear Helper Spring Kit for 1983-2011 Ford Ranger 2WD/4WD
$428.99
Only 2 left in stock
AirLift Helper Spring Kit for 1983-2011 Ford Ranger 2WD/4WD
Part Number: 59516
Summary:
The AirLift Ride Control Helper Spring Kit is designed to mount between the leaf springs and the vehicle frame to provide up to 2000 pounds of leveling capacity. This rubber air spring system is air adjustable from 5 to 100 PSI to support variable loads and provide an adjustable spring rate. This kit is intended to supplement the leaf springs on 1983-2011 Ford Ranger models to address reduced suspension travel and load carrying capacity.
This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.
Features
- Leveling Capacity: Up to 2000 pounds of leveling capacity.
- Adjustability: Air adjustable pressure range from 5 to 100 PSI.
- Installation: Frame mount design with an estimated install time of 1 hour; includes illustrated instruction manual and quick-connecting air fittings.
Technical Specifications
| Specification | Value |
|---|---|
| Series | Ride Control â„¢ / SlamAir |
| System Type | Air Spring |
| Position | Rear (Mounts Between Leaf Springs And Vehicle Frame) |
| Material | Rubber |
| Maximum Pressure | 100 PSI |
| Load Capacity | 2000 Pounds |
| Color | Black |
Fitment
- 1983-2011 Ford Ranger (2WD / 4WD)

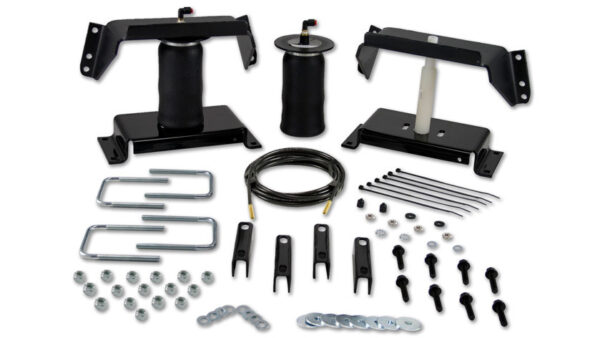

What’s Included
- Set of 2 Air Springs
- Brackets
- Air Lines
- Schrader Valve
- Fittings
- Alignment Tool
- Installation Hardware
Why This Product Exists
- Purpose: This product addresses the reduction of suspension travel and load carrying capacity by supplementing the vehicle’s leaf springs.
- Application: Used on 1983-2011 Ford Ranger 2WD and 4WD models to provide leveling support for variable loads.
Frequently Asked Questions
Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.
Is this product intended for towing?
This product provides leveling capacity for variable loads and supplements leaf springs; use for towing should follow vehicle manufacturer guidelines.
Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
| Weight | 32 lbs |
|---|---|
| Dimensions | 14.125 × 9.25 × 10.75 in |
| Brand | |
| Product Type | |
| Year | , , , , , , , , , , , , , , , , , , , , , , , , , , , , |
| Model | |
| Make |
