Fox Elite Series 2.5 Adjustable 2-3″ Front RR Coilovers For 2019-2026 Ford Ranger 2WD/4WD

Fox Elite Series 2.5 Adjustable 2-3 inches Front RR Coilovers For 2019-2026 Ford Ranger 2WD/4WD

Part Number: 883-06-156

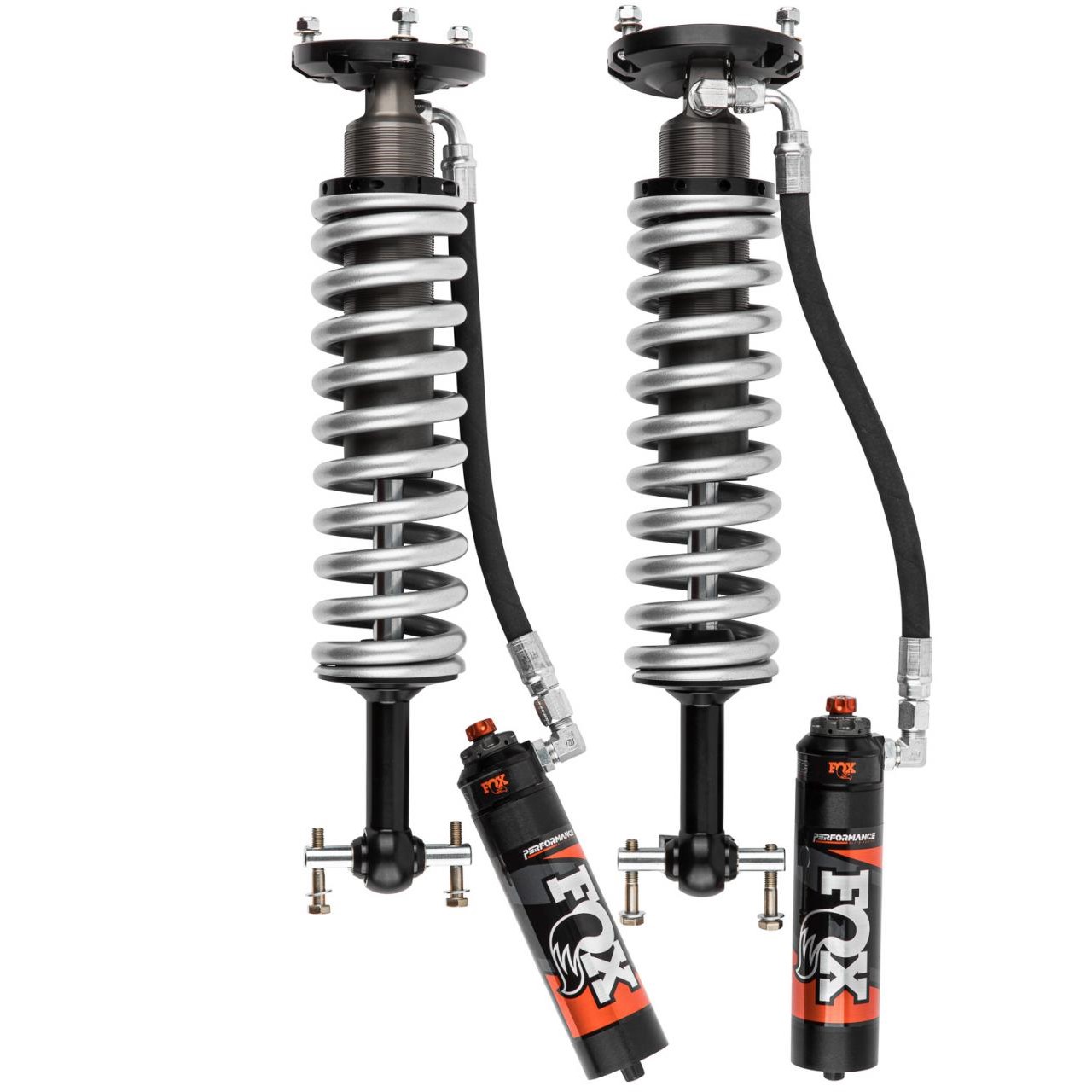

Summary: The FOX Performance Elite Series Coil-over Reservoir shocks are engineered to provide precise control and improved damping across any terrain for the Ford Ranger. Featuring an external reservoir and a 2.5-inch hard-anodized aluminum body, these coilovers are designed to manage heat and resist corrosion during rigorous use. This system allows for adjustable ride height and utilizes race-proven technology to enhance off-road performance while maintaining vehicle stability.

Features

• Dual Speed Compression (DSC) Adjuster: DSC – Dual Speed Compression provides user-tunable damping variables to ensure precise control for various load and terrain conditions.
• External Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased oil capacity and cooling to ensure fade resistance during sustained off-road operation.
• Aluminum Body: 2.5 inches Impact extruded and CNC machined 6061-T6 hard anodized aluminum body provides superior heat dissipation to ensure consistent performance and rust resistance.
• Adjustable Eibach® Springs: Application specific 3.0 Eibach® racing springs provide adjustable preload to ensure the vehicle achieves the desired ride height and leveling.
• High Flow Piston: 6061-T6 hard-anodized aluminum piston provides application-specific valving to ensure maximized damping performance.

Technical Specifications

Fitment

• 2019-2026 Ford Ranger
• Note: Fits U.S. Models Only | Includes Universal Bracket.

What’s Included

• Sold Individually
• Universal Bracket

Why Choose This Product?

• Engineering Advantage: The combination of a 2.5-inch impact-extruded aluminum body and an external reservoir allows for significantly higher heat capacity and durability compared to standard shock designs.
• Performance Benefit: Drivers gain the ability to fine-tune their suspension via the Dual Speed Compression (DSC) adjuster, allowing for a customized balance between comfort and aggressive off-road handling.

Frequently Asked Questions

What is the benefit of the DSC adjuster?
The Dual Speed Compression (DSC) adjuster allows for manual tuning of the shock’s damping, providing precise control over how the suspension reacts to different speeds and impacts.

Can I adjust the ride height with these coilovers?
Yes, these coilovers feature an adjustable ride height preload ring and 3.0 Eibach® racing springs, allowing you to level the vehicle and set the height between 2-3 inches.

What materials are used in the construction of the shock body?
The shock body is constructed from 2.5 inches impact-extruded and CNC-machined 6061-T6 hard-anodized aluminum to resist rust and improve heat dissipation.
