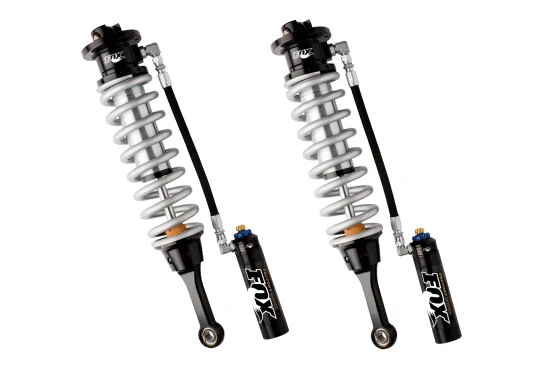

Zone offroad 0-2″ Front Lift Coilover Shocks for 2010-2014 Ford F-150 SVT Raptop 4WD with 3.0 Reservoir Adjuster

Sale!
Zone offroad 0-2 Front Lift Coilover Shocks for 2010-2014 Ford F-150 SVT Raptop 4WD with 3.0 Reservoir Adjuster
Zone offroad 0-2 Front Lift Coilover Shocks for 2010-2014 Ford F-150 SVT Raptop 4WD with 3.0 Reservoir Adjuster

Description
Zone offroad 0-2″ Front Lift Coilover Shocks for 2010-2014 Ford F-150 SVT Raptop 4WD with 3.0 Reservoir Adjuster

Zone offroad 0-2″ Front Lift Coilover Shocks for 2010, 2011, 2012, 2013, 2014 Ford F-150 SVT Raptop 4WD with 3.0 Reservoir Adjuster

Part: FOX88306046

Includes 2 Front Coilover Lift Shocks

Note: Fox Factory Race Series

Fox 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and add 60% more damping area over stock FOX SVT shocks. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The Factory Race Series 3.0 Coil-over Internal Bypass shocks utilize all of the same components from our race winning Trophy Truck shocks with Eibach® springs, stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.

Features:

  • Body: 3.0″ Smooth bore and honed seamless alloy body
  • Body Plating: Zinc-plated for long lasting finish
  • Reservoir: 2.5″ Smooth bore and honed seamless alloy reservoir
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Spring: Application specific, adjustable 3.625 Eibach® racing springs
  • Shaft: 7/8″ 17-4 H900 stainless steel hard-chrome plated
  • Piston: 6061-T6 hard-anodized, high flow aluminum piston
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: PTFE-lined, heat-treated, alloy steel spherical
  • Mounting: Direct replacement of OEM shock package
  • Adjustments

Specifications:

Body Material Steel
Reservoir Remote
Is Tunable Yes
Type Coil-Overs
Shock Diameter 3″
Collapsed Length 18.86in
Extended Length 25.33in
Top Mount Type TM
Bottom Mount Type Eyelet

Additional information

Weight 60 lbs
Dimensions 10 × 8 × 8 in
