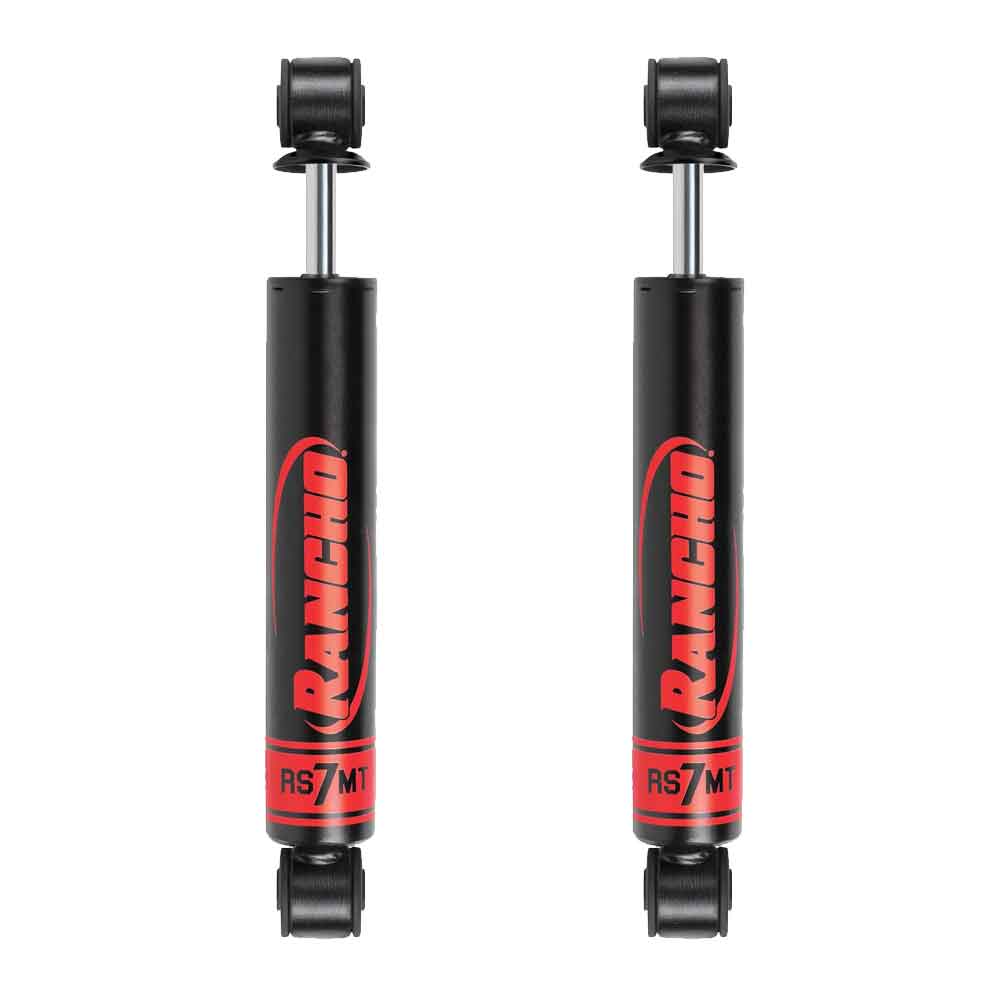

Rancho RS7MT 5-6″ Rear Lift Shocks for 2000-2009 Hummer H2
$156.88
In stock
Rancho RS7MT 5-6″ Rear Lift Shocks for 2000-2009 Hummer H2
Part Number: RS77056
Summary: The Rancho RS7MT series is engineered for high-performance handling and rapid heat dissipation on the Hummer H2. Utilizing a sophisticated monotube design with a nitrogen gas charge, these shocks provide the precise damping required for vehicles with 5-6 inches of rear lift. This configuration eliminates aeration and foaming, ensuring consistent control whether navigating technical off-road terrain or maintaining stability on the highway.
Features
- Monotube Construction: A high-pressure nitrogen gas charge provides immediate response to surface changes to ensure maximum tire-to-road contact.
- Internal Floating Piston: The physical separation of gas and oil provides fade-free performance to ensure consistent damping during aggressive driving.
- Hardened Nitro-Coated Rod: The heavy-duty piston rod provides superior corrosion resistance to ensure long-term seal integrity in harsh environments.
- Application-Specific Valving: Custom-tuned shim stacks provide optimized rebound and compression to ensure a controlled ride for lifted H2 platforms.
Technical Specifications
| Specification | Value |
|---|---|
| Series | RS7MT |
| Position | Rear |
| Extended Length | 31.61 inches |
| Compressed Length | 20.16 inches |
| Travel | 11.45 inches |
| Upper Mount | LS47 |
| Lower Mount | OE-Style Loop |
Fitment
- 2003-2009 Hummer H2
- Note: Configured for 5-6 inches of rear lift. Verified for Hummer H2 models within the 2003-2009 range (production start).
What’s Included
- Includes 2 Shocks (Pair)
- Installation Hardware and Bushings
- Protective Dust Boots
Why Choose This Product?
- Engineering Advantage: Rancho’s monotube architecture offers faster heat dissipation compared to traditional twin-tube shocks, preventing performance drop-off during heavy use.
- Performance Benefit: Drivers will experience a significant reduction in body roll and “float,” resulting in a more planted and confident feel at the steering wheel.
Related Products
RS90000XL (Rear):
Rancho RS90000XL 5-6" Rear Lift Shocks for 2000-2009 Hummer H2
RS90000XL (Front):
Rancho RS90000XL 5-6" Front Lift Shocks for 2000-2009 Hummer H2
RS90000XL (Kit):
Rancho RS90000XL 5-6" Lift Shocks for 2000-2009 Hummer H2
Frequently Asked Questions
Will these shocks lift my Hummer H2?
No, these shocks do not create lift. They are specifically lengthened and valved to work with vehicles that have already been modified with a 5-6 inch rear lift kit.
What is the benefit of the RS7MT monotube design?
The monotube design uses a single cylinder and a floating piston to keep the oil and nitrogen separate, which prevents the oil from foaming (aeration) and ensures the shock doesn’t lose its damping power under stress.
Are these shocks sold as a pair?
Yes, this specific SKU (2xRS77056_n737) includes a pair of two (2) rear shocks for a complete axle installation.
