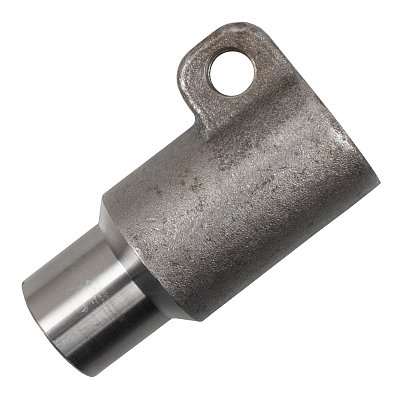

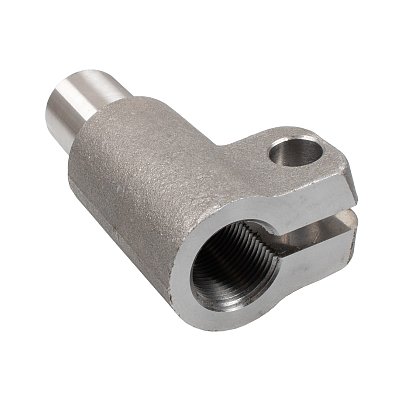

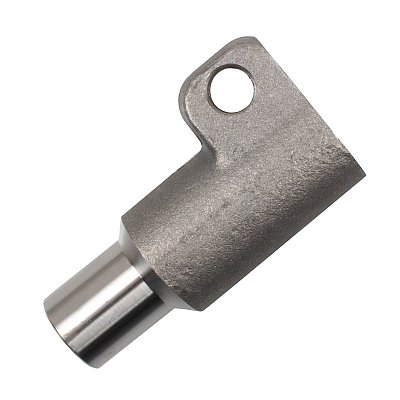

Synergy Forged Weld-In Tube Adapter 7/8-18 for 1.5″ x .250″ DOM Tube for 2007-2018 Jeep Wrangler JK
$862.00
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Synergy Forged Weld-In Tube Adapter 7/8-18 for 1.5″ x .250″ DOM Tube for 2007-2018 Jeep Wrangler JK
Part: Syn_3621-0802
Fitment:
Part # Useable Thread Size For Tube ID (Inches)
3621-0701 7/8″ – 18 UNF-2B Left Hand Thread 1.125″
3621-0801 1″ – 14 UNS-2B Left Hand Thread 1.00″
3621-0802 1″ – 14 UNS-2B Left Hand Thread 1.125″
3621-1001 1-1/4″ – 12 UNF-2B Left Hand Thread 1.375″
3621-1002 1-1/4″ – 12 UNF-2B Left Hand ID Thread 1.50″Click here for Complete Forged Pinch Bolt Assemblies WITH Double Adjuster Sleeves
Specifications:
Part # A B C D E Thread Length
3621-0701 1.125″ 3.50″ 2.50″ 1.56″ 2.28″ 1.30″
3621-0801 1.00″ 4.02″ 2.77″ 1.56″ 2.28″ 1.50″
3621-0802 1.125″ 4.13″ 2.88″ 1.56″ 2.28″ 1.88″
3621-1001 1.375″ 4.25″ 3.00″ 1.81″ 2.56″ 1.88″
3621-1002 1.50″ 4.25″ 3.00″ 2.00″ 2.70″ 1.88″
Benefits:
Synergy Pinch Bolt Assembly eliminates the need for jam nuts, preventing suspension or steering components from coming loose
Tube adapter seals off the link from water or other debris entering the inside of the tube, increasing the longevity of your components
Ideal for fabricating bent suspension links or adjustable bars with one rod end
Features:
Tube adapters are forged from high strength SAE AISI 1045 steel
Versatile weld-on application
Heavy duty grade 8 hardware
Includes:

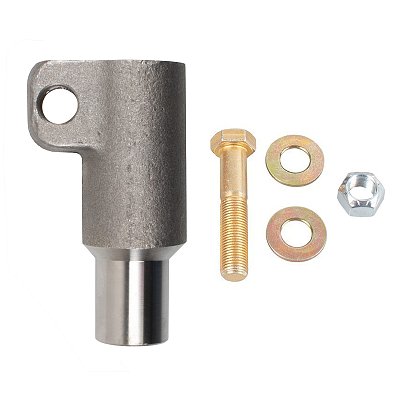

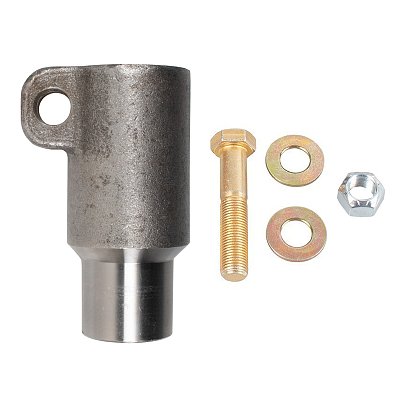

(1) Forged Pinch Bolt Tube Adapter
(1) Pinch Bolt Hardware Kit
Notes:
All Synergy Double Adjusters utilize and internal left hand thread compatible with all Synergy left hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
Replacement hardware available with part number PINCHBOLT-HDW-DOUBLE
We recommend all welding be done by an experienced welder / fabricator
More information: www.p65warnings.ca.gov
