RCD 3″ Suspension system with Bilstein 5100 for Jeep Wrangler TJ 1997-2006

Description
RCD 3″ Suspension system with Bilstein 5100 for Jeep Wrangler TJ 1997-2006

RCD 3″ Lift Kit with Bilstein 5100 for Jeep Wrangler TJ 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

Part: 10-45397

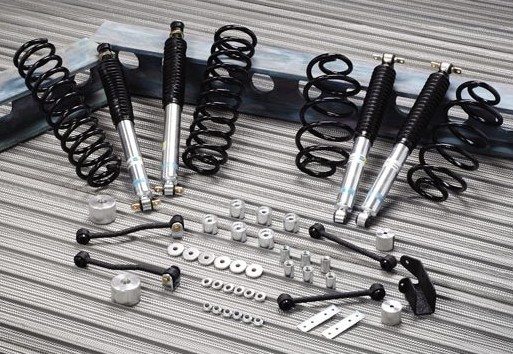

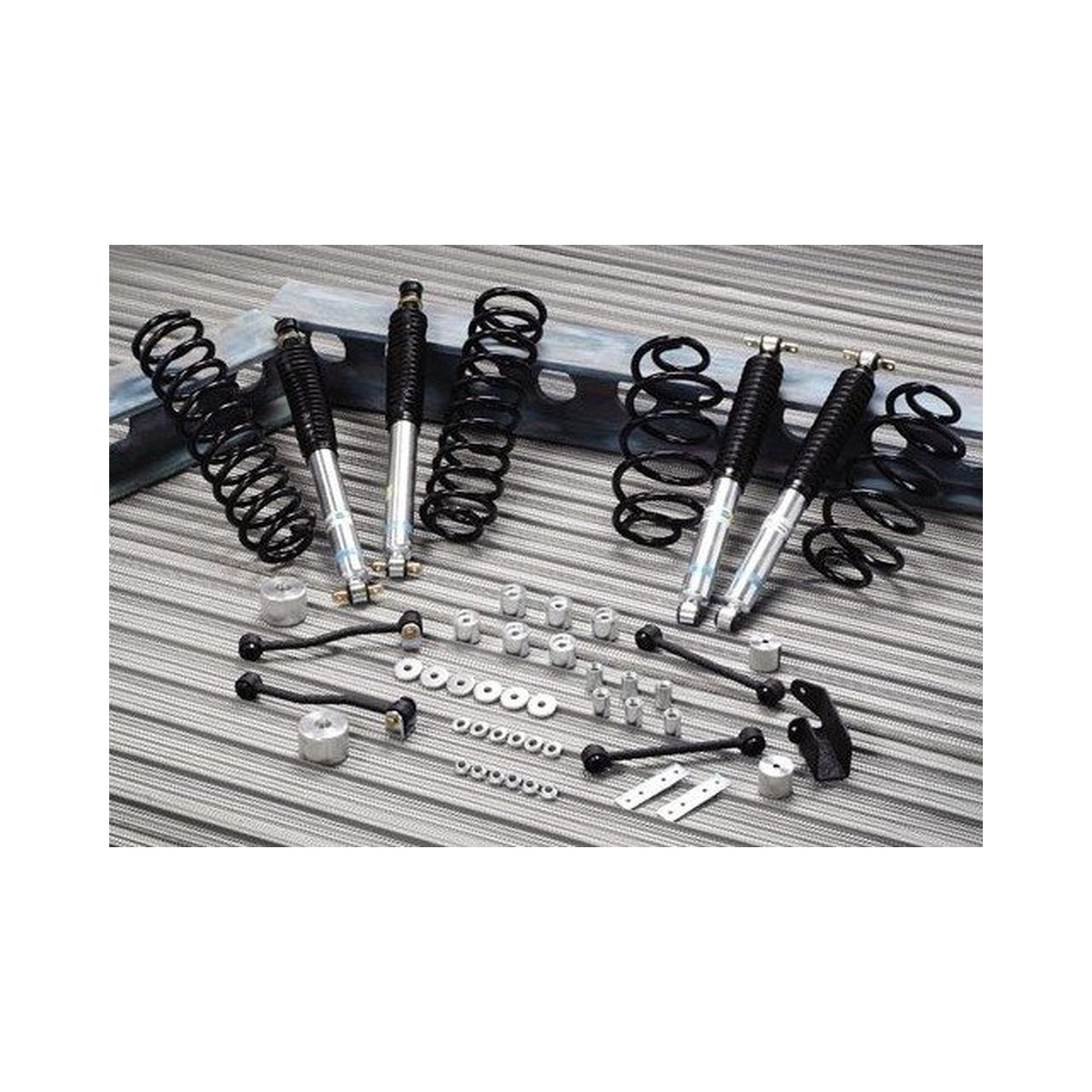

The RCD 3″ Suspension system / Lift Kit with Bilstein 5100 is a comprehensive upgrade for Jeep Wrangler TJ 1997-2006 models with 4WD. The kit includes 3″ front and rear lift coils, front and rear Bilstein 5100 series shocks, a front bump stop pad, a rear track bar bracket, a rear bump stop extension, a shifter drop bracket, a transfer case spacer (compatible with both old and new styles), a conical spacer with a 1/2″ inner diameter, a front sway bar link, a sway bar mount bracket, a rear sway bar link, a brake line hose support, and a complete hardware pack. The kit also comes with detailed installation instructions.

This lift kit will raise your Jeep Wrangler TJ by 3 inches, and it is compatible with tire sizes up to 31″ x 10.5″ without any necessary modifications. If you choose to install larger 33″ x 10.5″ tires, some minor fender or bumper trimming may be required. The kit is also compatible with 15″ x 8″ wheels with 3.625″ backspacing.

The part number for the RCD Suspension kit is 10-45397, and it is divided into four box parts: 10-45397-1 for the front coil springs, 10-45397-2 for the rear coil springs, 10-45397-3 for the Bilstein 5100 series shock absorbers, and 10-45397-4 for the main kit. The kit is designed specifically for Jeep Wrangler TJ models from 1997 to 2006.
