Rock Krawler TJ 3.5″ X Factor Stg 1 Short Arm Lift Kit w/ 2.25 RRD Shocks 1997-2006 Wrangler

Description
Rock Krawler TJ 3.5″ X Factor Stg 1 Short Arm Lift Kit w/ 2.25 RRD Shocks 1997-2006 Wrangler

Rock Krawler TJ 3.5″ X Factor Stg 1 Short Arm Lift Kit w/ 2.25 RRD Shocks 1997-2006 Jeep Wrangler TJ

Part: TJ35XFSA-S1

3.5 Inch Lift Kit with Remote Reservoir X Factor System Stg 2 97-06 Wrangler TJ
System Benefits:

• Complete Bolt In System
• Excellent Highway Ride and Handling
• Improved Off-Road Ability
• Caster Adjustability Through Front Lower Control Arms
• Pinion Angle Correcting Double Adjustable Rear Upper Arms
• In Vehicle Adjustable Front Upper Arms
• Front Pro Sway Bar Disconnects
• Long Travel Functional Multi Rate Coil Springs
• Sport Tuned 2.0 RRD Spec’d Prodigy Shocks
• Allows for up to 33 inch Tires (OEM Fenders)
• Allows for up to 35 inch Tires (Flat Fenders)
• Allows for up to 37 inch Tires (High Line Fenders)
• Abuse Proof Lifetime Warranty on All Hard Parts
• Upgradeable to Any Other System

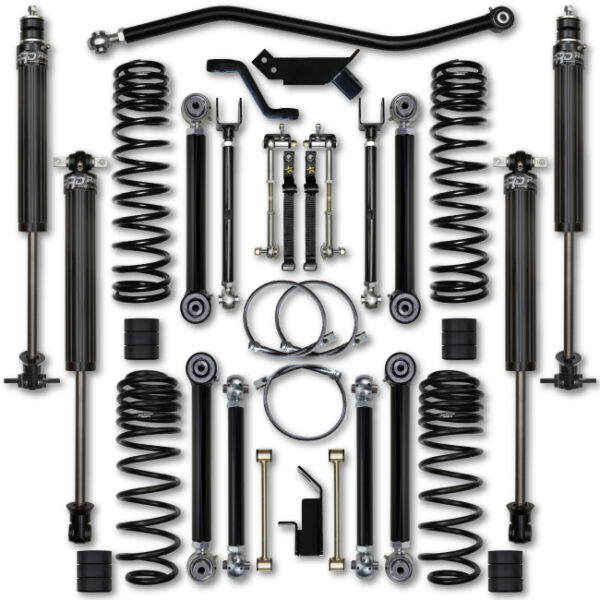

System Includes:

• (4) Long travel functional multi rate coil springs
• (4) 2.0 RRD Spec’d Prodigy shocks
• (1) Front high misalignment/adjustable track bar
• (4) Adjustable lower control arms
• (4) Double adjustable upper control arms
• (2) Pro adjustable front sway bar disconnects
• (3) Long travel stainless steel brake lines
• (2) Rear extended sway bar links
• (2) Front sway bar link straps
• (1) Rear track bar relocation bracket made from 3/16 inch laser cut steel
• Includes all hardware and detailed instructions.

Notes:
Requires a transfer case drop kit, or a C.V. Driveshaft Conversion, or a SYE with C.V. Driveshaft Conversion
2003 TJ’s equipped with 4 speed automatics will require removal of the factory automatic transmission skid plate if so equipped to allow for proper front driveshaft travel
Typical wheel fitment for a 12.5 wide tire is a 15 x 8 with 3 3/4 inch of back spacing.

YouTube video if available: https://youtu.be/4m-7yvkqkvk

Country of Origin: USA

Lift Height (if applicable): 3.5 Inch

Location (if available): Front and Rear

Fitment Notes (if applicable): *Added Track Bar Drop Bracket and Drop Pitman Arm To The Systems

Shocks Included (if applicable):

Remote Reservoirs Included (if applicable):

Coilovers Included (if applicable):

Recommended Tire Size (if applicable): 33/35/37/38

Kit Components (if applicable):

RK02001 Triple Rate Coil Springs 1
RK00215 Triple Rate Coil Springs 1
RK05194 Front Track Bar 1
RK00707 Adjustable Lower Control Arms for 2 Inch to 4 Inch of Lift (Front or Rear) 2
RK02323 Double Adjustable Rear Upper Control Arms 2 Inch to 4 Inch of Lift 1
RK00124 Adjustable Upper Control Arms 2 Inch to 4 Inch of Lift 1
RK05014 XFSA Kit box 1
RRD02050 2.0 Inch Emulsion Shock for 3.5 Inch Lift – (8.5 Inch Travel) 2
RRD02051 2.0 Inch Emulsion Shock for 3.5 Inch Lift – Rear (8.5 Inch Travel) 2
RK03415 3 Inch Billet Aluminum Stackable Bump Stop 2

Vehicle Fuel Type (if applicable):
