Bilstein 5100 with OME 2-2.5″ Front Lift Assembled Coilovers and 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470
Sale!
Description
Bilstein 5100 with OME 2-2.5″ Front Lift Assembled Coilovers and 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470
Bilstein/OME 2-2.5″ Front Lift Assembled Coilovers/Bilstein 5100 0-2″ Rear Lift Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470
Part: BCOLX03_2x33-313146

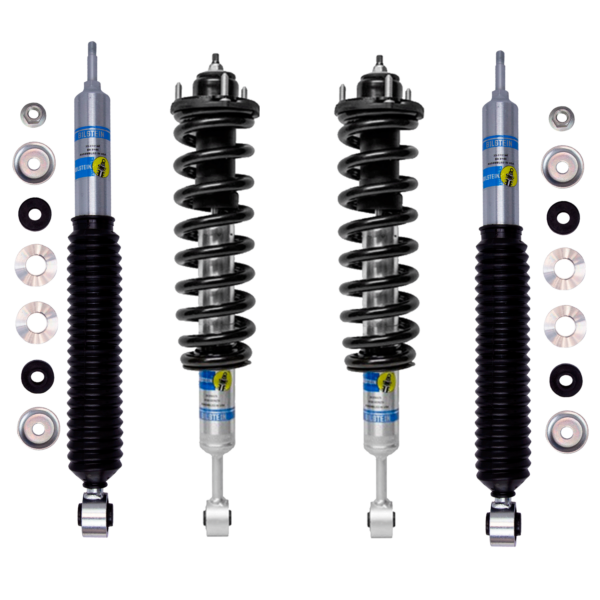

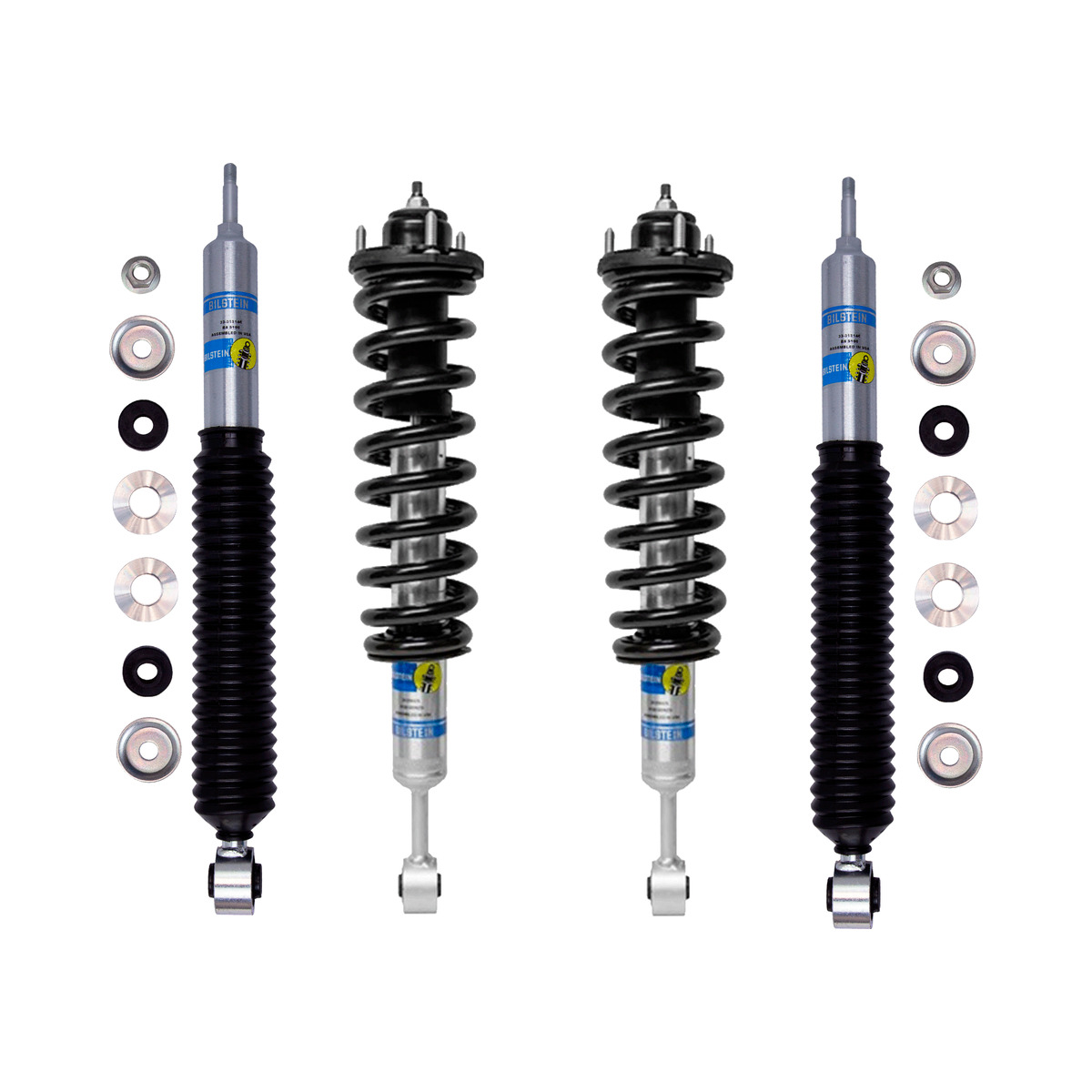

Includes 2 Front and 2 Rear Shocks
Suspension Lift Kit featuring Bilstein front ride height adjustable shocks is being assembled with ARB/OME coil springs.
Front Shocks:
Front 24-324359 (old: 24-239370) height adjustable 5100 shocks assembled with OME coils (choose from drop down)
Extended Length: 22.56″
Compressed Length: 17.03″
Compressed Length: 17.03″
Notes:
Without X-REAS Suspension
Coilovers are assembled on the 1st clip. Setting them higher than 1st clip will give you too much lift and most likely damage the suspension.
Rear Shocks:
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Collapsed Length (IN): 14.91
Extended Length (IN): 23.5
Collapsed Length (MM): 378.8
Extended Length (MM): 597.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z103A00
Notes:
- Requires Rear Coil Spring Conversion
3 reviews for Bilstein 5100 with OME 2-2.5″ Front Lift Assembled Coilovers and 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
Related products
-
Bilstein 6112 Series 1.9-3.4″ Leveling Kit For 2003-2009 Lexus GX470 4WD
(0 reviews)Base Price: $836.00 Select options -
Chris Acker –
Perfect balance of value and quality for my needs. The 1.5” lift front along with very slight height sensor adjustment to existing OEM rear airbags was perfect for our 2005 GX.470 with 18” GX460 wheels and highway tires. Ultimately, I was trying to replace existing “fake” OEM shocks, yet keep rear airbags (they were newer and working good) and keep a nice ride for a daily driver, while giving it an overall “leveling”. Looks great and drives great too, especially compared to the worn existing. For me, it’s the right amount of firm….not too much, definitely not too cushy.
Mason –
Best kit for the daily driver, once in a while weekend funhaver without burning a hole in your wallet. Rides firm on road, and gives cushion off road.
John Newhouser –
I installed this kit on our 2008 GX470 with 155K miles. I had recently replaced the rear air bags and wanted to keep the height control. The vehicle is equipped with KDSS and it had the ‘KDSS lean’ with the right side +1/2″-3/4″. No shock leakage was apparent but you could tell it was time. The rear shocks went on easily. For the front I watched several videos and used the method of disconnecting the upper control arm at the ball joint and disconnecting the KDSS sway bar at the lower control arm (and also at the frame on the side I was working on (also loosened the sway bar bolts on the opposite side frame). It took some creative bar clamp and jack use to pull everything back together to get the sway bar reattached but in the end the stance looks great (+2″ on front) and the ride is excellent. A bonus is that the ‘lean’ somehow was corrected as well. Highly recommend this kit.
