Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016-2024 Nissan Titan XD

Bilstein B8 6100 Assembled Front 0-2 Lift Coilovers and 0-1 Rear Lift Shocks for 2016-2023 Nissan Titan XD
Bilstein B8 6100 0-2.2 inch Front Lift Adjustable Shocks for 2017-2020 - c ring positions
Bilstein B8 6100 Assembled Front 0-2 Lift Coilovers and 0-1 Rear Lift Shocks for 2016-2023 Nissan Titan XD
Bilstein B8 6100 0-2.2 inch Front Lift Adjustable Shocks for 2017-2020 - c ring positions

Description

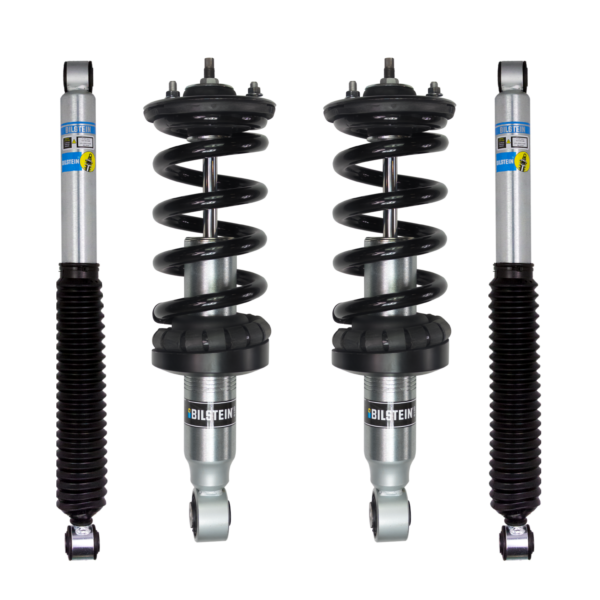

Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016-2024 Nissan Titan XD

Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Titan XD Only

Part: 6100BILXD16

Includes 2 Shocks (24-322669) and 2 coils, assembled with new top mounts, bushings, hardware. Assembly may take 3-7 days.

Will not work on other sub-models of Nissan, if you have NON XD Nissan then you would need a different assembly.

Product Description

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-2.5 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

  • Collapsed Length (IN): 14.42
  • Extended Length (IN): 18.43
  • Collapsed Length (MM): 366.2
  • Extended Length (MM): 468.0
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Non-Adjustable

Fits:

  • Nissan Titan XD 2WD 2016-2019 (Fits models with V8 engine)
  • Nissan Titan XD 4WD 2016-2021

Download Installation Instructions for Bilstein B8 6100 0-2″ Front Lift Adjustable Shocks for 2016-2021 Nissan Titan

REAR SHOCKS:

Collapsed Length (IN)16.20
Extended Length (IN)25.81
Collapsed Length (MM)411.5
Extended Length (MM)655.7
FinishZinc Plated
ReservoirNo
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring Seat IncludedNo
Adjustable DampingNon-Adjustable

Additional information

Weight 45 lbs
Dimensions 26.01 × 12.01 × 7.51 in
