OME Dakar 1.2″ Rear Lift Leaf Springs for 2005-2017 Nissan Xterra CS061R

Description
OME Dakar 1.2″ Rear Lift Leaf Springs for 2005-2017 Nissan Xterra CS061R

N- OME CS061R
Fits Nissan Xterra 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

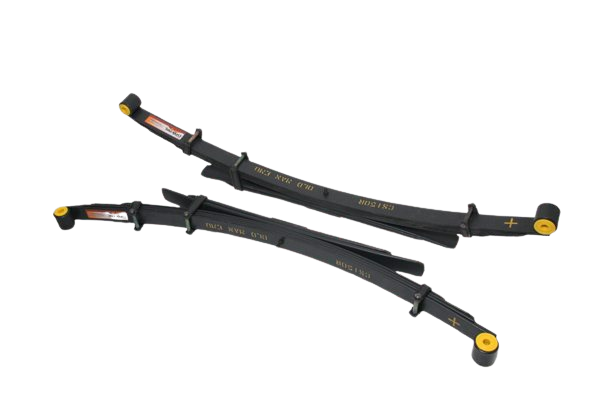

Old Man Emu CS061R Dakar Rear Leaf Springs.

– Included:
– (2) Old Man Emu CS061R Dakar Leaf Packs- Provide 1.5″ to 2″ Rear Lift (Stock load to 150 lbs extra weight)
*Choose from complete spring bushing pack below- SB99 bushings to be used with stock and lift shackles. SB100 to be used with OME GS15 shackles only
**Requires new longer rear Ubolts, Not Included**

OME Dakar leaf springs feature:

• Draw Tapered & Diamond Cut Leaves: Ensure the load is progressively distributed over a larger surface area, reducing the high stresses that develop at leaf ends. This provides increased ride quality and protection against leaf breakage, significantly increasing the spring life.
• Bolt Clamps & Liners: The leaf clamps are bolted to allow installation of anti squeak nylon liners.
• Fully Scragged & Load Tested: Scragging ensures the spring takes a permanent ‘set’ which reduces the risk of sagging. Load testing ensures the spring meets the required specification.
• Graphite Coating: To further reduce the friction between the spring leaves & friction pads.
• Military Wrap: Designed to provide added safety.
• Anti Friction Pads: Regreasable nylon interleaf liners reduce friction at the leaf tips where the load is the greatest.
• Flat Axle Seat Area: Allows a positive, safe axle mount reducing spring stress & increasing spring life.
• Shot Peening: The tension side of all leaves is shot peened to reduce spring stress. This process can double the life of a spring.
• Two-stage Leaf Pack: Featured on most rear springs for optimum comfort. When unladen the vehicle is largely riding on the primary stage, with the secondary stage providing additional support when a heavy load is added.
