Zone Offroad 6″ Upper Strut Mounts Lift Kit 2013-2018 Ram 1500 4WD

Sale!
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2018 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2018 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD
Zone Offroad 6" Upper Strut Mounts Lift Kit 2013-2017 Dodge Ram 1500 4WD

Description
Zone Offroad 6″ Upper Strut Mounts Lift Kit 2013-2018 Ram 1500 4WD

Zone Offroad 6″ Upper Strut Mounts Lift Kit 2013, 2014, 2015, 2016, 2017, 2018 Ram 1500 4WD

Part: D40/D41

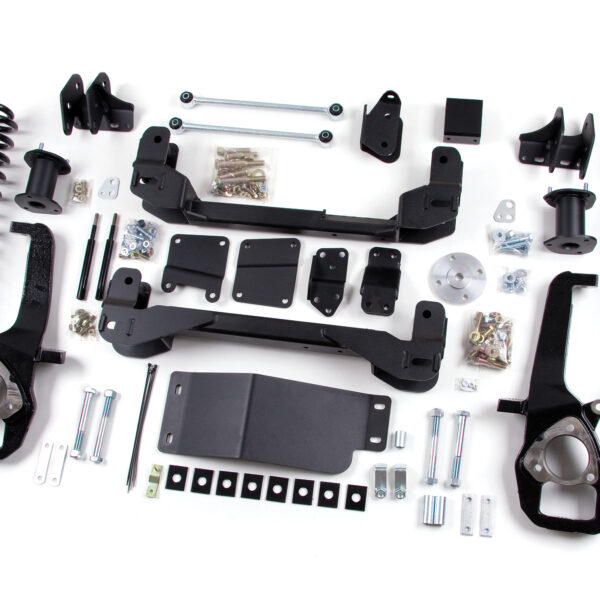

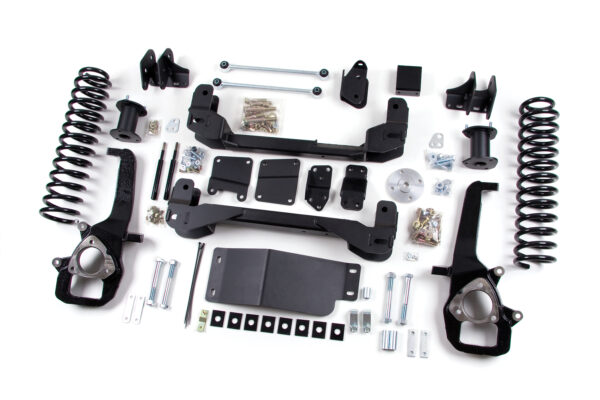

The main components of the Zone Offroad 6″ Suspension Lift Kit System are front and rear crossmembers, strut spacers, and sway bar links that work together with the new extended steering knuckles and replacements tie rod ends. These components are designed to maintain proper handling characteristics and work with the factory traction control system. Unique to this system from the 09-11 models is an all new differential relocation system specifically designed for 2012+ front differential housing. A differential skid plate is included for added strength and protection for trips off the beaten path.

Since many of the vehicles tested by Zone Offroad had a significant tail high stance from the factory this 6″ lift kit system comes standard with 3″ rear coil springs to help level the vehicle. Zone Offroad also offers a 5″ rear lift depending on your desired stance. It’s best to measure your truck before ordering to determine how much rear lift is needed to give your truck the attitude you intend to. Both the 3 and 5 inch rear lift systems include upper control arm relocation brackets to avoid unwanted pinion movement under load.

Make your Ram 1500 4WD stand out with a brand new, quality, yet affordable 6″ suspension lift from Zone Offroad and be glad you did.

Featured Technology & Benefits

  • Front top strut spacer and preload spacer
  • Maintains handling and ride charateristics and works with factory stability control
  • 3″ or 5″ rear lift option
  • Differential skid plate included
  • CNC machined steering knuckles

Important Notes!

  • Will not fit Mega Cab models.
  • Not recommended for AWD models.
  • Will not fit adjustable air suspension equipped models
  • These trucks are typically between 1″ and 3″ tail high from the factory. Please measure your trucks factory ride heights first and order the appropriate rear lift height.
  • TRX models will achieve approximately 1″ of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4″ lift system for about 5″ of lift or replace the TRX struts with standard struts for use with this system.

This product fits the following applications:

  • 2014 Ram 1500 4WD Diesel
  • 2015 Ram 1500 4WD Diesel
  • 2016 Ram 1500 4WD Diesel
  • 2017 Ram 1500 4WD Diesel
  • 2018 Ram 1500 4WD Diesel
  • 2013 Ram 1500 4WD Gas
  • 2014 Ram 1500 4WD Gas
  • 2015 Ram 1500 4WD Gas
  • 2016 Ram 1500 4WD Gas
  • 2017 Ram 1500 4WD Gas
  • 2018 Ram 1500 4WD Gas

Quick Specs

  • Front Lift Height: 6″
  • Front Lift Method: Upper Strut Mounts
  • Rear Lift Height: 3″ / 5″
  • Rear Lift Method: Coil Springs
  • Install Time Hrs: 8-10
  • Difficulty Level 1-5: 3
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5″
  • Max Tire Size: 37×12.50
  • Wheel Size: 18×9
  • Back Spacing: 5″
  • Max Tire Size: 37×12.50
  • Wheel Size: 20×9
  • Back Spacing: 5″
  • Max Tire Size: 37×12.50

Additional information

Weight 100 lbs
Dimensions 35 × 12 × 10 in
